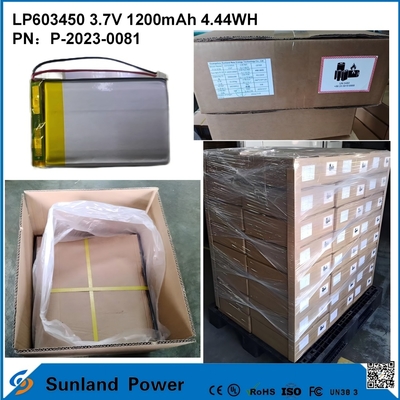

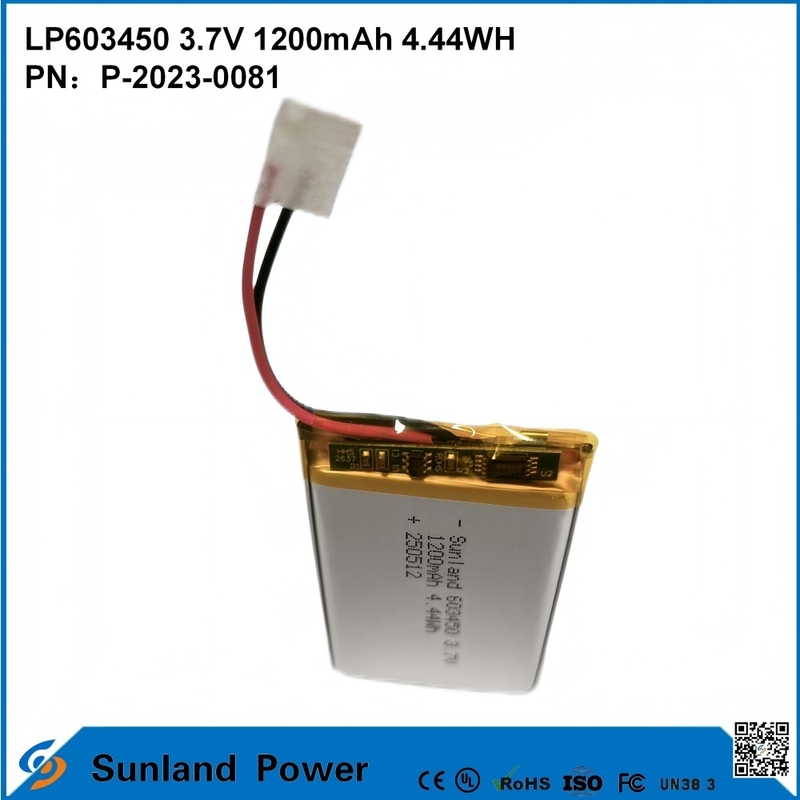

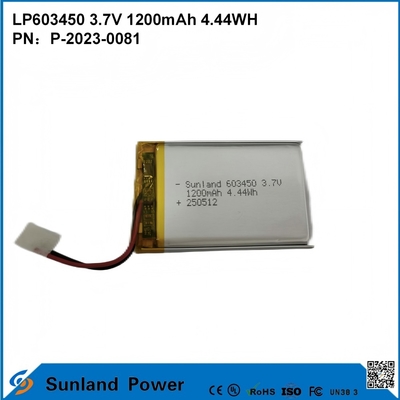

GP603450 1200mAh 3.7V BATTERY
Product Details:
| Place of Origin: | GUANGZHOU CHINA |
| Brand Name: | Sunland |
| Certification: | UN38.3 MSDS |
| Model Number: | P-2023-0081 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton with protective liner |
| Delivery Time: | Negotiable |
| Supply Ability: | Negotiable |
|
Detail Information |
|||
| Highlight: | 1200mAh 3.7V LiSOCl2 battery,3.7V lithium thionyl chloride battery,1200mAh LiSOCl2 battery with warranty |
||
|---|---|---|---|
Product Description
GP603450 1200mAh 3.7V BATTERY
Basic Performance
| No. |
Item
|
Specification
|
Note |
| 1 |
Rated Capacity
|
1200mAh |
0.2C discharge
|
| 2 | Nominal Capacity | 1250 mAh |
0.2C discharge
|
| 3 |
Min. Capacity
|
1200 mAh |
0.2C discharge
|
| 4 | Weight | ≈ 22g | |
| 5 |
Initial Impedance
|
≤ 180mΩ |
3.7V AC 1KHz measured
|
| 6 |
Normal Voltage
|
3.7 V | |
| 7 |
Initial Voltage
|
≥3.8V | |
| 8 | Limited Charge Voltage | 4.2 V | Voltage of CC charge to CV charge |
| 9 | Standard Charging Method |
0.2C CC current charge to 4.2V, then CV charge till current declines to 0.01C |
|
| 10 |
Cut-off Voltage
|
2.75 V | Not equal to Over-discharge Protection Voltage |
| 11 | Standard Charging Current | 240mA (0.2C) |
CC charge to 4.2 V, then CV charge till current declines to less than 0.01C
|
| 12 | Standard Charging Time | 6hours | |
| 13 | Rapid Charging Current 快速充电电流 | 1200mA (1C) | |
| 14 | Rapid Charging Time | 约2hours | |
| 15 |
Standard Discharging Current
|
240mA (0.2C) | CC discharge to 2.75 V |
| 16 | Max. Discharging Current | 1200mA(1C) | |
| 17 |
Operating Temperature Range
|
Charging: 10～ 45℃ Discharging: -20 ～ 60℃ |
|
| 18 |
Operating humidity Range
|
≤ 90%RH | |
