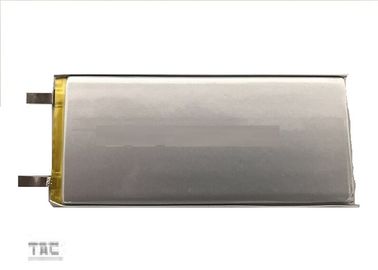

3.2V LifeP04 Battery High Energy Density 11585135Fe 10Ah Lithium Iron Phosphate

3.2V LifeP04 Battery High Energy Density 11585135Fe 10Ah Lithium Iron Phosphate

    • 3.2V LifeP04 Battery High Energy Density 11585135Fe 10Ah Lithium Iron Phosphate
    • 3.2V LifeP04 Battery High Energy Density 11585135Fe 10Ah Lithium Iron Phosphate
  • 3.2V LifeP04 Battery High Energy Density 11585135Fe 10Ah Lithium Iron Phosphate

    Product Details:

    Place of Origin: guangzhou
    Brand Name: TAC
    Certification: UL\ CE for single cell
    Model Number: 3.2V 11585138Fe 10Ah

    Payment & Shipping Terms:

    Minimum Order Quantity: 100pcs
    Price: $11.43
    Packaging Details: 10pcs / plastical tray 8 tray / carton
    Delivery Time: Sample with stock 3 days after T/T,Mass order with stock 7 days after T/T ,Without stock 45days
    Payment Terms: T/T
    Supply Ability: 50000Pcs / month
    Contact Now
    Detailed Product Description
    Material: Lifepo4 Capacity: 10ah
    Voltage: 3.2v Circle Life: 2000 Times
    Warranty: 12 Months Pvc: Blue
    Size: T: 11.5 W:85 H:135 MM Soft Pack: Lifepo4 Soft Pack
    Accemble: Workable

    3.2V LifeP04 Battery High Energy Density 11585135Fe 10Ah Lithium Iron Phosphate

    Product Specification for 3.2V LifeP04 Battery High Energy Density 11585135Fe 10Ah Lithium Iron Phosphate





    No.



    Item



    General Parameter



    Remark



    1

    Rated Capacity



    Typical



    200mAh

    Standard discharge(0.2 C5A) after Standard charge



    Minimum



    190mAh
    2

    Nominal Voltage



    3.2V

    Mean Operation Voltage



    3

    Voltage at end of

    Discharge



    2.0V

    Discharge Cut-off Voltage



    4

    Charging Voltage



    3.65V
    5

    Internal Impedance



    ≤150mΩ

    Internal resistance measured at AC 1KHZ after 50% charge



    The measure must uses the new batteries that within one week after shipment and cycles less than 5 times



    6

    Standard charge



    Constant Current 0.2C5A

    Constant Voltage 3.65V

    0.01 C5Acut-off




    7

    Standard discharge



    Constant current 0.2 C5A

    end voltage 2.0V







    Performance for Charge And Discharger



    No.



    Item



    General Parameter



    Remark



    8

    Fast charge



    Constant Current 1C5A

    Constant Voltage 3.65V

    0.01 C5Acut-off




    9

    Fast discharge



    Constant current 1 C5A

    end voltage 2.0V




    10

    Maximum Continuous Charge Current



    1 C5A
    11

    Maximum Continuous Discharge Current



    1.5C5A
    12

    OperationTemperature Range



    Charge: 0~45℃

    60±25%R.H.

    Bare Cell



    Discharge: -10~60℃
    13

    StorageTemperature Range



    Less than 1 year: -20~25℃



    60±25%R.H.

    at the shipment state



    less than 3 months: -20~40℃



    High: 27.0±0.5 mm
    14

    Cell Dimension




    Diameter:15.0±0.5mm



    Feature for  3.2V LifeP04 Battery High Energy Density 11585135Fe 10Ah Lithium Iron Phosphate

    1. High energy density

    2. High open circuit voltage

    3. Wide range of operating temperature

    4. Stable operating voltage and current

    5. Long operating time

    6. Low self-discharge rate (less than 2% per year at 20°C).



    Main Applications :

    1. Utility meter (water, electricity, gas meter, AMR)

    2. Alarm or security equipment (smoke alarm system, detector)

    3. GPS tracking

    4. Teal time clock

    5. Digital control machine

    6. Military

    7. Remote monitoring systems

    8. Car electronics

    9. Camera

    .

    The Normal Packaging for Lifepo4 battery

    8-10pcs in one plastical tray, 10 tray for one carton

    3.2V LifeP04 Battery High Energy Density 11585135Fe 10Ah Lithium Iron Phosphate





    Cautions In Use

    To ensure proper use of the battery please read the manual carefully before using it.

    . Handling

    • Do not expose to, dispose of the battery in fire.
    • Do not put the battery in a charger or equipment with wrong terminals connected.
    • Avoid shorting the battery
    • Avoid excessive physical shock or vibration.
    • Do not disassemble or deform the battery.
    • Do not immerse in water.
    • Do not use the battery mixed with other different make, type, or model batteries.
    • Keep out of the reach of children.

    . Storage

    • Store the battery in a cool, dry and well-ventilated area.

    . Disposal

    • Regulations vary for different countries.
    • Dispose of in accordance with local regulations.



    Battery Operation Instruction

    Discharging Current

    The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the over sized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.



    Electric Discharge Temperature

    The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.



    Storing The Batteries

    The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, the discharge capacity will decrease sharply.



    Period of Warranty

    Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a long period of time without being used. In addition, if the various usage conditions such as discharge, ambient temperature, are not maintained within the specified ranges the life expectancy of the battery may be shortened or the device in which the battery is used may be damaged by electrolyte leakage. Please change the battery in time.

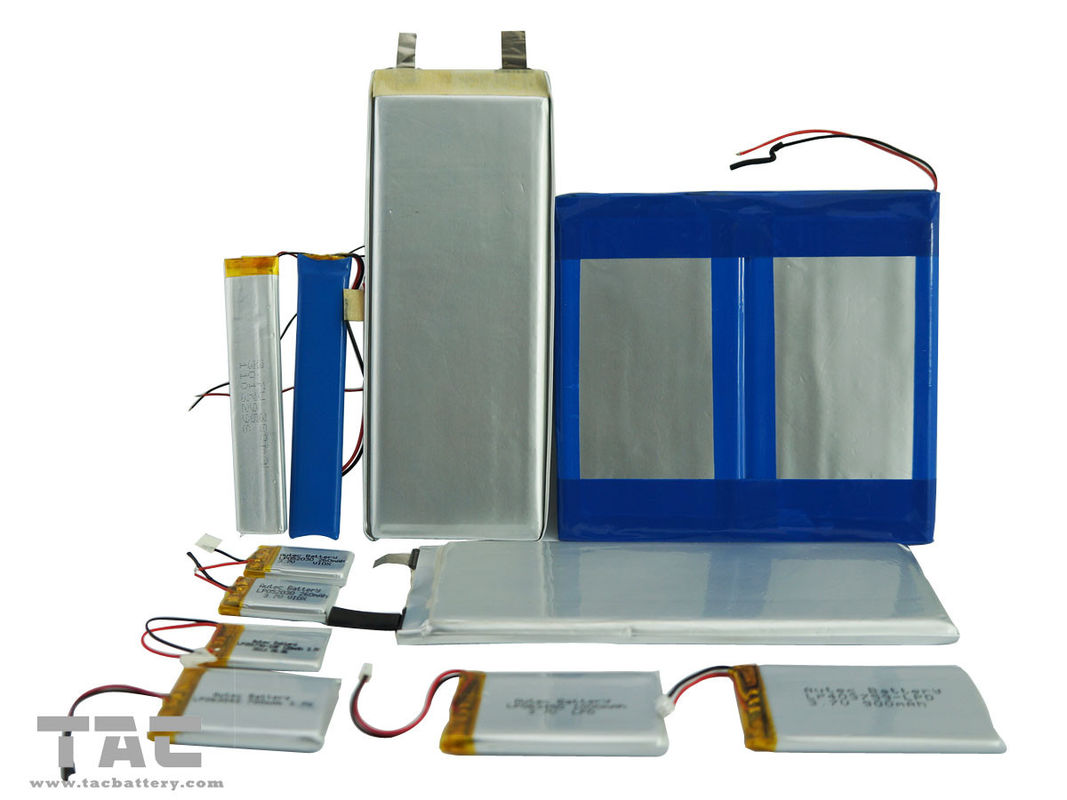

    The Similar Production

    The lifepo4 battery pack with PCB and connector

    3.2V LifeP04 Battery High Energy Density 11585135Fe 10Ah Lithium Iron Phosphate
