Ultra Thin CR2412 3.0V 100mA LiMnO2 Lithium Coin Cell Battery For Car Key Remote Control
Product Details:
| Place of Origin: | GUANGZHOU |
| Brand Name: | TAC |
| Certification: | UL,ROHS,REACH,MSDS,UN38.3 |
| Model Number: | CR2412 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Price: | usd 0.05-0.1 |
| Packaging Details: | 1200PCS/Carton |
| Delivery Time: | 14days after order |
| Payment Terms: | T/T, LC, Paypal etc. |
| Supply Ability: | 100,000PCS/Day |
|
Detail Information |
|||
| Type: | LiMnO2 | Voltage: | 3.0V |
|---|---|---|---|
| Capacity: | 110mah | Size: | 24*12mm |
| Rechargeable: | NO | Life: | 5 Years |
| Storage Temperature: | -10~50℃ | Off-load Voltage: | ≥3.25 |
| High Light: | LiMnO2 Lithium Coin Cell,100mA Lithium Coin Cell,Ultra Thin LiMnO2 Lithium Coin Cell |
||
Product Description
Ultra-Thin CR2412 3.0V 100mA LiMnO2 Lithium Coin Cell Battery For Car Key Remote Control
| Battery Type | button coin cell 3v lithium battery CR2412 |
| Brand Name | SUNLAND |
| Model | CR2412 |
| Voltage | 3.0V |
| Material | Lithium Manganese Battery |
| Capacity | 100mAh |
| Certifications | CE ROHS SGS MSDS |
| Size | 24.0mm*1.2mm |
| Jacket | Bare or Yellow Pvc |
| Samples Service | Free samples available |
| If Rechargeable | No |
| Storage life | 1year |
| Package | Blister card pack,bulk tray pack or your customized package |
| Shipping | 2-3 working days for samples; 15-20 days for batch goods. |
| Payment Term | T/T, L/C, Paypal, etc |
Ultra-Thin CR2412 3.0V 100mA LiMnO2 Lithium Coin Cell Battery For Car Key Remote Control
Similar products:
|
MODEL |
NOMINALVOLTAGE |
NAMENAL CAPACITY |
STANDARD DISCHARGE CURRENT |
MAX DISCHARGE CURRENT |
PULSE DISCHARGE |
NAMINAL WEIGHT |
|
CR1025 |
3.0V |
30mAh |
0.1mA |
0.2mA |
5mA |
0.9g |
|
CR1216 |
3.0V |
25mAh |
0.1mA |
0.2mA |
5mA |
0.7g |
|
CR1220 |
3.0V |
38mAh |
0.1mA |
0.2mA |
5mA |
0.9g |
|
CR1616 |
3.0V |
45mAh |
0.1mA |
0.2mA |
5mA |
1.2g |
|
CR1632 |
3.0V |
120mAh |
0.1mA |
0.3mA |
5mA |
2.3g |
|
CR2016 |
3.0V |
75mAh |
0.1mA |
0.3mA |
10mA |
1.8g |
|
CR2025 |
3.0V |
150mAh |
0.1mA |
0.3mA |
10mA |
2.5g |
|
CR2032 |
3.0V |
220mAh |
0.2mA |
0.4mA |
12mA |
3.1g |
|
CR2330 |
3.0V |
260mAh |
0.2mA |
0.5mA |
12mA |
4.0g |
|
CR2430 |
3.0V |
270mAh |
0.2mA |
1.0mA |
15mA |
4.2g |
|
CR2450 |
3.0V |
600mAh |
0.5mA |
1.5mA |
20mA |
6.7g |
Ultra-Thin CR2412 3.0V 100mA LiMnO2 Lithium Coin Cell Battery For Car Key Remote Control

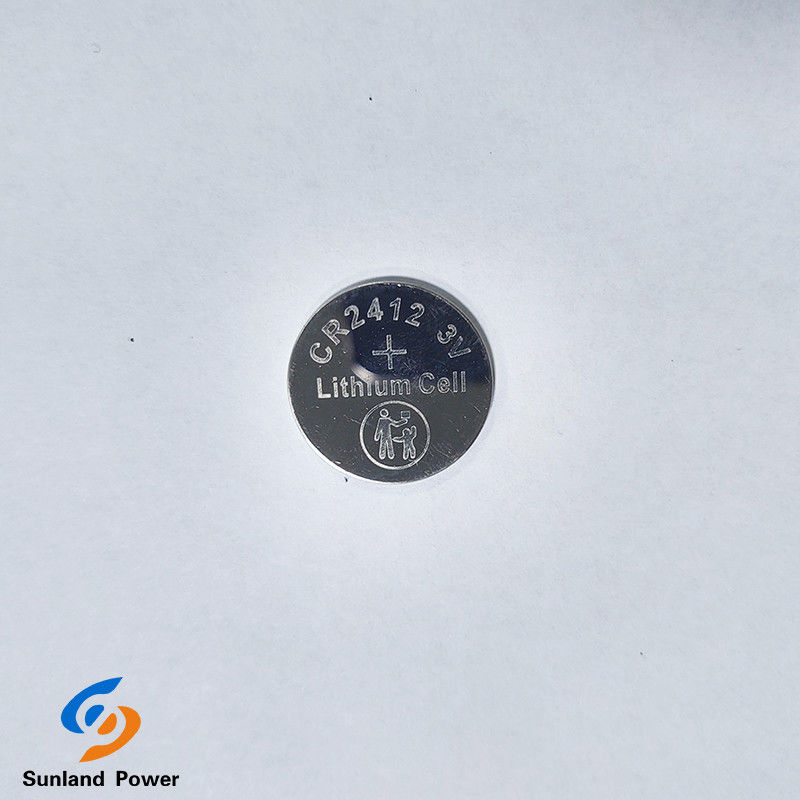

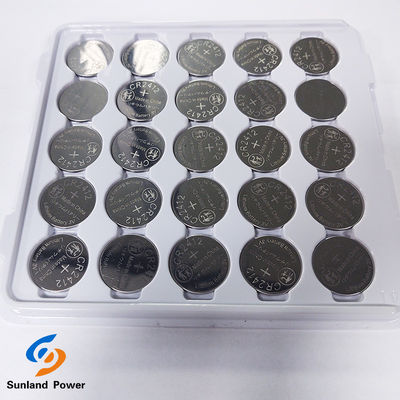

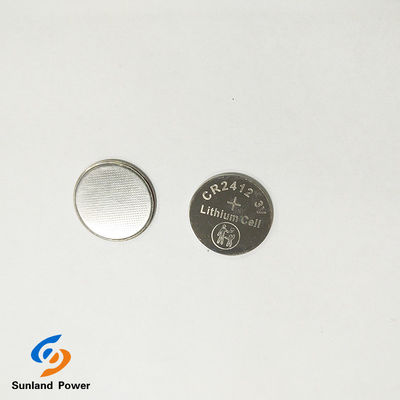

Battery Picture
Ultra-Thin CR2412 3.0V 100mA LiMnO2 Lithium Coin Cell Battery For Car Key Remote Control
| No | ITEM | TEST METHODS | STANDARED | |
| 1 | Dimensions | Using vernier caliper (accuracy≥0.02) while avoiding short-circuit | Diameter | 24.0 (-0.2) mm |
| Height | 1.2(-0.2) mm | |||
| 2 | Off-load voltage | Using multimeter (accuracy≥0.25%) internal resistance≥1MΩ | ≥3.25 v | |
| 3 | Instantaneous short-circuit current | Time of short-circuit should be less than 0.5 second and avoid repeated test within half an hour | ≥160 mA | |
| 4 | Appearance | Eyeballing | Bright, clean, no rust, no leakage, And no flaw | |
| 5 | Capacity | Continuously discharge for 8 hours with load 15k, temperature at 20~25℃, humidity at 65±20% till 2.0v end-voltage (for fresh battery only: within 3 months ) | ≥1000 h | |
| 6 | Vibration test | Put battery on the platform of the vibrations machine, start the machine and adjust the frequency form 10 times per minute to 15 times per minute. keep it running for an hour | Characteristics keep stability | |
| 7 | Leakage at high temperature | Stored under temperature (45℃) for 30 days | Leakage rate≤1% | |
| 8 |
Over discharge Test |
After 2.0v end-voltage, continuously discharged for 5 hours | No leakage allowed | |
