• 12V  18650 Rechargeable Lithium Battery 12V 6AH For Solar Street Light
  • 12V  18650 Rechargeable Lithium Battery 12V 6AH For Solar Street Light
  • 12V  18650 Rechargeable Lithium Battery 12V 6AH For Solar Street Light
12V  18650 Rechargeable Lithium Battery 12V 6AH For Solar Street Light

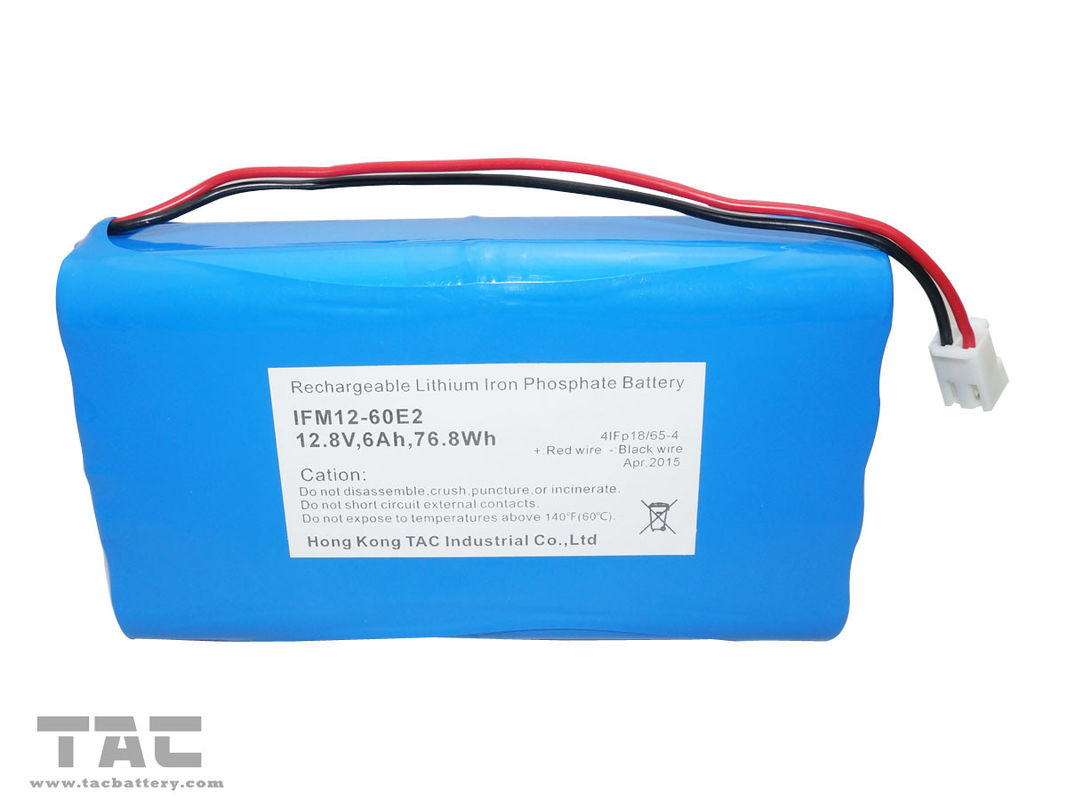

12V 18650 Rechargeable Lithium Battery 12V 6AH For Solar Street Light

Product Details:

Place of Origin: SHENZHEN
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: IFM12-60E2

Payment & Shipping Terms:

Minimum Order Quantity: 50 PCS
Price: usd 5-10
Packaging Details: 1pcs for one bag with UN38.3
Delivery Time: 7-25 days after order confirm
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000p unit per month
Get Best Price Contact Now

Detail Information

Material: Lithium Battery Voltage: 12.8v
Capacity: 6AH Circle Life: 2000 Times
Warranty: 1 Year Pvc: Blue
Wire: Ul1007 22# Connector: Customized
High Light:

lithium iron phosphate battery pack

,

12 volt lithium battery

Product Description

12V 18650 Rechargeable Lithium Battery 12V 6AH For Solar Street Light

12V 18650 Rechargeable Lithium Battery 12V 6AH For Solar Street Light



Description:

1.The battery pack assembled by ifr18650 3.2v 1.5ah  cell in 4s4p

2.The max size of the battery pack:75mm*40mm*145mm

3.The battery pack with protection circuit  board to keep the safe under over charged over discharged and short circle

4.Widely application for solar product and solar street lighting



Specification For 12V 18650 Rechargeable Lithium Battery 12V 6AH For Solar Street Light



No.

Item

General Parameter

Remark

1

Rated Capacity

6.0Ah

Standard discharge(0.2C)after

standard charge(0.2C)

2

Minimal Rated

Capacity

5.7Ah

3

Nominal Voltage

12.8V



4

Cycle Life

Higher than 60% of the Initial Capacity of the Cells

◆Charge: CC@0.2C to 14.6V,

then CV till current to 0.05C

◆Rest: 30min.

◆Discharge: 0.2C to 10.0V

◆Temperature:20±5℃

◆Carry out 2000cycles

5

Discharge cut-off voltage

8.0V

10.0V(recommended)

6

Charging cut-off voltage

14.6V

14.6V(recommended)

7

Cell and assembly method

IFR18650EC-1.5AH

4S4P

8

Packing material

PVC shrink



Charge And Discharge Performance



9

Standard charge

0.2C constant current(CC) charge to 14.6V,then constant voltage

(CC)14.6V charge till charge current decline to ≤0.05C

Charge time :

Approx 6h

10

Standard discharge

Constant current 0.2C

Cut-off voltage 10.0V



11

Maximum Charge Current

4A



12

Maximum Discharge Current

4A



13

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.







Discharge: -10~50℃



14

Storage Temperature Range

Less than 1 year : 0~25℃

60±25%R.H.

at the

shipment

state





Less than 3 months:-5~35℃



15

Weight

Approx: 1050g



16

Pack Dimension

75mm*40mm*145mm





Application for 12V 18650 Rechargeable Lithium Battery 12V 6AH For Solar Street Light

Power bank

Energy Storage: UPS , backup ,power station.

Solar System,Wind Energy Storage,Solar/Storage Home System, Solar Street Light.



12V  18650 Rechargeable Lithium Battery 12V 6AH For Solar Street Light 0



Packing for Battery Pack Picture

Individual packing for each set , the battery pack packed by double level sponge and put into little bag

5-10 bags in one carton

12V  18650 Rechargeable Lithium Battery 12V 6AH For Solar Street Light 1



The Similar Model Picture

12V  18650 Rechargeable Lithium Battery 12V 6AH For Solar Street Light 2



Period of Warranty

The period of warranty is 12 months from the date of shipment. TAC guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.



Storing the Batteries

The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over-discharge.





Productive Process

12V  18650 Rechargeable Lithium Battery 12V 6AH For Solar Street Light 3
