• 12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack
  • 12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack

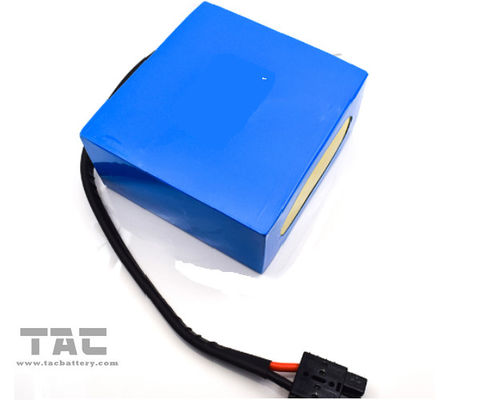

12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack

12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack

Product Details:

Place of Origin: SHENZHEN
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: IFM12-500E2

Payment & Shipping Terms:

Minimum Order Quantity: 50 PCS
Price: usd 100- 200
Packaging Details: 1pcs for one bag with UN38.3
Delivery Time: 7-25 days after order confirm
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000units/days
Get Best Price Contact Now

Detail Information

Material: Lithium-ion Battery Pack Application: Replace The Lead Acid Battery Pack
Voltage: 12.8v Capacity: 24ah
Circle Life: 2000 Times Warranty: 12 Months
Housing: ABS+PC With Or Without Terminal: Steel
PO NO: PIFP0210
High Light:

lifepo4 battery pack

,

lithium iron phosphate battery pack

Product Description

12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack



Feature for 12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack



1.With the wide temperature,can be use for outdoor street lamp

2.High convert ratio and environmental protection.

3.Longer cycle life, more than 2000 cycles
5.Low self-discharge rate, less than 3% monthly
6.Environment friendly, Non-toxic, non-contaminating and no rare metal





Specification for 12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack



No.

Item

General Parameter

Remark

1

Rated Capacity

24Ah

Standard discharge(0.2 C5)after standard charge(0.2 C5)

2

Minimal Rated

Capacity

23.5Ah



3

Nominal Voltage

12.8V



4

Cycle Life

Higher than 60% of the Initial Capacity of the Cells

◆Charge: CC@0.2C to 14.6V, then CV till current to 0.05C

◆Rest: 30min.

◆Discharge: 0.2C to 10.0V

◆Temperature:20±5℃

◆Carry out 2000cycles

5

Discharge cut-off voltage

8V

10.0V( recommended)

6

Charging cut-off voltage

14.6V

14.6V (recommended)

7

Cell and assembly method

IFR26650EC-3.0AH

4S8P

8

Housing material

abs+pc



9

Standard charge

0.2C constant current(CC) charge to 14.6V,then constant voltage (CC)14.6V charge till charge current decline to ≤0.05C

Charge time : Approx 7h

10

Standard discharge

Constant current 0.2C

Cut-off voltage 8.0V





11

Maximum Charge Current

20A



12

Continuous Discharge Current

30A



13

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.



Discharge: -10~60℃

14

Storage Temperature Range

Less than 1 year : 0~25℃

60±25%R.H.

at the shipment state

Less than 3 months:-5~35℃

15

Weight

Approx:5.1Kg



16

Max.Dimension

Height:398mm



Width: 80mm

Length: 110mm



Application Scenarios

The battery pack can replace for lead acid battery and used for various Energy storage sysytem

E-V ,, E-Car

12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack 0

Packing

Packing for battery without housing

12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack 1

12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack 2



The packing for battery with housing



Picture for 12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack



12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack 3

12V 24AH Lithium-ion Battery Pack for Replace the Lead Acid Battery Pack 4
