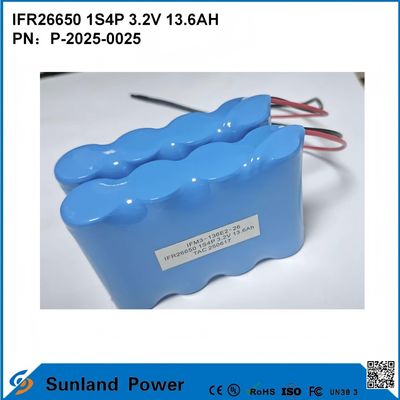

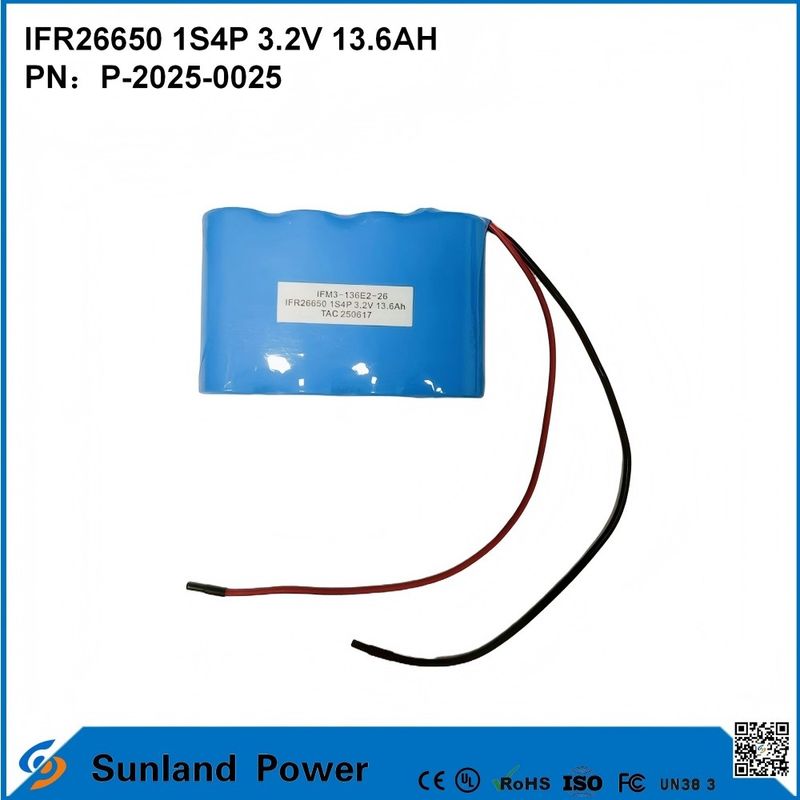

IFR26650 1S4P 3.2V 13.6Ah Batteries For Home And Commercial Mobile Energy Storage High Power Power Tools Drills Saws And Angle Grinders
Product Details:
| Place of Origin: | GUANGZHOU CHINA |
| Brand Name: | Sunland |
| Certification: | UN38.3 MSDS |
| Model Number: | P-2025-0025 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton with protective liner |
| Delivery Time: | Negotiable |
| Supply Ability: | Negotiable |
|
Detail Information |
|||
| Highlight: | Portable Mobile Energy Storage batteries,Drills Mobile Energy Storage batteries,Grinders Portable Mobile Energy Storage batteries |
||
|---|---|---|---|
Product Description
IFR26650 1S4P 3.2V 13.6Ah Batteries
Composition table for battery pack
|
Battery pack Mode |
Combination mode |
Composition table |
|
| Cell type |
Protection board model |
||
| 3.2V 13600mAh | 1S4P/F4X1 | 3.2V IFR26650-3400mAh | LHY-BSL-1S4008 |
Performance index for battery pack
|
Item(s)
|
Specification |
Remark | |
|
Nominal voltage |
3.2V | ||
|
Nominal Capacity |
13600mAh |
Standard charging/discharge method |
|
|
Minimum capacity |
12920mAh | ≧95% | |
|
Charging |
Charging voltage Max. |
3.65V | |
|
Standard Chargin current |
2720mA | 0.2C5 | |
|
Continue charging current Max. |
6800mA | 0.5C | |
|
Discharging |
End of discharging voltage Min. |
2. 1V | |
|
Standard discharging current |
2720mA | 0.2C5 | |
|
Continue discharging current Max. |
7000mA | ||
|
Operation temperature |
Standard Charging |
0～60℃ |
Charging below 0°C is prohibited |
|
Standard Discharging |
-20～60℃ | ||
| Weight | 375g | ||
| Internal resistance (mΩ) | <100 | AC 1kHz | |
