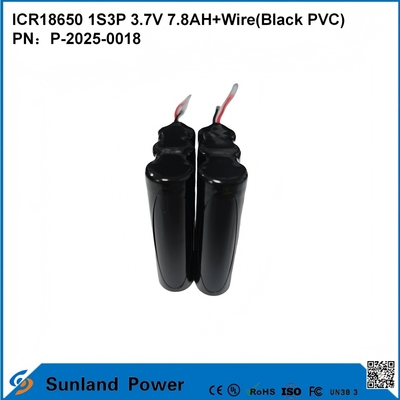

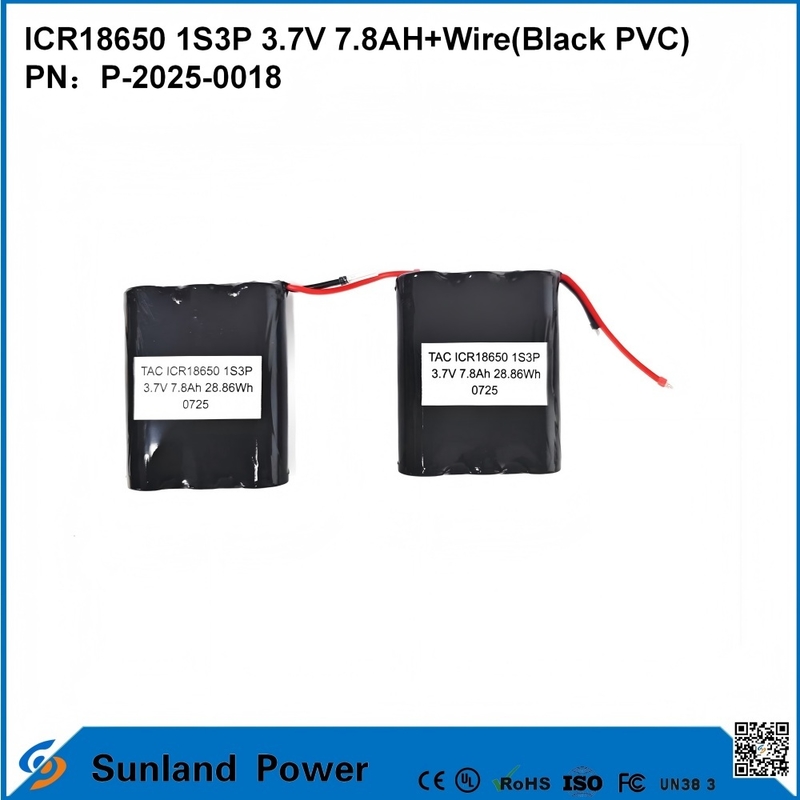

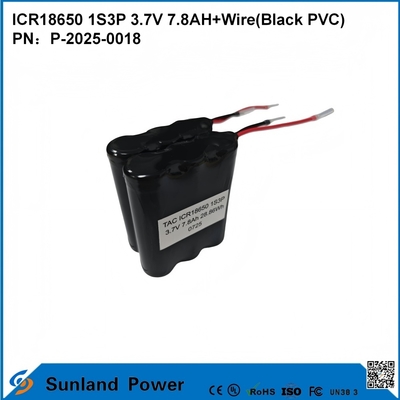

ICR18650 1S3P 3.7V 7.8AH+WIRE(BLACK PVC) BATTERY
Product Details:
| Place of Origin: | GUANGZHOU CHINA |
| Brand Name: | Sunland |
| Certification: | UN38.3 MSDS |
| Model Number: | P-2025-0018 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton with protective liner |
| Delivery Time: | Negotiable |
| Supply Ability: | Negotiable |
|
Detail Information |
|||
| Highlight: | ICR18650 3.7V battery with PVC wire,1S3P lithium battery 7.8AH,portable energy storage battery with warranty |
||
|---|---|---|---|
Product Description
ICR18650 1S3P 3.7V 7.8AH+Wire(Black PVC)
Pack Battery specifications
|
No. |
Items | Specifications | Remark | |
|
1 |
Capacity for assembled cell discharging by 0.2C
|
≥ 7560mAh |
Standard discharging method |
|
|
2 |
Battery Voltage
|
3.70-3.90V |
Delivery voltage, Within 10 days from Factory
|
|
|
3 |
Standard charge condition |
Charge with 0.2C constant current and 4.2V constant voltage, charge to 4.2V,continue charging till current decline to ≤0.01C
|
Charge voltage:4.2V±0.03V Charge current:0.2C
|
|
|
4 |
Standard discharging method |
0.2C constant current discharge to 3.0V, |
|
|
|
5 |
Operation Temperature and relative humidity Range
|
0.2C Charge/ |
0~ 15℃ 60±25%R.H. |
Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
|
| 0.5C Charge/ |
15~45℃ 60±25%R.H. |
|||
| 0.2C Discharge/ |
-20~0℃ 60±25%R.H. |
|||
| 1C Discharge/ |
0~60℃ 60±25%R.H. |
|||
|
6 |
Internal Impedance |
Assemblage Impedance ≤ 70 mΩ |
Measure two sides of the drawing line after assembling.
|
|
