INR21700 1S2P 3.6V 10Ah BATTERY Is Suitable For Wireless Surveillance Cameras Smart Door Locks Portable Medical Monitors Industrial Sensor Gateways Drones RC Models Robots Consumer Electronics
Product Details:
| Place of Origin: | GUANGZHOU CHINA |
| Brand Name: | Sunland |
| Certification: | UN38.3 MSDS |
| Model Number: | -2025-0014 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton with protective liner |
| Delivery Time: | Negotiable |
| Supply Ability: | Negotiable |
|
Detail Information |
|||
| Highlight: | INR21700 1S2P 10Ah battery for wireless cameras,3.6V lithium battery for smart door locks,portable medical monitor battery with warranty |
||
|---|---|---|---|
Product Description

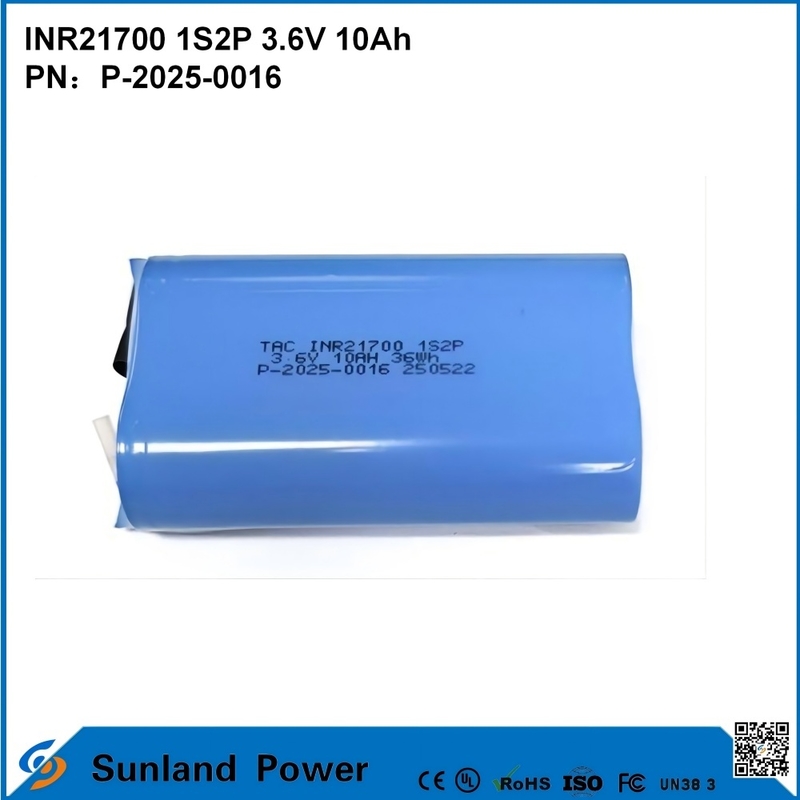

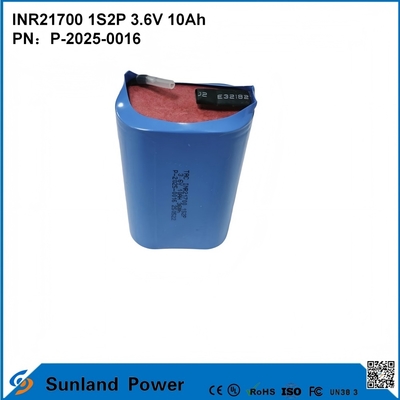

INR21700 1S2P 3.6V 10Ah BATTERY
Battery specifications-INR18650 1S4P
| No. | Items | Specifications |
Remark
|
| 1 |
Normal Capacity for assembled cell discharging by 0.2C
|
10Ah |
Standard discharging method
|
| 2 |
Maximum charge current
|
2A | 0~45℃ |
| 3 |
Maximum discharge current
|
2A |
-20~60℃
|
| 4 |
Battery Voltage
|
≥3.6V |
Delivery Voltage, Within 10 days from Factory
|
| 5 |
Standard charge condition
|
Charge with 0.2C constant current and 4.2V constant voltage, charge to 4.2V,continue charging till current decline to ≤0.01C
|
Charge voltage: 4.2V±0.03V Charge current:0.2C
|
| 6 |
Standard discharging method
|
0.2C constant current discharge to 2.5V, | |
| 7 |
Internal Impedance
|
Assemblage Impedance
|
Measure the Red and black wire of the connector after assembling.
|
| 8 |
Battery pack dimension
|
T:23mm*W:45mm*L:74mm |
Max dimension
|
| 9 | Case | PVC | |
| 10 |
Weight
|
≈160g |
