Lithium  Battery AAA 1.5V 1200mah Primary Battery Similar with Energize

Lithium Battery AAA 1.5V 1200mah Primary Battery Similar with Energize

Product Details:

Place of Origin: guangzhou
Brand Name: TAC
Certification: UL/ROHS
Model Number: 1.5V LiFeS2 AAA 1100mAh Lithium iron Battery

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: USD 0.7
Packaging Details: Bulk Packing: 50 PCs/box, 20box/Carton, total 1000pcs/Carton, carton Size 325*177*190mm
Delivery Time: 7-25 days after order confirm
Payment Terms: TT
Supply Ability: 100,000pcs per month
Get Best Price Contact Now

Detail Information

Material: Lithium Iron Battery Voltage: 1.5v
Capacity: 1200mah Rechargeable: Primary
Life: 10 Years PVC: Blue Green Or OEM
Warranty: 1 Year Certificaiton: UL
Highlight:

iron batteries

,

lithium ion battery cell

Product Description

Lithium Battery AAA 1.5V 1200mah Primary Battery Similar with Energize



Quick Detail:



Place of Origin:

Guangdong China (Mainland)

Brand Name:

TAC

Model Name:

1.5V LiFeS2 AAA  1100mAh Lithium iron Battery

Other Name:

L92  AAA

Nominal Voltage

1.5V

Nominal Capacity:

1100mAh

Size:

10±0.5(D)*43.9±0.6(H))mm

Weight:

7.7g



Packing & Delivery:



MOQ:

1000pcs

Packing:

Bulk Packing:

50 PCs/box, 20box/Carton, total 1000pcs/Carton,

carton Size 325*177*190mm

Delivery Detail:

Sample with stock 3 days after T/T

Mass order with stock 7 days after T/T

Mass order with stock 7 days after T/T





Specification for Lithium Battery AAA 1.5V 1200mah Primary Battery Similar with Energize



No.

Items

Specification

1

Nominal Voltage

1.5 V

2

Rated Capacity

1100 mAh @ 300mA discharge

3

Working Voltage

1.30V @ 100mA discharge

4

Max. Discharge Current

1000 mA continuous

5

Discharge Cut-off Voltage

0.80V

6

Volume

3.8 cubic centimeters

7

Weight

Approx. 7.7 g

8

Lithium Content

Less than 0.5 gram per cell

9

Dimensions

Diameter: 10.0±0.5 mm

Height: 43.9±0.6 mm

10

Operating Temp.

-20 ℃ to 60 ℃

11

Storage Temp.

-20 ℃ to 40 ℃

12

Storage Humidity

≤75 %

13

Shell Life

5 Years



Features:

1. High energy density

2. High open circuit voltage

3. Wide range of operating temperature

4. Stable operating voltage and current

5. Long operating time

6. Low self-discharge rate (less than 2% per year at 20°C).



Main Applications :

1. Utility meter (water, electricity, gas meter,AMR)

2. Alarm or security equipment (smoke alarm system, detector)

3. GPS tracking

4. Teal time clock

5. Digital control machine

6. Military

7. Remote monitoring systems

8. Car electronics

9. Camera



Picture &Drawing:

Lithium  Battery AAA 1.5V 1200mah Primary Battery Similar with Energize 0

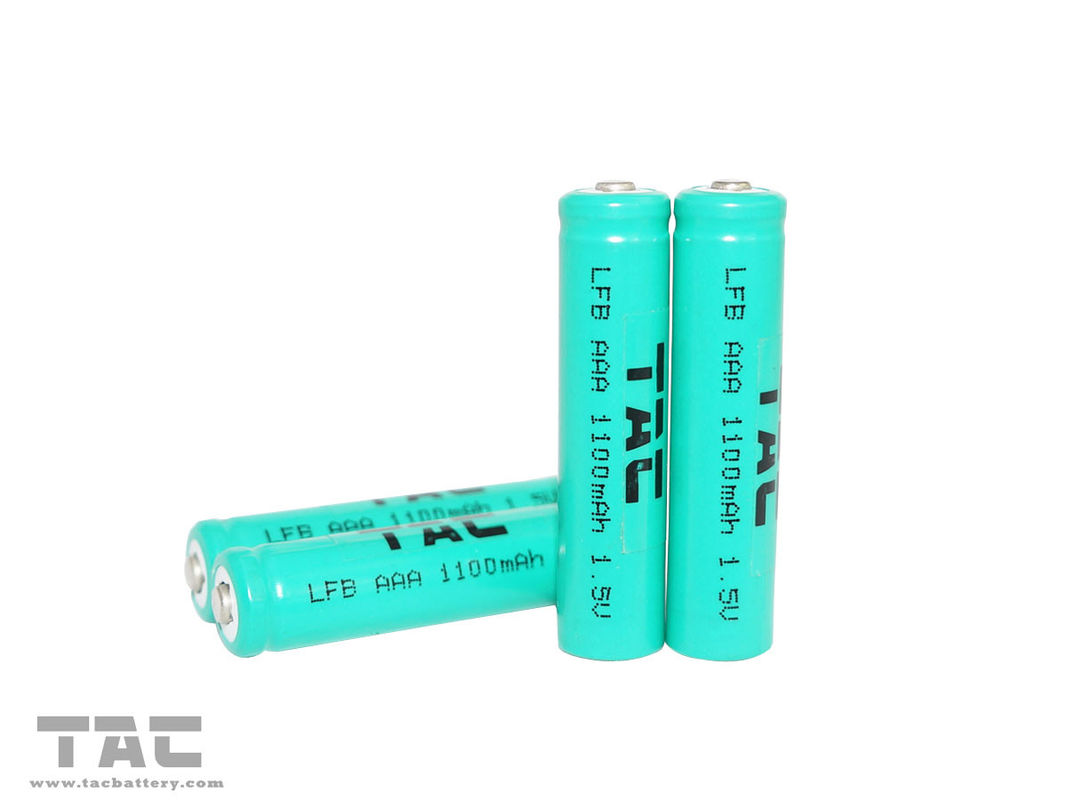

Battery Picture

Lithium  Battery AAA 1.5V 1200mah Primary Battery Similar with Energize 1



TAC OEM R6 and R03 Model for

Lithium  Battery AAA 1.5V 1200mah Primary Battery Similar with Energize 2



Cautions in use

To ensure proper use of the battery please read the manual carefully before using it.

   . Handling

  •  Do not expose to, dispose of the battery in fire.
  • Do not put the battery in a charger or equipment with wrong terminals connected.
  • Avoid shorting the battery
  • Avoid excessive physical shock or vibration.
  • Do not disassemble or deform the battery.
  • Do not immerse in water.
  • Do not use the battery mixed with other different make, type, or model batteries.
  • Keep out of the reach of children.

     . Storage

  • Store the battery in a cool, dry and well-ventilated area.

     . Disposal

  • Regulations vary for different countries.
  • Dispose of in accordance with local regulations.



Battery operation instruction

Discharging current

The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the over sized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.



Electric discharge temperature

The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.



Storing the Batteries

The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, the discharge capacity will decrease sharply.



Period of Warranty

one year

Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a long period of time without being used. In addition, if the various usage conditions such as discharge, ambient temperature, are not maintained within the specified ranges the life expectancy of the battery may be shortened or the device in which the battery is used may be damaged by electrolyte leakage. Please change the battery in time.
