Light Weight LP452030 3.7V 200mAh Polymer Lithium Ion Batteries UN38.3  RoHs

Light Weight LP452030 3.7V 200mAh Polymer Lithium Ion Batteries UN38.3 RoHs

Product Details:

Place of Origin: guangzhou
Brand Name: TAC
Certification: UL, UN38.3 RoHs
Model Number: LP452030 3.7V 200mAh

Payment & Shipping Terms:

Minimum Order Quantity: 500pcs
Price: usd1-3 each pcs
Packaging Details: 20 pcs for each pallet
Delivery Time: 5 pcs sample 3days after order Mass order with stock 15days after T/T Without stock 45days
Payment Terms: T/T, LC,Paypal etc.
Supply Ability: 100,000set/Day
Get Best Price Contact Now

Detail Information

Place Of Origin:: Guang Dong China Brand Name:: TAC
Nominal Capacity:: 200mAh Nominal Voltage: 3.7V
Type:: Li-Ion Polymer OEM & ODM:: Support
Warranty:: 12months Environmental Compliance:: UL, UN38.3 RoHs
High Light:

li-ion polymer battery

,

high capacity lithium ion battery

Product Description

LP452030 3.7V 200mAh Li-polymer Battery for Track Instrument



Quick Detail:



Place of Origin: Guang dong China Brand Name: TAC
Nominal Capacity: 200mAh Minimum Capacity 200mAh
Nominal Voltage 3.7V Type: Li-Ion Polymer
OEM & ODM: Support Packing: PVC Packing
Warranty: 12months Environmental Compliance: UL, UN38.3 RoHs

Features:



1. High energy density;

2. High capacity, light weight;

3. No memory effect;

4. Stable operating voltage;

5. Wide operating temperature range;

6. Three safety charge/discharge protections;

7. Long cycle life over 500 times, fast charging;

8. Low self-discharge rate, good energy retention;

9. High voltage, good to build power packs;

10. Environmentally-friendly, green and safety;

11. Restricted of UL, UN38.3 and RoHs;

12. OEM/ODM orders are welcome.



LP452030 3.7V 200mAh Li-polymer Battery Specification:



No. Items Specifications

Remark



1

Nominal Capacity



200mAh

0.2C Standard discharge



2

Minimum Capacity



200mAh
3

Nominal Voltage



3.7V

Mean Operation Voltage



4

Delivery voltage



3.7~3.9V

Within 10 days from Factory



5

Charge Voltage



4.2V±0.03V

By standard charge method



7

Charge current



0.2C

Standard charge, charge time:6.5h(Ref)



0.3C

Rapid Charge, charge time:4.5h(Ref)



8

Cell Internal Impedance



≤180mΩ

Internal resistance measured at AC 1KHZ after 50% charge







Application:





1. Automatic office system.



2. Traffic and navigation signal lamp.



3. Solar Energy: Solar Street lights, Solar Led.



4. Radio communication system.



5. Portable equipment: Laptop, camcorder, PDA, Digital camera, portable DVD etc.



6. Home appliances: Two-way radio, Walkie-talkie, Electric toys, Electric bicycles, Emergency lighting



7. Military equipment: IR telescope.



8. Telephone switchboard, electric equipments, power instruments and meters.



9. Uninterrupted power source (UPS) for computer, Emergency Application, Medical devices



10. Power transmission and transformer station, switch-control, and accident lighting.



11. Fire fighting, safety device, and alarm monitoring.



Packing Manner

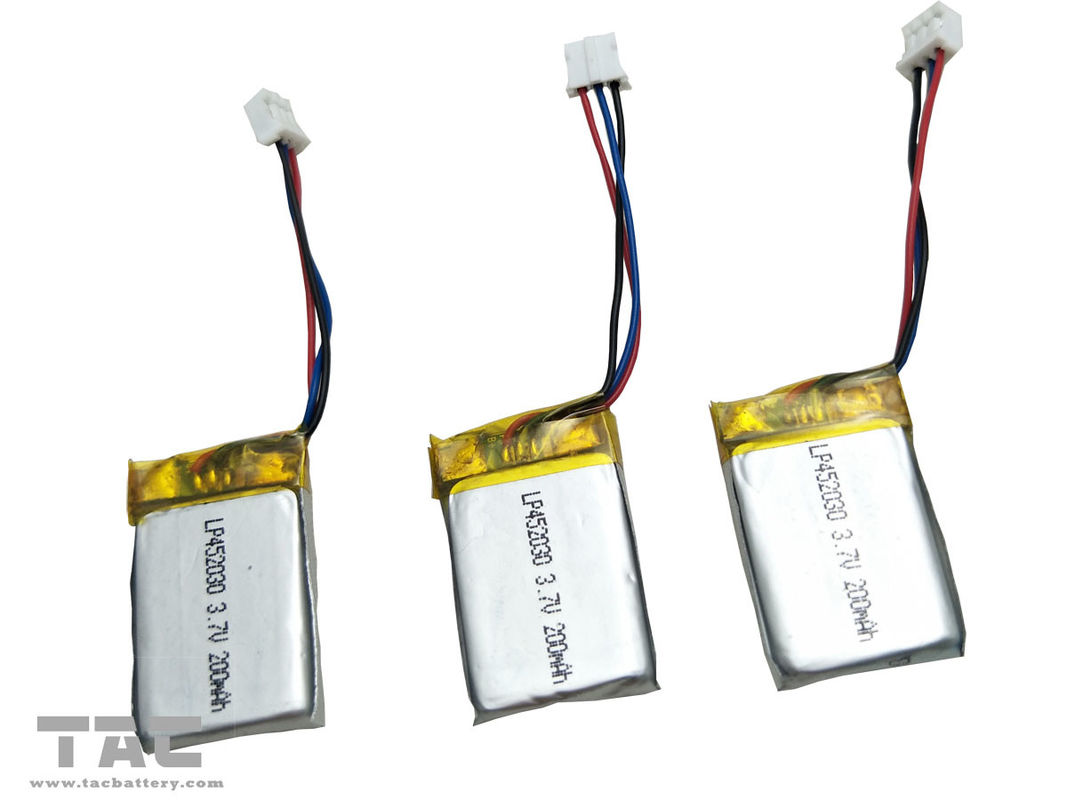

Light Weight LP452030 3.7V 200mAh Polymer Lithium Ion Batteries UN38.3  RoHs 0







Similar Production Picture

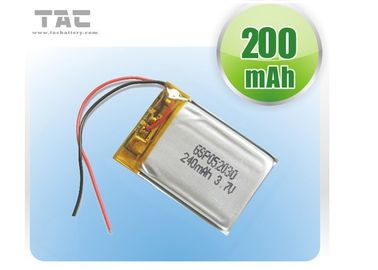

Light Weight LP452030 3.7V 200mAh Polymer Lithium Ion Batteries UN38.3  RoHs 1



Polymer battery Product list



Model mAh V T/mm W/mm H/mm g C.C MAX C.C
W622530-400 400 3.7 6.17 24.82 29.51 67 7.96 1C 2C
W752530-450 450 3.7 7.5 24.32 29.71 67.6 9.6 1C 2C
W702035-450 450 3.7 6.96 20.1 35.73 57.3 8.74 1C 2C
W652240-500 500 3.7 6.61 22.14 40.04 64.1 9.8 1C 2C
W852330-520 520 3.7 8.03 23.6 30.8 61.3 9.68 1C 2C
W503046-700 700 3.7 4.69 30.19 46.39 42 13.46 1C 2C
W752440-740 740 3.7 7.65 23.95 41.22 44.7 11.95 1C 2C
W552072-800 800 3.7 5.45 20.04 72.72 35.4 15.11 1C 2C
W603048-850 850 3.7 5.6 30.5 48.8 39.6 15.88 1C 2C
W503450-850 850 3.7 4.86 34.5 50.8 35.5 16.21 1C 2C
W653046-900 900 3.7 6.75 29.94 46.68 38.8 17.25 1C 2C
W823038-900 900 3.7 8.64 30.5 38.6 52.2 17.43 1C 2C
W602072-950 950 3.7 5.96 19.46 71.91 32.8 17.02 1C 2C
W503060-960 960 3.7 5.04 29.17 60.7 30 18.17 1C 2C



About Tac Battery

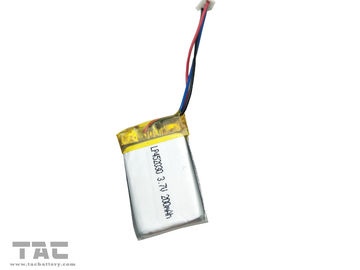

Light Weight LP452030 3.7V 200mAh Polymer Lithium Ion Batteries UN38.3  RoHs 2
