3.6v Lisocl2 Battery ER26500 9AH With connector for Water meter Ammeter

3.6v Lisocl2 Battery ER26500 9AH With connector for Water meter Ammeter

    • 3.6v  Lisocl2 Battery ER26500 9AH With connector  for Water meter Ammeter
    • 3.6v  Lisocl2 Battery ER26500 9AH With connector  for Water meter Ammeter
    • 3.6v  Lisocl2 Battery ER26500 9AH With connector  for Water meter Ammeter
  • 3.6v  Lisocl2 Battery ER26500 9AH With connector  for Water meter Ammeter

    Product Details:

    Place of Origin: SHENZHEN
    Brand Name: TAC
    Certification: UL, ROHS
    Model Number: ER26500 3.6V

    Payment & Shipping Terms:

    Minimum Order Quantity: 500PCS
    Price: USD 2-5
    Packaging Details: 50pcs/carton
    Delivery Time: 15 -25 DAYS
    Payment Terms: T/T, LC, Paypal etc.
    Supply Ability: 100,000PCS/Day
    Contact Now
    Detailed Product Description
    Material: LiSOCL2 Size: D: 26MM H:65MM
    Certification:: UL, ROHS OEM & ODM:: Support
    Rechargeable: Primary , Can Not Rechargeable Voltage: 3.6V
    Capacity: 9000MAH 9AH Connector: JSP-XHR-2P
    Jacket: Blue Pvc Or Jacket Life: 10 Years

    3.6v Lisocl2 Battery ER26500 9AH With connector for Water meter Ammeter





    Specification for  3.6v Lisocl2 Battery ER26500 9AH With connector for Water meter Ammeter



       1) Nominal voltage: 3.6V

    2) Nominal capacity: 9000mAh(2mA / 2.0V)

    3)Discharge end-voltage: 2.0V

    4) Max constant discharge current: 200mA

    5)Max. pulse current: 400mA

    6) Ambient temperature range: -55~ +85℃

    7) Storage life: ≥10 year, Yearly self-discharge ≤ 1%





       Appearance & Dimension/Weight

    1) Appearance: Cylinder

    2) Max dimension : φ26.2mm×h50.0mm

    3) Max weight: 55g





    Detail information



    Item Measuring Procedure Standard
    1.Appearance Visual check Clean, unscratched and clearly labeled
    2.Dimenaions Measured by calipers with precision of 0.02mm Max φ26.2×50.0mm
    3.Weight Weighed by balance with precision of 0.1g Max 55g
    4.Open-circuit voltage Measure by volt-meter with precision of 0.01V ≥3.65V
    5.Operating voltage Measure by volt-meter with precision of 0.01V, connecting an impedance of 330Ωin series, Reaching the target voltage in 5 seconds. ≥3.45V
    6.Nominal discharge 330Ω,20±2℃, Constant discharge to 2.0V. ≥7500mAh
    7.Rapid discharge 62Ω,20±2℃, Constant discharge to 2.0V. ≥6500mAh
    8. Discharge at high temperature Put battery in constant ambient temperature of 55±2℃ for 16 hours, discharge at 330Ω to 2.0V/cell. ≥7800mAh
    9.Discharge at low temperature Put battery in constant ambient temperature of -40±2℃ for 16 hours, discharge at 1200Ω to 2.0V/cell ≥4800mAh
    10.Charge Prohibited Prohibited
    11.Over-discharge Prohibited Prohibited
    12.Self discharge Store the batteries at constant temperature of 20±5℃, Measure the nominal capacity yearly for 10 years. ≤1%





    Size of single cell : Max dimension : φ26.5mm× H50.5 mm

    If you have bought ER battery from other supplier, pls take close attention to max size

    in order to avoid the size over your space limit



    Features:



    Fire,explosion and severe burn hazard.Do not recharge,crush,disassemble heat above100℃, Incinerate, or expose contents to water . Do not solder directly to the cell



    Similar ER Production:



    ER9V

    ER10450

    ER14250

    ER14250AX

    ER14335

    ER14250

    ER17335

    ER17505

    ER18505

    ER34615





    Trade term


    Price term: FOB (Shenzhen/Guangzhou/HongKong/Shanghai),Ex-works.CIF,C&F.........



    Payment term: 30%TT in advance and the balance 70% against copy of B/L,

                           30%TT in advance and the balance before shipment

                           30%TT and 70% LC at sight.



    time:  20-25 working days after receiving deposite and all the design.



    Brand: TAC or OEM



    MOQ: If TAC Logo

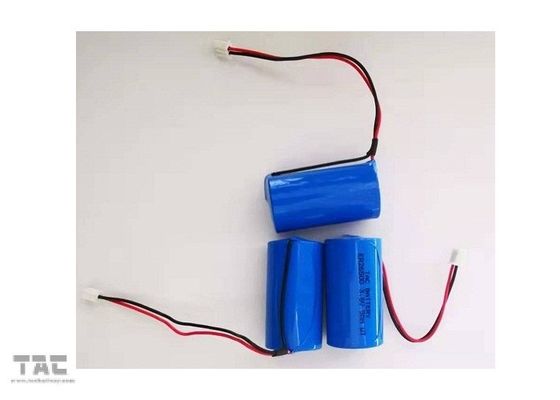

    Picture for 3.6v Lisocl2 Battery ER26500 9AH With connector for Water meter Ammeter
