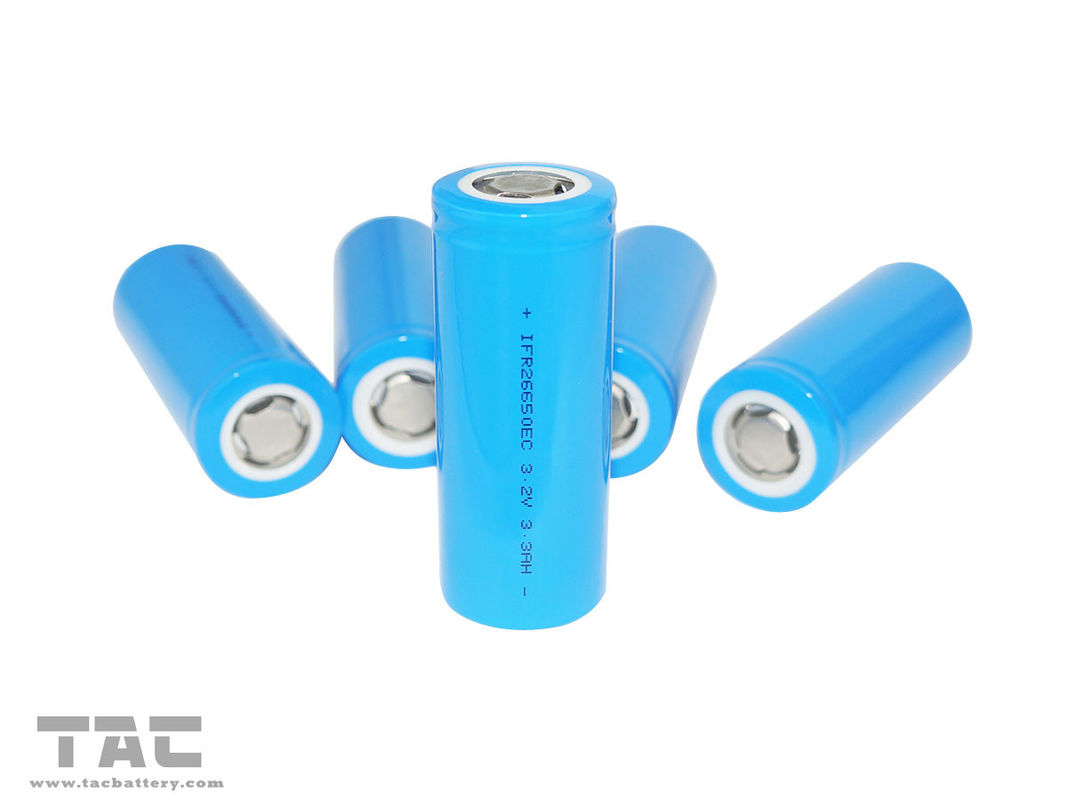

26650 3.2V LiFePO4 Battery 3200mAh High Rate 3C Energy Type For Scooter
Product Details:
Place of Origin: | Shenzhen zhuhai |
Brand Name: | TAC OEM ODM |
Certification: | MSDS REACH ROHS |
Model Number: | LiFePO4 26650 |
Payment & Shipping Terms:
Minimum Order Quantity: | 200PCS |
---|---|
Price: | usd2.0-3.0 |
Packaging Details: | Follow UN38.3 Rule |
Delivery Time: | 7 days for single cell 15-20 days for battery pack |
Payment Terms: | TT, LC, Paypal etc |
Supply Ability: | 50000 pack for one week |
Detail Information |
|||
Material: | Lifepo4 | Capacity: | 3200mah |
---|---|---|---|
Voltage: | 3.2v | High Rate: | 3c |
Pvc: | Blue | Warranty: | 12 Months |
Circle Life: | 2000 Times | PO NO: | PIFC0345 |
High Light: | lifepo4 battery pack,lifepo4 rechargeable batteries |
Product Description
26650 3.2V LiFePO4 Battery 3200mAh High rate 3C Energy Type For Scooter
Specification for 26650 3.2V LiFePO4 Battery 3200mAh High rate 3C Energy Type For Scooter
Items | Specifications |
Remark
|
|
Nominal Capacity
|
3200mAh |
0.2C Standard discharge
|
|
Minimum Capacity
|
3100mAh | ||
Nominal Voltage
|
3.2V |
Mean Operation Voltage
|
|
Delivery voltage
|
3.2~3.3V |
Within 10 days from Factory
|
|
Charge Voltage
|
3.65V±0.03V |
By standard charge method
|
|
Standard charging method
|
0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C |
|
|
Charge current
|
0.2C | 660mA |
Standard charge, charge time about 6h(Ref)
|
0.5C | 1600mA |
Rapid Charge, charge time about: 3h(Ref)
|
|
Standard discharging metho |
0.2C constant current discharge to2.0V, | ||
Cell Internal Impedance |
≤30mΩ |
Data for Charge And Discharge
Items | Specifications |
Remark
|
|
Maximum charge current
|
1C | 3200mA |
For continuous charging mod
|
Maximum discharge current
|
2C | 6600mA |
For continuous discharge mod
|
Operation Temperature and relative humidity Range
|
Charge |
0~45℃ 60±25%R.H. |
Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
|
Discharge |
-20~60℃ 60±25%R.H. |
||
Storage temperature for a long time
|
-20~25℃ 60±25%R.H. |
Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.
|
Application for 26650 3.2V LiFePO4 Battery 3200mAh High rate 3C Energy Type
Period of Warranty
The period of warranty is one year from the date of shipment. Great Power guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
Storage of the Batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over discharge.
Packing Detail
20pcs in one inner box ,8-10 box in one carton
Delivery
7-10 days after the order confirm, the battery will be shipped out by air or ocean with your require.
production line for Tac Battery
Test container or lifepo4 cell
