ER LiSOCl2 Battery For Ammeter ER17335 1800mAh 3.6V Stable Voltage
Product Details:
| Place of Origin: | Shenzhen zhuhai |
| Brand Name: | TAC |
| Certification: | REACH MSDS |
| Model Number: | ER17335 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | usd0.5 |
| Packaging Details: | 20 pcs each pallet / 1 pack for one box |
| Delivery Time: | 7-25 days after order confirm |
| Payment Terms: | T/T, LC, Paypal etc. |
| Supply Ability: | 100,000PCS/Day |
|
Detail Information |
|||
| Material: | LiSOCl2 | Model: | ER17335 1800MAH 3.6V |
|---|---|---|---|
| SIZE: | 123a | Rechargeable: | No |
| Capacity: | 1800mah | Voltage: | 3.6v |
| Life: | 10 Year | Pvc: | Blue Ore OEM |
| PACK: | Workable | ||
| High Light: | rechargeable lithium batteries,rechargeable li-on battery |
||
Product Description
ER Battery LiSOCl2 ER17335 1800mAh 3.6V Stable Voltage For Ammeter
Description:
1. The rated voltage is 3.6V, there are ER14250,ER14335,ER14505/ER14500,ER17335,ER18505,ER26500,ER34615
2. High voltage: open circuit voltage of 3.65V, voltage range of 3.3V to 3.6V that is changed with the change of the load, the end voltage is 2.0V or 2.5V.
3. Stable operation voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged,the capacity output is still more than 90%.
4. Wide temperature range: provide the widest temperature range among all existing batteries from -60℃ to 85℃
5. Excellent storage life: annual self-discharge rate is less than 1%. Fully-sealing structure and self-life is more than10years under room temperature.
Application:
*Intelligent water meter, Ammeter, Gas Meter
*Industrial PC computer, Computer RAM, CMOS Memory Backup Power Sources
*Medical Instruments, Radio Communication, Seismic Equipment, Digitally-controlled Machine, Taxi Meter, Telephone
*Underwater Weapon, Military Communication Transmitter-receiver, Portable communication Equipment, RMPS and more.
Packing Method:
70PCS/layer, 1000Pcs/Carton, Weight: 20KG Size: 44*27*33cm
Specification:
|
No |
Item |
Data |
|
1 |
Nominal voltage: |
3.6V |
|
2 |
Nominal capacity: |
1800mAh(1.2mA / 2.0V) |
|
3 |
Discharge end-voltage: |
2.0V |
|
4 |
Operating voltage : |
3.3V(330Ω, in 5s) |
|
5 |
Max constant discharge current: |
50mA |
|
6 |
Max. pulse current: |
100mA |
|
7 |
Ambient temperature range: |
-55~ +85℃ |
|
8 |
Storage life: |
≥10 year, Yearly self-discharge ≤ 1% |
Size: Max dimension : φ17.5mm× H33.5 mm
If you have bought ER battery from other supplier, pls take close attention to max size
in order to avoid the size over your space limit
Packing and delivery
Pictures:

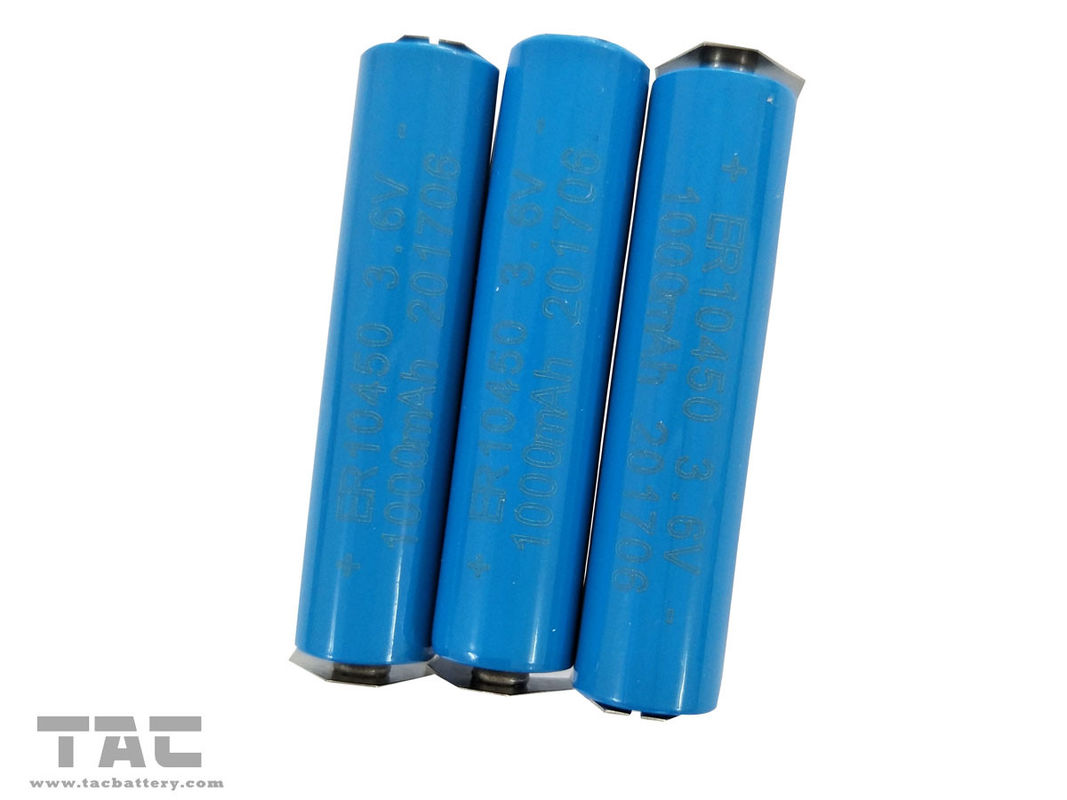

Stable Operation Voltage 3.6V LiSOCL2 Battery ER17335/1800mAh for Ammeter

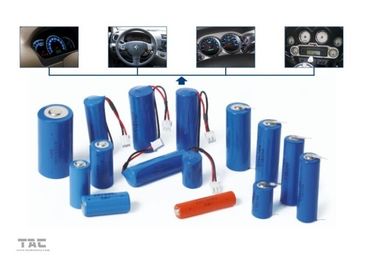

other size for ER Battery LiSOCl2 ER17335 1800mAh 3.6V Stable Voltage For Ammeter
model list for lisocl2 lithium battery
