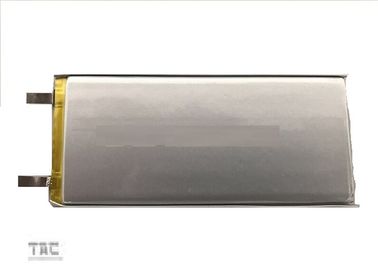

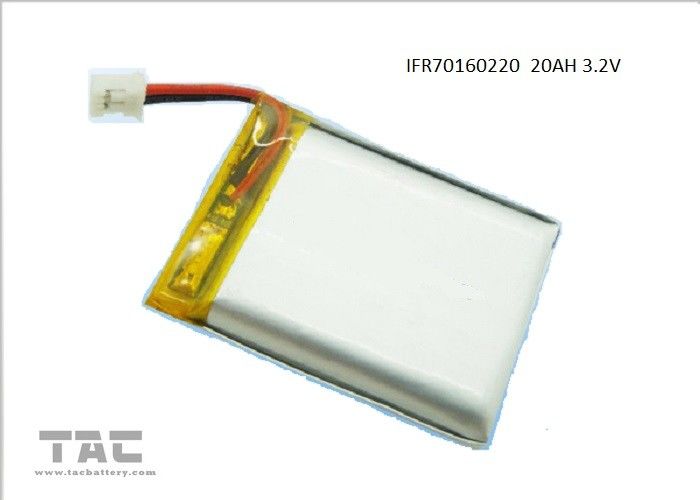

Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power

Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power

    • Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power
    • Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power
  • Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power

    Product Details:

    Place of Origin: SHENZHEN
    Brand Name: TAC
    Certification: MSDS REACH ROHS
    Model Number: LiFePO4 cells

    Payment & Shipping Terms:

    Minimum Order Quantity: 200PCS
    Price: usd 2.0 each pcs
    Packaging Details: 100pcs per carton
    Delivery Time: 7-25 days after order confirm
    Payment Terms: T/T
    Supply Ability: 100000Piece/Month
    Contact Now
    Detailed Product Description
    Material: Lifepo4 CELL Capacity: 20ah
    Voltage: 3.2v-3.65v Circle Life: 2000 Times
    Pack: Soft Pack Size: 7*160*220mm
    High Light:

    lithium iron phosphate battery pack

    ,

    lifepo4 rechargeable batteries

    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power


    Feature:

    1. The battery is soft pack ,and the material is LIFEPO4 belong rechargeable lithium-ion battery ,
    2. high capacity single cell ,Super Long circle life: 2000cycles,
    3. flexible prismatic type support OEM
    4. LiFePO4 Prismatic Battery Cell


    Specification for Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power

    Item

    Specification

    Remark

    Nominal Capacity

    20000mAh

    0.2C, CC(constant current)discharge to 2.0V cut

    off, at 23±3℃

     Nominal Voltage

     3.2V



    Standard Charging Current

    0.2C

    0~45℃0.2CCC(constant current)charged to

    3.6V,then CV(constant voltage 3.6V)charge till

    charge current ≤0.02C

    Max. Charging Current

    1.0C



    Charge Ending Voltage

    3.65V



    Standard Discharging Current

    0.2C

    0.2CCC(continue current)discharged to 2.0V

    Max. Continual Discharging
    Current

    2.0C



    Discharge Ending Voltage

    2.0V



    Standard Charging Time

    5~6h



    Rapid Charging Time

    1~2h



    Production Impedance

    ≤80mΩ

    AC Impedance 1KHz

    Battery Weight

    ≤ 235g

    No include box

    Size T*W*L 7*160*220MM







    Application for cell

    1. solar power system
    2. EV E-CAR,
    3. portable energy storage system
    4. Solar Electric Car

    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power 0

    Package For Cell

    The battery package meet lithium-ion battery transport rule as below

    Lithium batteries should be loaded on pallets to avoid strong vibration during handling. The vertical and horizontal sides of pallets should be protected by angle guards.

    Batteries must pass UN38.3 test requirements and drop packaging test of 1.2 meters.



    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power 1

    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power 2

    Delivery

    1. standard model :  7-10 days after the order confirmed
    2. OEM model; 25-30 days after the order confirmed
    3. There is over 200 model for different size  and capacity , and we support OEM ODM for LIFEPO4 Soft pack battery



    Certification

    We can support UN38.3 UL REACH ROHS and other specially certification

    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power 3



    Drawing For Soft Pack

    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power 4

    W: 160MM

    H:  220MM

    T: 70.5MM

    L: 50MM ( With customer's requrie )





    PCB Performance including below item



    Symbol



    Name



    VDET1

    Over-Charge detect voltage



    TVDET1

    Output delay of Over-Charge



    VDET2

    Over-discharge detect voltage



    TVDET2

    Output delay of Over-discharge



    IEC

    Excess Current threshold



    TVDET3

    Output delay of Excess Current



    IDD

    Supply current



    ISTANDBY

    Standby current





    Similar Production Picture

    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power 5

    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power 6

    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power 7



    And we can product various battery pack via cylindrical and prismatic cell  with customer's require



    Soft Pack 3.2V LiFePO4 Battery With Connector 70160220 20Ah for Solar Power 8
