2200WH Power Lithium Ion Battery Pack 48V 50AH  for Solar Hybrid Inverter

2200WH Power Lithium Ion Battery Pack 48V 50AH for Solar Hybrid Inverter

Product Details:

Place of Origin: SHENZHEN
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: ESS4850-E1-A-02

Payment & Shipping Terms:

Minimum Order Quantity: 50 PCS
Price: usd 2100-2200/wh
Packaging Details: 1pcs for one bag with UN38.3
Delivery Time: 7-25 days after order confirm
Payment Terms: T/T L/C paypal
Supply Ability: 10000Piece/Month
Get Best Price Contact Now

Detail Information

Model Name:: 48V50AH ICR18650 13S25P Capacity:: 50AH
Voltage: 48V Power: 2200WH
Meterial: Lithium-ion Whole Equipment Size: L 470 * W 440* T 88 Mm
Circle Life: Over 500times Warranty: 1 -3 Years Or Circle 500times
High Light:

lifepo4 battery pack

,

12 volt lithium battery

Product Description

Lithium-ion Batteries Pack 48V 50AH for Solar Hybrid Inverter

Specification for Lithium-ion Batteries Pack 48V 50AH for Solar Hybrid Inverter



No.



Item



General Parameter



Remark



1

Combination method



13S25P



Single cell 18650 2200mah 3.7v

2

Combination standard

for single cell

Capacity difference≤2%

Combination after 0.15C discharge to 2.5V



Resistance difference ≤10mΩ

Voltage difference≤8mV

3

Rated Capacity



Typical



50Ah

Standard discharge after Standard charge(package)



Minimum



50Ah

4

Nominal Voltage



48V

Mean Operation Voltage



5

Voltage at end of

Discharge



42V

Discharge Cut-off Voltage



6

Charging Voltage





54.6V



7

Internal Impedance



≤100mΩ

Internal resistance measured at AC 1KHZ after 50% charge



The measure must uses the new batteries that within one week after shipment and cycles less than 5 times



8

Standard charge



Constant Current 10A

Constant Voltage54.6V

0.01CA cut-off



Charge time : Approx 6 h



9

Standard discharge



Constant current:10A

end voltage 42V





10

Maximum Continuous Charge Current



50A





 Charge And Discharge Data

No.



Item



General Parameter



Remark



11

Maximum Continuous Discharge Current



50A



12

Operation Temperature Range



Charge: 0~45℃

60±25%R.H.

Bare Cell



Discharge: -20~60℃

13

Storage Temperature Range



Less than 12 months : -20~25℃



60±25%R.H.

at the shipment state



less than 3 months: -20~40℃



Less than 7 day : -20~65℃



14

Dimensions



L440*W440*T88(mm)

including the outer shell

15

Weight



18kg

including the outer shell

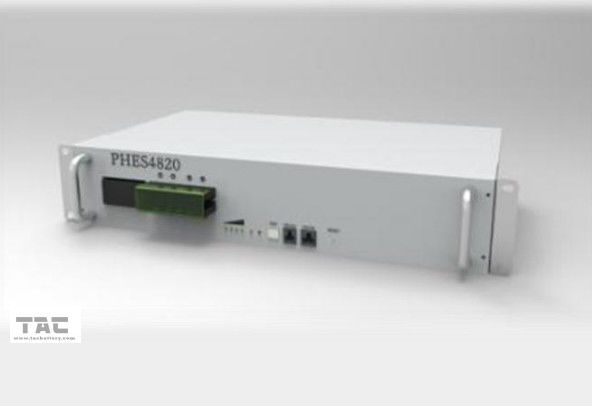

Whole System Size For Lithium-ion Batteries Pack 48V 50AH for Solar Hybrid Inverter

2200WH Power Lithium Ion Battery Pack 48V 50AH  for Solar Hybrid Inverter 0



Inner Stucture



2200WH Power Lithium Ion Battery Pack 48V 50AH  for Solar Hybrid Inverter 1





BMS Specification

1) The BMS is designed for 13 series lithium battery.

2) The BMS have all functions which are :

  1. Overcharge detection function
  2. Over discharge detection function
  3. Over current detection function
  4. Short detection function
  5. Balance function
  6. Temperature detection

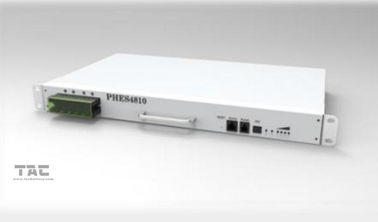

Other similar production

If you are designing new residential back up power with energy of bigger capacity , you can paralle two or more standard module, we can provide all equipment including of the battery storage charger bms inverter  or other components such us display unit , remote  etc with your require.



2200WH Power Lithium Ion Battery Pack 48V 50AH  for Solar Hybrid Inverter 2





Packing Picture

2200WH Power Lithium Ion Battery Pack 48V 50AH  for Solar Hybrid Inverter 3



one battery pack put in specially foam shelf and then putted into standard paper outer carton
