3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen

3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen

    • 3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen
    • 3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen
  • 3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen

    Product Details:

    Place of Origin: guangzhou
    Brand Name: TAC
    Certification: UL.ROHS
    Model Number: 3.2V IFR15270

    Payment & Shipping Terms:

    Minimum Order Quantity: 200pcs
    Price: usd0.65 (battery ) +usd 1.61 (charger)
    Packaging Details: 50 pcs in one box , 8 box in one carton
    Delivery Time: Sample with stock 2 days after T/T,Mass order with stock 7 days after T/T ,Without stock 45days
    Payment Terms: T/T/ LC / paypal
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    Nominal Voltage: 3.2V Rated Capacity: 2000mAh
    Material: Lifepo4 Circle Life: 1200 Times
    Warrange: 12 Months Size: D: 15MM H: 27MM
    Other Name: RCR 2 Rechargeable: Yes
    Charger: Battery With Charger Pvc: Blue Or OEM ,

    3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen

    Feature for 3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen

    1. Most customer called this model RCR2 or CR2, the production No for TAC BATTERY is IFR15270 200MAH 3.7V The battery is rechargeable battery , instead of primary CR2 battery, the rate voltage is 3.2V and the normal capacity is 200mAh
    2. The cycle life is about 2000 times , if you charge and discharger one times every day, the battery can keep 5 years



    Battery Specification for 3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen

    the production including of the battery and suitable charger



    No.



    Item



    General Parameter



    Remark



    8

    Fast charge



    Constant Current 1C5A

    Constant Voltage 3.65V

    0.01 C5Acut-off




    9

    Fast discharge



    Constant current 1 C5A

    end voltage 2.0V




    10

    Maximum Continuous Charge Current



    1 C5A
    11

    Maximum Continuous Discharge Current



    1.5C5A
    12

    OperationTemperature Range



    Charge: 0~45℃

    60±25%R.H.

    Bare Cell



    Discharge: -10~60℃
    13

    StorageTemperature Range



    Less than 1 year: -20~25℃



    60±25%R.H.

    at the shipment state



    less than 3 months: -20~40℃



    High: 27.0±0.5 mm
    14

    Cell Dimension



    Diameter:15.0±0.5mm







     The Lifepo4 Battery Cell Main Applications :

    1. Utility meter (water, electricity, gas meter, AMR)

    2. Alarm or security equipment (smoke alarm system, detector)

    3. GPS tracking

    4. Teal time clock

    5. Digital control machine

    6. Military

    7. Remote monitoring systems

    8. Car electronics

    9. Camera



    Specification for The Suitable Charger for 3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen



    ITEM DESCRIPTION
    INPUT
    • Input voltage: 100-240Va.c.

    1.2 Input: current: 40mA

    OUTPUT

    2.1 Output voltage: 3.6Vd.c.

    2.2 Output loading: 100mA

    CHARACTERISTIC

    3.1 Suitable for Lithiuom Phosphate battery.

    3.2 Charge 1 CR2 Lithiuom Phosphate rechargeable battery.

    • Fast smart charge with the function of constant current and constant Voltage.





    OPERATING INSTRUCTION

    4.1 Insert the battery into the battery compartment with

    correct direction of polarity.

    4.2 Plug the charger into a.c. outlet.

    4.3 LED indicates the status of the battery.

    4.4 Red LED indicates the battery are properly

    charging.

    Green LED indicates the battery are fully charged.

    4.5 Battery can be took out for use or kept to trickle charge when they are fully charged.

    ENVIRONMENTAL

    5.1 Operating temperature: 0℃ to 35℃ ambient

    5.2 Storage temperature: -20℃ to 80℃

    5.3 Operating humidity:20% to 90% RH

    5.4 Storage humidity: 20% to 90% RH









    CAUTION

    6.1 Indoor use only. Do not expose the charger to rain

    or moisture.

    6.2 The charger is intended for use with Lithiuom Phosphate battery only. Attempt to charge other type of batteries may cause personal injury and damage the charger.







    Picture for 3.0V CR2 200mAh Lithium battery of LiFePO4 battery cell for Meridian pen

    1. Battery: 50pcs in one inner box , 8 box in one carton
    2. charger : 2 pcs in one inner box , 50 box in one carton

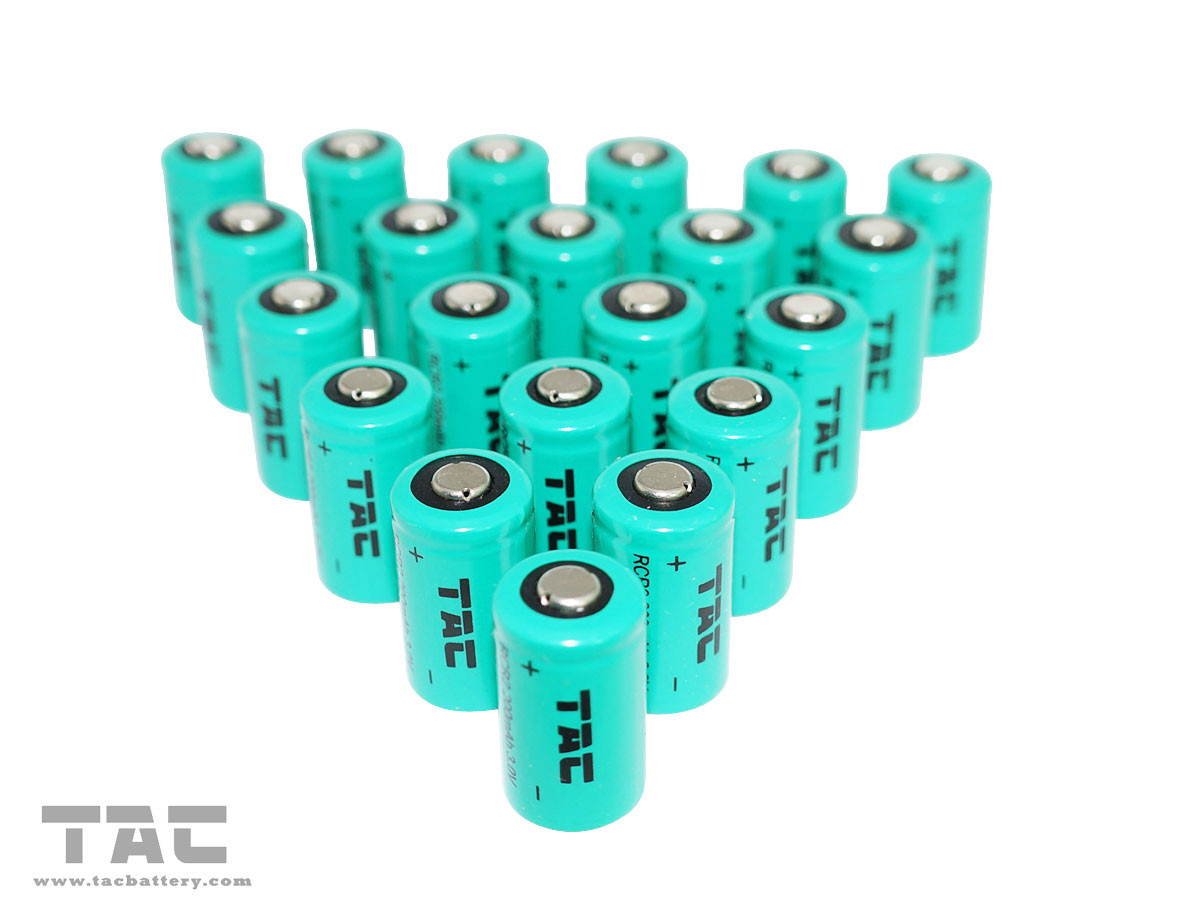

    LFP battery

    3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen

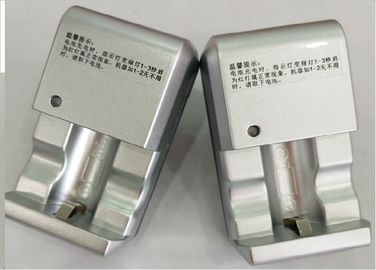

    The charger Photo

    3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen





    The packaging for Bulk Lifepo4 Cell











    Li-ion battery



    3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen

    The photos for charger of lithium RCR battery

    3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen



    Lead Time

    The battery is normal model we stock it continue

    but the charger is customized, need 25-30 days

    You can issue the order for battery and charger dividually



    Other Similar Production

    3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen



    Guangzhou Industry Base Photo



    3v Lithium Battery Rechargeable CR2 cell With Charger for Meridian Pen
