• 2300mah 3.2V LiFePO4 Battery / Lithium iron Phosphate Battery IFR26650 For Back Up Power
  • 2300mah 3.2V LiFePO4 Battery / Lithium iron Phosphate Battery IFR26650 For Back Up Power
2300mah 3.2V LiFePO4 Battery / Lithium iron Phosphate Battery IFR26650 For Back Up Power

2300mah 3.2V LiFePO4 Battery / Lithium iron Phosphate Battery IFR26650 For Back Up Power

Product Details:

Place of Origin: Shenzhen zhuhai
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: PIFP0048

Payment & Shipping Terms:

Minimum Order Quantity: 200PCS
Price: 1.5-2 usd
Packaging Details: Follow UN38.3 Rule
Delivery Time: 7 days for single cell 15-20 days for battery pack
Payment Terms: TT, LC, Paypal, etc
Supply Ability: 50000 pack for one week
Get Best Price Contact Now

Detail Information

Material: Lifepo4 Model: IFR26650
Capacity: 2300mah Voltage: 3.2V
Circle Life: 2000times Warranty: 12 Months
With Tag: Cathnode And Anode Size: D: 26MM H:65MM
Pvc: Blue Or Customized
High Light:

lifepo4 battery pack

,

lifepo4 rechargeable batteries

Product Description

2300mah 3.2V LiFePO4 Battery / Lithium iron Phosphate Battery IFR26650 For Back Up Power

3.2V LiFePO4 Battery / Lithium iron Phosphate Battery IFR26650 For Back Up Power

Quick Detail:



1)Welding the tabs on the battery 's pole

2)the thickness of the tabs is 0.5mm

3) The battery Can be assembled with M3 screw

Specification For 3.2V LiFePO4 Battery / Lithium iron Phosphate Battery IFR26650 For Back

No.

Items

Specifications

1

Charge cut-off voltage

3.65V

2

Nominal voltage

3.2V

3

Minimal capacity

2300mAh @ 1C Discharge

4

Nominal capacity

2350mAh @ 1C Discharge

5

Charge current

1C

6

Standard charging method

1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C

7

Charging time

Standard charge: 2.0 hours Ref

8

Max. charge current

5C

9

Max. continue discharge current

20C (Cell skin temperature cannot exceed 80°C)

10

Discharge cut-off voltage

2.0V

11

Operating temperature

Charging:      -10°C ~ 45°C
Discharging: -20°C ~ 60°C
(Cell skin temperature cannot exceed 80°C)

12

Storage temperature/humidity

Temperature -10°C ~ +35°C
Humidity 65%±20%RH
(Recommended to store 23 ± 5°C for long term storage)

13

Cell Weight

78.0g±1.0g

14

Cell Dimension

Length:       65.0±0.3 mm
Width:         26.2±0.2 mm

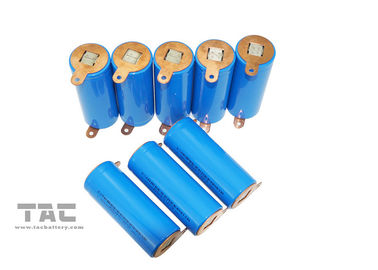

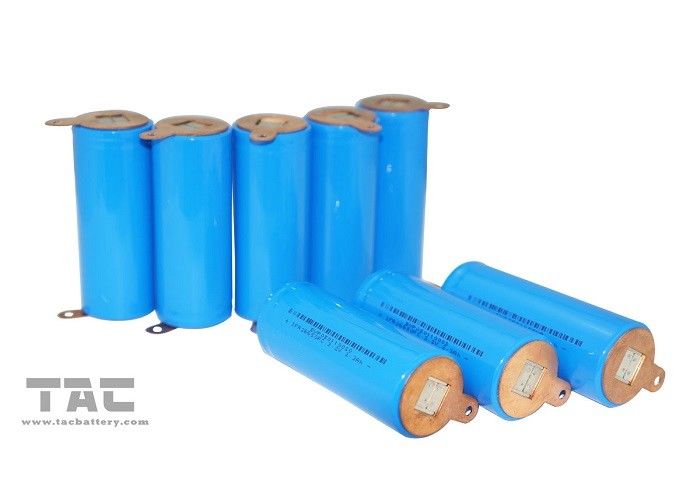

Lithium iron Phosphate Battery IFR26650 3.2V For Back Up Power Pictures:

Both of cathode and anode welding the tags

Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power





Packing Detail:

In order to avoid short circle , the battery put specially sponge pallet.
six pcs in one little box , and 10 box in one carton


Rechargeable IFR26650 3.2V LiFePO4 Battery 2350mAh With Tabs For Back Up Power
 2300mah 3.2V LiFePO4 Battery / Lithium iron Phosphate Battery IFR26650 For Back Up Power 2




Delivery date


15 days after the customer confirmed the Pi and arrange the payment.


The Similar Production for LIFEPO4 26650 Battery Pack

2300mah 3.2V LiFePO4 Battery / Lithium iron Phosphate Battery IFR26650 For Back Up Power 3

HK TAC support multiple voltage and capacity lifepo4 battery Pack

2300mah 3.2V LiFePO4 Battery / Lithium iron Phosphate Battery IFR26650 For Back Up Power 4



Storing the Batteries and Maintain Suggestion

The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per three months to prevent over-discharge



Period of Warranty



The period of warranty is 18 months from the date of shipment. TAC guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.



Handling of battery

Never short circuit battery. It generates very high current which causes heating of the battery and may cause electrolyte leakage, gassing or explosion that is very dangerous.

The poles may be easily short-circuited by putting them on conductive surface.

         Such outer short circuit may lead to heat generation and damage of the battery.

An appropriate circuitry with PCM shall be employed to protect accidental short circuit of the battery pack.







Production Line for Lifepo4 Battery Pack

2300mah 3.2V LiFePO4 Battery / Lithium iron Phosphate Battery IFR26650 For Back Up Power 5
