Home Products3.2V LiFePO4 Battery

Aluminum Case LiFePO4 Battery Pack 3.2V 50AH For Solar Street Light

Aluminum Case LiFePO4 Battery Pack 3.2V 50AH For Solar Street Light

    • Aluminum Case LiFePO4 Battery Pack 3.2V 50AH For Solar Street Light
    • Aluminum Case LiFePO4 Battery Pack 3.2V 50AH For Solar Street Light
  • Aluminum Case LiFePO4 Battery Pack 3.2V 50AH For Solar Street Light

    Product Details:

    Place of Origin: guangzhou
    Brand Name: TAC
    Certification: UL/Rohs
    Model Number: PLFC0925

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 units
    Price: usd68-70
    Packaging Details: 1 unit/carton
    Delivery Time: 15-20 days aftet the customer confirm the order
    Payment Terms: TT/Paypal
    Supply Ability: 1000 unit/month
    Contact Now
    Detailed Product Description
    Material: Lifepo4 Battery Pack Capacity: 50ah
    Voltage: 3.2v Circle Life: 1200times
    Outer Shell: Aluminum Case Warranty: 12 Mohths
    Color: Sliver Size: 29*136*208mm
    MOQ: 5000 Pcs For Mass Production

    Aluminum Case LiFePO4 Battery Pack 3.2V 50AH For Solar Street Light

    Specification for  Aluminum Case LiFePO4 Battery Pack 3.2V 50AH For Solar Street Light



    No. Items Specifications

    Remark

    1

    Nominal Capacity



    50Ah

    0.2C Standard discharge



    2

    Minimum Capacity



    49Ah
    3

    Nominal Voltage



    3.2V

    Mean Operation Voltage



    4

    Delivery voltage



    3.2~3.4V

    Within 10 days from Factory



    5

    Charge Voltage



    3.65V±0.03V

    By standard charge method



    6

    Standard charging method



    0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C



    7

    Charge current



    0.5C

    Standard charge, charge time:4h(Ref)



    1C

    Rapid Charge, charge time:4h(Ref)



    8

    Standard discharging method



    0.2C constant current discharge to 2.5V,
    9

    Cell Internal Impedance



    ≤5mΩ

    Internal resistance measured at AC 1KHZ after 50% charge



    Current Standard For Charge And Discharge



    No. Items Specifications

    Remark



    10

    Maximum charge current



    1C

    For continuous charging mod



    11

    Maximum discharge current



    1C

    For continuous discharge mod



    12

    Operation Temperature and relative humidity Range



    Charge

    10~45℃

    60±25%R.H.

    Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery



    Discharge

    -20~45℃

    60±25%R.H.

    13

    Storage temperature for a long time



    -20~25℃

    60±25%R.H.

    Do not storage exceed half year.Must charge once when storage for half year.Must charge the battery which with protect circuit when storage for three mouths.







    Component Drawing

    Aluminum Case LiFePO4 Battery Pack 3.2V 50AH For Solar Street Light



    Size For Battery Pack



    NO Items Units: mm Remark
    1 C/T: 29 Max.
    2 B/W 136 Max.
    3 A/L 208 Max.
    4 D/Distance of screw pivot 70+-0.5
    5 Hight of screw pivot 15.5mm




    Application

    This lifepo4 battery pack is suitable for solar street light , and the battery pack with the double-screw bolt, the customer can install it to the equipment easy.



    Feature

    1. Deep discharge and long life 1200 times
    2. safer design
    3. the customer can install it for various equipment
    4. lighter and small than normal lifepo4 cylindrical cell



    Normal Package

    put one set in one foam bag , protect by sponge

    and 5 set in one export carton

    Aluminum Case LiFePO4 Battery Pack 3.2V 50AH For Solar Street Light



    The battery pack can shrink with blue pvc if you need

    Aluminum Case LiFePO4 Battery Pack 3.2V 50AH For Solar Street Light

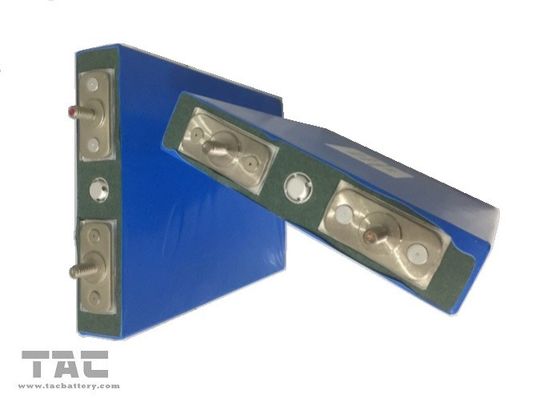

    Maybe you are interested in more size and capacity



    Aluminum Case LiFePO4 Battery Pack 3.2V 50AH For Solar Street Light

             Period of Warranty

    The period of warranty is half a year from the date of shipment. TAC guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.





    Storage of the Batteries



    The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
    We recommend that batteries be charged about once per half a year to prevent over discharge.
