ROHS Lithium-ion Battery Pack for UPS 48V 10AH with Shell And BMS
Product Details:
| Place of Origin: | SHENZHEN |
| Brand Name: | TAC OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | 48V10Ah-E2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 PCS |
|---|---|
| Price: | usd 300-500 |
| Packaging Details: | 1pcs for one bag with UN38.3 |
| Delivery Time: | 7-25 days after order confirm |
| Payment Terms: | T/T, L/C, PAYPAL |
| Supply Ability: | 5000 set /MONTH |
|
Detail Information |
|||
| Model Name: | 48V10AH | Combination Method: | 13S5P |
|---|---|---|---|
| Charging Voltage: | 54.6V | Internal Impedance: | ≤300mΩ |
| Maximum Continuous Charge Current: | 10Ah | Pack Size: | L292*W480*T44(mm) |
| PO NO: | PLIP0678 | Circle Life: | 300-500 Times |
| Warranty: | 12 Months | Housing: | Metal |
| Highlight: | lithium iron phosphate battery pack,12 volt lithium battery |
||
Product Description
Lithium-ion Batteries Pack for UPS 48V10AH with Shell And BMS
Specification for Single Cell Inside of Shell
|
No. |
Item |
Specification |
|
1 |
Model name |
ES4810-E2-A-02 |
|
2 |
Cell Model name |
ICR18650 3.7V 2.2AH |
|
3 |
Nominal Voltage |
3.7V |
|
4 |
Voltage at end of discharge |
3.0V |
|
5 |
Charging Voltage |
4.2V |
|
6 |
Internal Impedance |
≤60mΩ |
Specification for Lithium-ion Batteries Pack for UPS 48V10AH with Shell And BMS
| No. | Item | Specification |
| 1 | Combination method | 13S5P |
| 2 | Rated Capacity | 10AH |
| 3 | Nominal Voltage | 48V |
| 4 | Voltage at end of Discharge | 42V |
| 5 | Charging Voltage | 54.6V |
| 6 | Internal Impedance | ≤300mΩ |
| 7 | Maximum Continuous Charge Current | 10A |
| 8 | Maximum Continuous Discharge Current | 10A |
| 9 | Dimensions | L292*W480*T44(mm) |
| 10 | Weight | Approx 7 KG |
BMS Performance for Equipment:
|
Item
|
Symbol
|
Content
|
| Over charge Protection | VDET1 |
Over charge detection voltage
|
| tVDET1 |
Over charge detection delay time
|
|
| VREL1 |
Over charge release voltage
|
|
|
Over discharge protection
|
VDET2 | Over discharge detection voltage |
| tVDET2 | Over discharge detection delay time | |
| VREL2 | Over discharge release voltage | |
|
Cell balance
|
Bleed Start Point | |
| Bleed Current | ||
|
working current
|
Continuous Output Discharging Current | |
| Over current protection | IDP | Over current detection current |
| tVDET3 | Detection delay time | |
| Release condition | ||
| Short protection | Detection condition | |
| Release condition | ||
|
Interior resistance
|
RDS |
Main loop electrify resistance
|
|
Current consumption
|
IDD | Current consume in Idle mode |
| Temperature protection |
Discharge:65℃ Charging:65℃ |
Feature
1. The cell material is Lithium-ion battery. cheap than LiFePO4
2. High level NCM 18650 2200mAh 13S5P for ES4810 48V 10Ah rechargeable lithium-ion battery packs.
3. High capacity for above 10Ah cut off 42V.
4. The cycling life 800 times (80%DOD).
5. Take in handrail convenient and easy use
6. No memory effect, Low self-discharge rate.
7. Good storage characteristic and good high temp performance.
8. Environmental friendly and Pass the ROHS
Application
Packing
One set battery pack protected by stronger foam , furthermore, put into the export carton
or shipped out by wood pallet if customer need
Delivery Date
Normally the standard production will be shipped out 25-30 days ater the buyer pay for the PI
Similar Production For UPS
4820
4850
4870
And more

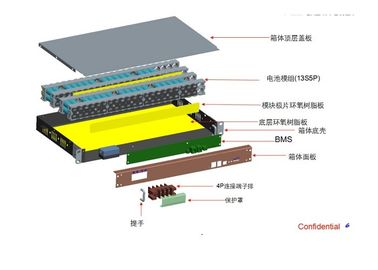

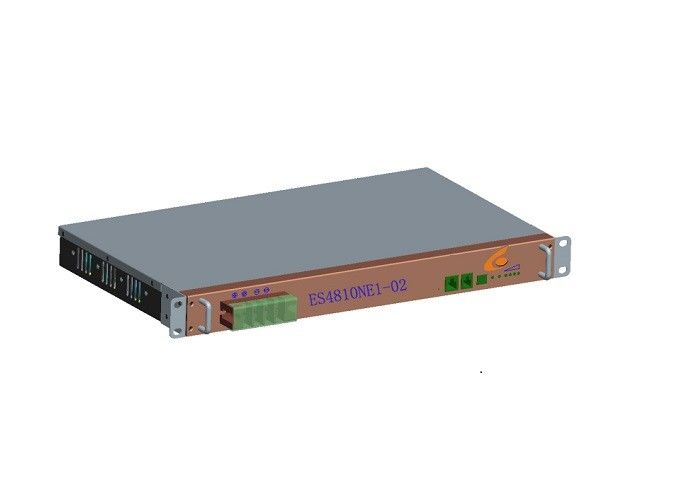

Battery Pack Picture
