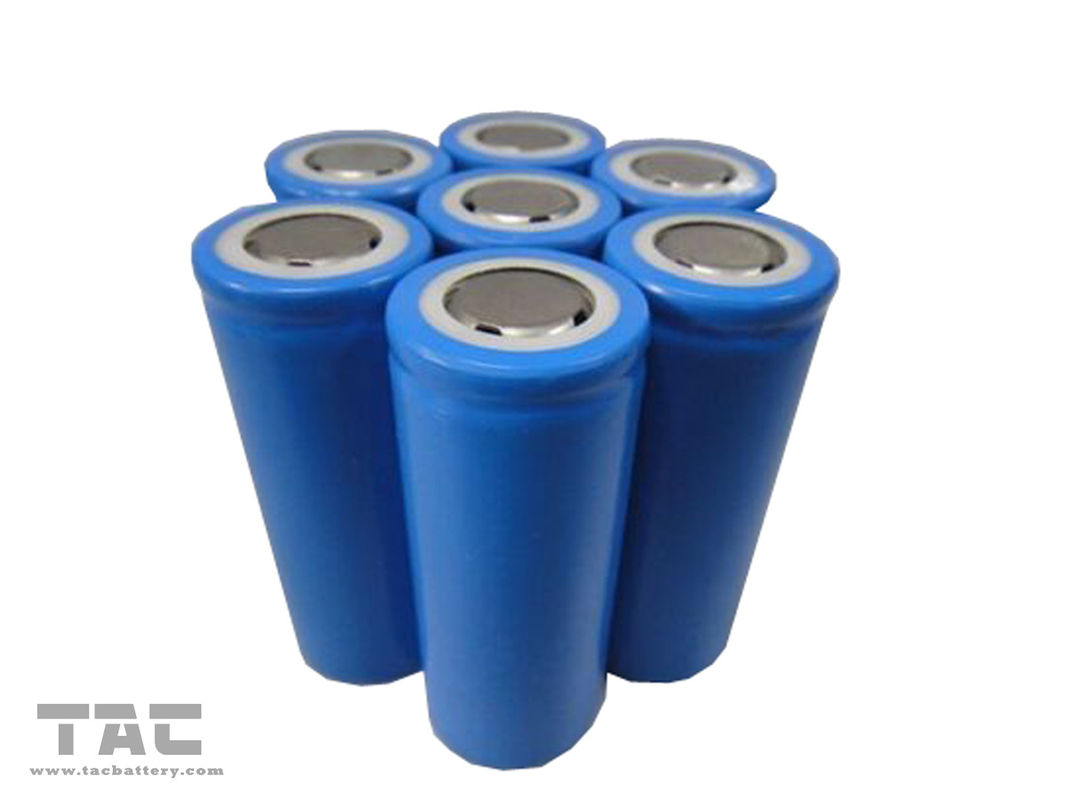

Energy Type Lithium ion 3.2V LiFePO4 Battery 26650 3600mAh for E-bike

Energy Type Lithium ion 3.2V LiFePO4 Battery 26650 3600mAh for E-bike

    • Energy Type Lithium ion  3.2V LiFePO4 Battery 26650 3600mAh for E-bike
    • Energy Type Lithium ion  3.2V LiFePO4 Battery 26650 3600mAh for E-bike
  • Energy Type Lithium ion  3.2V LiFePO4 Battery 26650 3600mAh for E-bike

    Product Details:

    Place of Origin: shenzhen
    Brand Name: TAC
    Certification: UL, ROHS
    Model Number: PIFC0904

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: USD2.0
    Packaging Details: 6pcs/box 96pcs/carton
    Delivery Time: 14days
    Payment Terms: TT, LC, Pay pal etc
    Supply Ability: 100,000pcs/Day
    Contact Now
    Detailed Product Description
    Type: Energy Type Li-ion 3.2V LiFePO4 Battery Voltage: 3.2V
    Capacity: 3600mah Circle Life: 2000times
    Cell Dimension: 26.5* 65.0MM Warranty: 12 Months
    Application: E-bike Pvc: Blue Or OEM
    Certification: ROHS Ul

    Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3600mAh for E-bike battery pack



    Features for Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3600mAh for E-bike battery pack

    1. Diverse capacity for IFR266503000mAh/3200mAh/3300mAh/3400mAh/3600mAh for your choice
    2. The highest capacity 3600mah  for Model IFR26650 cell
    3. Low self discharge can keep 80% original capacity after stock 12 months
    4. Suitable for a wide variety of applications and system designs.
    5. Proven performance in the toughest conditions, combining durability, reliability, and safety
    6. Offers an excellent combination of price-performance.



    Application:

    1. Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack
    2. Portable high power devices
    3. Stationary battery backup systems
    4. Grid stabilization energy storage systems
    5. Commercial truck and bus hybrid electric vehicles (HEVs)



    Specification for Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack



    No.

    Items

    Specifications

    1

    Charge cut-off voltage

    3.65V

    2

    Nominal voltage

    3.2V

    3

    Minimal capacity

    3600mAh @ 0.2C Discharge

    4

    Nominal capacity

    3550mAh @ 0.2C Discharge

    5

    Charge current

    1C

    6

    Standard charging method

    1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C

    7

    Charging time

    Standard charge: 2.0 hours Ref

    8

    Max. charge current

    2C

    9

    Max. continue discharge current

    10A (Cell skin temperature cannot exceed 80°C)

    10

    Discharge cut-off voltage

    2.0V

    11

    Operating temperature

    Charging:      -10°C ~ 45°C

    Discharging: -20°C ~ 60°C

    (Cell skin temperature cannot exceed 80°C)

    12

    Storage temperature/humidity

    Temperature -10°C ~ +35°C

    Humidity 65%±20%RH

    (Recommended to store 23 ± 5°C for long term storage)

    13

    Cell Weight

    80.0g±1.0g

    14

    Cell Dimension

    Length:       65.0±0.3 mm

    Width:         26.2±0.2 mm



    External Packing for Battery cell

    put the thin paper board separated the cell one by one to keep the safe

    put the anti-tarnish paper on the top and bottom of box .

    20pcs for each box , and 6 box for each carton



    Energy Type Lithium ion  3.2V LiFePO4 Battery 26650 3600mAh for E-bike

    Energy Type Lithium ion  3.2V LiFePO4 Battery 26650 3600mAh for E-bike



    Similar Production Pictures:

    Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack



    Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack

    Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack





    Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack

    Energy Type Lithium ion  3.2V LiFePO4 Battery 26650 3600mAh for E-bike



    More size of  for Lifepo4 Cell



    Energy Type Lithium ion  3.2V LiFePO4 Battery 26650 3600mAh for E-bike



    Most of the model have passed UL1642 UN38.3 certification

    Energy Type Lithium ion  3.2V LiFePO4 Battery 26650 3600mAh for E-bike



    Energy Type Lithium ion  3.2V LiFePO4 Battery 26650 3600mAh for E-bike
