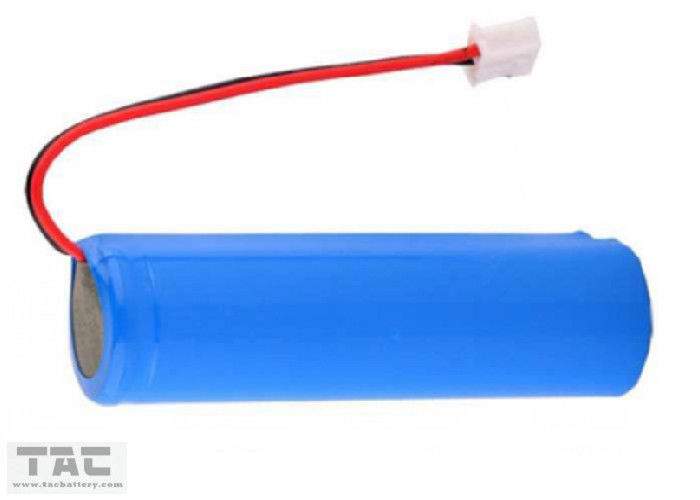

18650 LiFePO4 Battery Pack 3.2v 1.5ah for Car Tracking Device and Car Lighting

18650 LiFePO4 Battery Pack 3.2v 1.5ah for Car Tracking Device and Car Lighting

    • 18650 LiFePO4 Battery Pack 3.2v 1.5ah for Car Tracking Device and Car Lighting
    • 18650 LiFePO4 Battery Pack 3.2v 1.5ah for Car Tracking Device and Car Lighting
  • 18650 LiFePO4 Battery Pack 3.2v 1.5ah for Car Tracking Device and Car Lighting

    Product Details:

    Place of Origin: guangzhou
    Brand Name: TAC
    Certification: RoHS/UL
    Model Number: IFR18650

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: usd 1.5 -2.5
    Packaging Details: 10pcs/box; no more than 10KG/carton or customized
    Delivery Time: 20-30 days
    Payment Terms: T/T,l/c Paypal
    Supply Ability: 100000pcs/month
    Contact Now
    Detailed Product Description
    PO NO: PIFC0705 Capacity: 1500mah
    Voltage: 3.2V Circle Life: 2000 Times
    Wire: UL1007 22 # Or Customized Connector: JST-HR-3P
    Warranty: 1 Year Pvc: Blue Or Customized
    Printing: With Customer Require MOQ: 500PCS
    Pcb: Pcb With NTC

    18650 LiFePO4 Battery Pack 3.2v 1.5ah for Car Tracking Device and Car Lighting

    Feature

    1. 100% truth capacity 1500mah for LiFePO4 battery
    2. Deep circle 2000 times circle life can used 3-5 years
    3. The battery with PCB ,and the pcb with NTC
    4. Three wire ,red white and black


    Base Data Sheet for 18650 LiFePO4 Battery Pack 3.2v 1.5ah for Car Tracking Device and Car Lighting

    No.

    Item

    General Parameter

    Remark

    1

    Standard Capacity

    Typical

    1500mAh

    Standard discharge(0.2C5A) after Standard charge

    Minimum

    1450mAh

    2

    Standard Voltage

    3.2V

    Mean Operation Voltage

    3

    Voltage at end of
    Discharge

    2.5V

    Discharge Cut-off Voltage

    4

    Charging Voltage

    3.65±0.03V



    5

    Internal Impedance

    ≤50mΩ

    Internal resistance measured at AC 1KHZ after 50% charge
    The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

    6

    Weight

    46±3g



    7

    Standard charge

    Constant Current 0.2C5A
    Constant Voltage 4.2V
    0.01 C5A cut-off



    8

    Standard discharge

    Constant current 0.2C5A
    end voltage 2.5V



    9

    Fast charge

    Constant Current 1C5A
    Constant Voltage 3.65V
    0.01 C5A cut-off



    10

    Fast discharge

    Constant current 1.5 C5A
    end voltage2.5V



    11

    Maximum Continuous Charge Current

    1 C5A



    12

    Maximum Continuous Discharge Current

    1.5C5A



    13

    Operation Temperature Range

    Charge: 0~45℃

    60±25%R.H.
    Bare Cell

    14



    Discharge: -20~60℃



    15

    Storage Temperature Range

    Less than 1 year: -20~25℃

    60±25%R.H.
    at the shipment state

    16



    less than 3 months: -20~40℃



    17



    Less than 7 day : -20~65℃



    18

    Pack  Dimension

    High:66.0mm

    Max Dimension

    19



    Diameter: 19.2 mm





    Battery Pack Dimensions 18650 LiFePO4 Battery Pack 3.2v 1.5ah for Car Tracking Device

    18650 LiFePO4 Battery Pack 3.2v 1.5ah for Car Tracking Device and Car Lighting

    NO Items Units: mm Remark
    1 Diameter/ D1 18.8 Max
    2 Diameter/ D2 23.5 Max
    3 Height/ H 68.5 Max
    4 Cable Length/ L 53±5



    Bom List for 18650 LiFePO4 Battery Pack



    NO Part name Quantity/ Unit/ Remark
    1 Cell/ 1 ea Great Power
    2 Solder/ 0.04 g Lead Free
    3 PCM 1 Ea P-1S1605AP
    4 Wire 3 Ea UL1007#22AWG
    5 Connector 1 Ea JST-PH-3P


    Application

    This battery is proper design for car tracking device , the battery pack with NTC component can control the temperature when the battery discharged.
    The Lifepo4 battery have wide range for application , including of below
    1. Power tools, lawn mowers and vacuum cleaners
    2. Cameras and photographic equipment Computers
    3. Portable telephone sets
    4. Solar Lighting equipment
    5. Uninterruptible Power Supply
    6. Communications and electric equipment
    7. Emergency lighting equipment

    Payment and Delivery

    Payment Terms: Tac can accepted T/T or L/C at Sight, paypal.
    FOB Port: Shenzhen Guangzhou Shanghai Hongkong with your require
    Lead Time: Sample Order 7-10 days, OEM  Order  15~25days





    Packing For Battery Pack

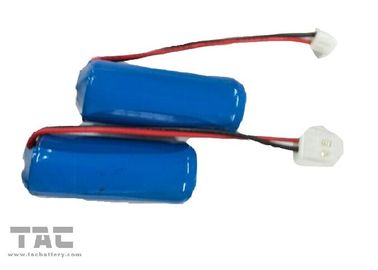

    18650 LiFePO4 Battery Pack 3.2v 1.5ah for Car Tracking Device and Car Lighting

    18650 LiFEPO4 Cell Can Assembled Various Battery Pack

    18650 LiFePO4 Battery Pack 3.2v 1.5ah for Car Tracking Device and Car Lighting



    Q&A

    Q: Are you manufacturer or trading company?
    A: HKTAC is over sale for famous manufacturer called Greatpower Group, assembly entity for battery packs, and a distributor of branded cells and battery accessories based on customer’s needs.
    Q: Can you agree with OEM/ODM battery pack ?
    A: Yes, OEM/ODM battery packs are warmly welcome.
    Q: Do you have battery packs for famous company
    A: Yes, we are supplier for Philips Honywell etc
    Q: What information do you need to make a customized battery pack?
    A: We need the details below:
    1. Max Size of the battery pack so that we can suggestion the reasonable cell
    2. Capacity of the Battery pack.
    3. Voltage of the battery pack.
    4. Max discharge current.
    5. Cable and connector types you need.
    6. BMS performance require
    Q: Can you print my logo on the battery jacket or housing?
    A: Yes, custom logo service is available.
    Q: Is sample order acceptable?
    A: sure, sample orders for testing quality is reasonable and acceptable.
    Q: How should I place an order?
    A: Pls just confirm our PI if you need
    Q: How should I pay? What modes of payment do you accept?
    A: T/T, Paypal, LC
    Q: Are renowned international brand battery cells available?
    A: Yes international brand cells are available, please contact us for details.
    Q: How do you arrange shipment for batteries?
    A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
    Q: Do you have the documents required for battery shipments?
    A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
