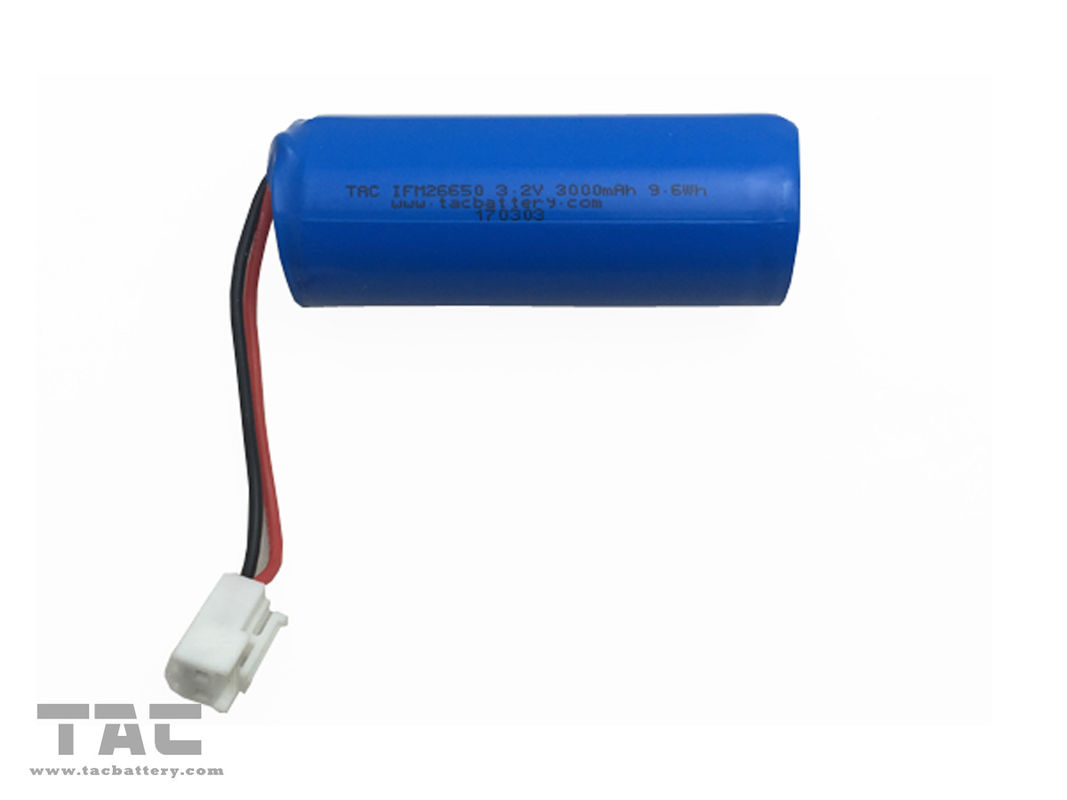

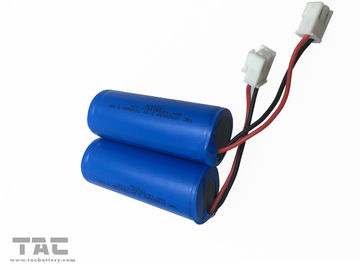

26650 LiFePO4 Battery Pack 3.2V 3000mah for Car Tracking System and Lamp
Product Details:
| Place of Origin: | Shenzhen zhuhai |
| Brand Name: | TAC OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | liFEPO4 26650 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | usd 3.5 |
| Packaging Details: | Follow UN38.3 Rule |
| Delivery Time: | 7 days for single cell 15-20 days for battery pack |
| Payment Terms: | T/T,l/c Paypal |
| Supply Ability: | 50000 pack for one week |
|
Detail Information |
|||
| PO NO: | PIFC0706 | Capacity: | 3000mah |
|---|---|---|---|
| Voltage: | 3.2V | Circle Life: | 2000 Times |
| Wire: | UL1007 22 # Or Customized | Connector: | JST-HR-3P |
| Warranty: | 1 Year | Pvc: | Blue Or Customized |
| Printing: | With Customer Require | MOQ: | 500PCS |
| Pcb: | Pcb With NTC | ||
| Highlight: | lithium iron phosphate battery pack,lifepo4 rechargeable batteries |
||
Product Description
26650 LiFePO4 Battery Pack 3.2v 3000mah for Car Tracking System and Lamp
Feature For 26650 LiFePO4 Battery Pack 3.2v 3000mah for Car Tracking System and Lamp
- 100% full capacity with IEC standard 3000mah for 26650 LiFePO4 battery
- Long circle life 2000 times the battery can used 3-5 years if the buyer charging and discharging 1 time each day
- The battery with PCB ,and the pcb with NTC
- Specially wire design meet NTC require
Specification for 26650 LiFePO4 Battery Pack 3.2v 3.0ah for Car Tracking System
| No. | Item | General Parameter | Remark | |
| 1 | Standard Capacity | Typical | 3000mAh | Standard discharge(0.2C5A) after Standard charge |
| Minimum | 2950mAh | |||
| 2 | Standard Voltage | 3.2V | Mean Operation Voltage | |
| 3 | Voltage at end of Discharge |
2.5V | Discharge Cut-off Voltage | |
| 4 | Charging Voltage | 3.65±0.03V | ||
| 5 | Internal Impedance | ≤40mΩ | Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles less than 5 times |
|
| 6 | Weight | 120±3g | ||
| 7 | Standard charge | Constant Current 0.2C5A Constant Voltage 4.2V 0.01 C5A cut-off |
||
| 8 | Standard discharge | Constant current 0.2C5A end voltage 2.5V |
||
| 8 | Fast charge | Constant Current 1C5A Constant Voltage 3.65V 0.01 C5A cut-off |
||
| 9 | Fast discharge | Constant current 1.5 C5A end voltage2.5V |
||
| 10 | Maximum Continuous Charge Current | 1 C5A | ||
| 11 | Maximum Continuous Discharge Current | 1.5C5A | ||
| 12 | Operation Temperature Range | Charge: 0~45℃ | 60±25%R.H. Bare Cell |
|
| Discharge: -20~60℃ | ||||
| 13 | Storage Temperature Range | Less than 1 year: -20~25℃ | 60±25%R.H. at the shipment state |
|
| less than 3 months: -20~40℃ | ||||
| Less than 7 day : -20~65℃ | ||||
| 14 | Pack Dimension | High:66.0mm | Max Dimension | |
| Diameter: 27 mm | ||||
Engineering Structure Drawing
| NO | Items | Units: mm | Remark | |
| 1 | Diameter/ | D1 | 26.8 | Max |
| 2 | Diameter/ | D2 | 28.5 | Max |
| 3 | Height/ | H | 68.5 | Max |
| 4 | Cable Length/ | L | 53±5 | |
Pack Component for 26650 LiFePO4 Battery Pack 3.2v 3000mah for Car Tracking System and Lamp
| NO | Part name | Quantity/ | Unit/ | Remark |
| 1 | Cell/ | 1 | ea | Tac |
| 2 | Solder/ | 0.04 | g | Lead |
| 3 | PCM | 1 | Ea | P-1S1605AP |
| 4 | Wire | 3 | Ea | UL1007#22AWG |
| 5 | Connector | 1 | Ea | JST-PH-3P |
Application
The model is proper design for car tracking system , the battery pack with NTC component can control the temperature when the battery discharged.
The Lifepo4 battery have wide range for application as below
Payment and Delivery
Payment Terms: All of T/T or L/C at Sight, paypal are workable
FOB Port: Shenzhen Guangzhou Shanghai Hongkong with your require base on shipped by ocean, Shenzhen Guangzhou base on shipped by air
Lead Time:
Lead Time:
7-10 days for normal pack order base on samples,
15~25days for OEM order base on MOQ
Packing Manner for Battery Pack
Single cell for IFR32650 3.2V
Similar Production The ESS Made By Lifepo4 26650 Cell
Other Size for Lifepo4 Battery Pack
Want to Know more details about this product
