Product Details:

Place of Origin: Shenzhen zhuhai
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: 92108250Fe 20Ah 3.2V

Payment & Shipping Terms:

Minimum Order Quantity: 200PCS
Price: usd 50-60
Packaging Details: Follow UN38.3 Rule
Delivery Time: 7 days for single cell 15-20 days for battery pack
Payment Terms: T/T
Supply Ability: 50000 pack for one week
Get Best Price Contact Now

Detail Information

Material: LiFePO4 Battery Capacity: 20ah
Voltage: 3.2v Circle Life: 2000times
Warranty: 1 Year Cell Size: T: 9.2 * W:108 *H250MM
Type: Prismatic Type Assembled: Workable
PO NO: PLFC0715
High Light:

lifepo4 battery pack

,

lithium iron phosphate battery pack

Product Description



LiFePO4 Battery Prismatic Type 3.2V 20AH 92108250 For Energy Storage System



Quick Detail:



Place of Origin:

Guangdong China (Mainland)

Brand Name:

TAC

Model Name:

3.2V 192108250Fe 20Ah

Other Name:

LiFePO4 20Ah Battery

Nominal Voltage

3.2V

Nominal Capacity:

20Ah

Size:

: Max   9.2(T)*108(W)*250(H) mm

Weight:





Product Specification for LiFePO4 Battery Prismatic Type 3.2V 20AH 92108250 For Energy Storage System



No.



Item



General Parameter



Remark



1

Rated Capacity



Typical



20Ah

Standard discharge(0.2 C5A) after Standard charge



Minimum



19.5Ah
2

Nominal Voltage



3.2V

Mean Operation Voltage



3

Voltage at end of

Discharge



2.0V

Discharge Cut-off Voltage



4

Charging Voltage



3.65V
5

Internal Impedance



≤40mΩ

Internal resistance measured at AC 1KHZ after 50% charge



The measure must uses the new batteries that within one week after shipment and cycles less than 5 times



6

Standard charge



Constant Current 0.2C5A

Constant Voltage 3.65V

0.01 C5Acut-off




7

Standard discharge



Constant current 0.2 C5A

end voltage 2.0V







Charge and Discharge Performance



No.



Item



General Parameter



Remark



8

Fast charge



Constant Current 1C5A

Constant Voltage 3.65V

0.01 C5Acut-off




9

Fast discharge



Constant current 1 C5A

end voltage 2.0V




10

Maximum Continuous Charge Current



1 C5A
11

Maximum Continuous Discharge Current



1.5C5A
12

Operation Temperature Range



Charge: 0~45℃

60±25%R.H.

Bare Cell



Discharge: -10~60℃
13

Storage Temperature Range



Less than 1 year: -20~25℃



60±25%R.H.

at the shipment state



less than 3 months: -20~40℃



High: 27.0±0.5 mm
14

Cell Dimension









Feature

1. High capacity 20ah for one cell, you can assembled higher capacity with less single cell

2. 3.2V standard voltage meet various equipment

3. Wide range of operating temperature; 0-45 degree,

4. Long operating time 2000times , usually keep 3-5 year

6. Low self-discharge rate (less than 2% per year at 20°C).the battery remain capacity is 70% for original capacity after stock one year



Main Applications :

The high capacity lifepo4 cell can be used for various EV E-CAR  portable ESS

solar power solutions

Charge station

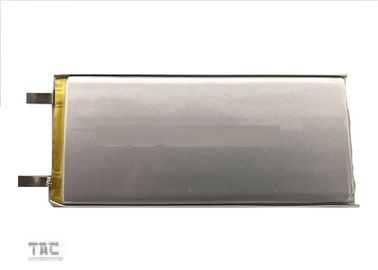

Prismatic Type 20AH 92108250 3.2V LiFePO4 Battery For Energy Storage System 0



Packing for LiFePO4 Battery Prismatic Type 3.2V 20AH 92108250 For Energy Storage System:

The battery put in plastic pallet one by one avoid short circle

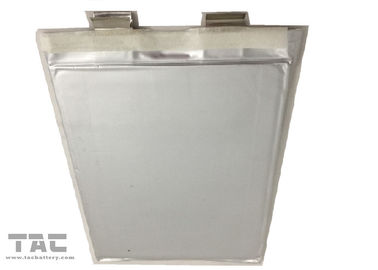

Prismatic Type 20AH 92108250 3.2V LiFePO4 Battery For Energy Storage System 1

Prismatic Type 20AH 92108250 3.2V LiFePO4 Battery For Energy Storage System 2



Available Model for the LIFePO4 Button Cell:



model size capacity
LPF92108250 3.2V 20AH 9.2*108*250mm 20ah
LPF85200235 3.2V 21AH 8.5*200*235mm 21ah
LPF09185190 3.2V 25AH 9*185*190mm 25ah
LPF27135206 3.2V 60AH 2.7*135*206mm 60ah

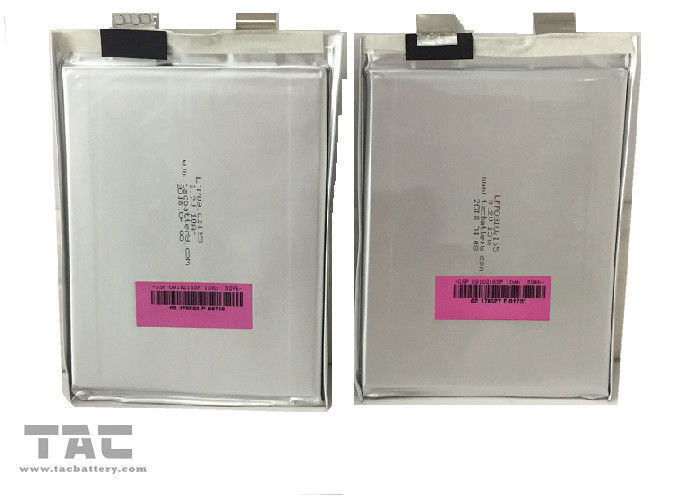

Battery Picture Similar As below

Prismatic Type 20AH 92108250 3.2V LiFePO4 Battery For Energy Storage System 3



Cautions in use

To ensure proper use of the battery please read the manual carefully before using it.

   . Handling

  •  Do not expose to, dispose of the battery in fire.
  • Do not put the battery in a charger or equipment with wrong terminals connected.
  • Avoid shorting the battery
  • Avoid excessive physical shock or vibration.
  • Do not disassemble or deform the battery.
  • Do not immerse in water.
  • Do not use the battery mixed with other different make, type, or model batteries.
  • Keep out of the reach of children.

     . Storage

  • Store the battery in a cool, dry and well-ventilated area.

     . Disposal

  • Regulations vary for different countries.
  • Dispose of in accordance with local regulations.



Battery operation instruction

Discharging current

The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the over sized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.



Electric discharge temperature

The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.



Storing the Batteries

The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, the discharge capacity will decrease sharply.



Period of Warranty

Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a long period of time without being used. In addition, if the various usage conditions such as discharge, ambient temperature, are not maintained within the specified ranges the life expectancy of the battery may be shortened or the device in which the battery is used may be damaged by electrolyte leakage. Please change the battery in time.
