Portable ESS LiFePO4 Battery Prismatic Soft Pack 3.2V 21AH 85200235

Portable ESS LiFePO4 Battery Prismatic Soft Pack 3.2V 21AH 85200235

Product Details:

Place of Origin: Shenzhen zhuhai
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: lifepo4 85200235 21Ah 3.2V

Payment & Shipping Terms:

Minimum Order Quantity: 200PCS
Price: usd 5.1-10
Packaging Details: Follow UN38.3 Rule
Delivery Time: 7 days for single cell 15-20 days for battery pack
Payment Terms: T/T
Supply Ability: 50000 pack for one week
Get Best Price Contact Now

Detail Information

Material: LiFePO4 Battery Capacity: 21ah
Voltage: 3.2v Circle Life: 2000times Base On DOD 80%
Warranty: 1 Year Cell Size: T:8.5 * W:200 *H235MM
Type: Prismatic Type PO NO: PLFC0716
High Light:

lithium iron phosphate battery pack

,

lifepo4 rechargeable batteries

Product Description

Portable ESS LiFePO4 Battery Prismatic Soft Pack 3.2V 21AH 85200235



Portable ESS LiFePO4 Battery Prismatic Soft Pack 3.2V 21AH 85200235

Quick Detail:



Place of Origin:

Guangdong China (Mainland)

Brand Name:

TAC

Model Name:

 IFR85200235 21Ah 3.2V

Other Name:

LiFePO4 21Ah  Soft Pack Cell

Nominal Voltage

3.2V

Nominal Capacity:

21Ah

Size:

Max   8.5(T)*200W)*235(H) mm

Weight:





Product Specification



No.



Item



General Parameter



Remark



1

Rated Capacity



Typical



21Ah

Standard discharge(0.2 C5A) after Standard charge



Minimum



20.5Ah
2

Nominal Voltage



3.2V

Mean Operation Voltage



3

Voltage at end of

Discharge



2.5V

Discharge Cut-off Voltage



4

Charging Voltage



3.65V
5

Internal Impedance



≤40mΩ

Internal resistance measured at AC 1KHZ after 50% charge



The measure must uses the new batteries that within one week after shipment and cycles less than 5 times



6

Standard charge



Constant Current 0.2C5A

Constant Voltage 3.65V

0.01 C5Acut-off




7

Standard discharge



Constant current 0.2 C5A

end voltage 2.0V







Charge and Discharge Performance



No.



Item



General Parameter



Remark



8

Fast charge



Constant Current 1C5A

Constant Voltage 3.65V

0.01 C5Acut-off




9

Fast discharge



Constant current 1 C5A

end voltage 2.0V




10

Maximum Continuous Charge Current



1 C5A
11

Maximum Continuous Discharge Current



1.5C5A
12

OperationTemperature Range



Charge: 0~45℃

60±25%R.H.

Bare Cell



Discharge: -10~60℃
13

StorageTemperature Range



Less than 1 year: -20~25℃



60±25%R.H.

at the shipment state



less than 3 months: -20~40℃



14

Cell Dimension



Max 8.5(T)*200W)*235(H) mm





Feature for Portable ESS LiFePO4 Battery Prismatic Soft Pack 3.2V 21AH 85200235

1. High capacity 20ah for one cell, you can assebmled higher capacity with less single cell

2. 3.2V standard voltage meet various equipment

3. Wide range of operating temperature; 0-45 degree,

4. Long operating time 2000times , usually keep 3-5 year

6. Low self-discharge rate (less than 2% per year at 20°C).the battery remain capacity is 70% for original capacity after stock one year



Main Applications :

The high capacity lifepo4 cell can be used for various EV E-CAR  protable ESS

Back up for  boat: refrigerators, ice maker, dishwasher, electronics

RF device

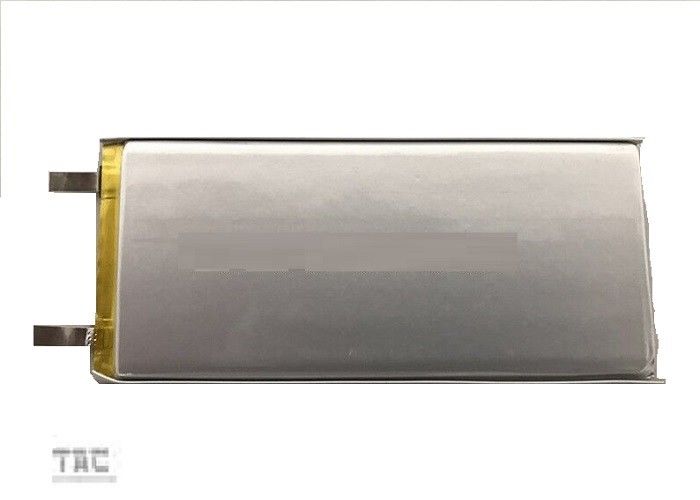

Portable ESS LiFePO4 Battery Prismatic Soft Pack 3.2V 21AH 85200235 0



Packing Manner

The battery put in plastical pallet one by one avoid short circle

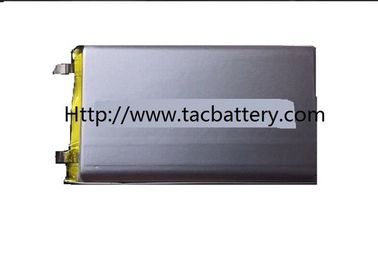

Portable ESS LiFePO4 Battery Prismatic Soft Pack 3.2V 21AH 85200235 1



Available Model for the LIFePO4 Button Cell:



modle size capacity
LPF92108250 3.2V 20AH 9.2*108*250mm 20ah
LPF85200235 3.2V 21AH 8.5*200*235mm 21ah
LPF09185190 3.2V 25AH 9*185*190mm 25ah
LPF27135206 3.2V 60AH 2.7*135*206mm 60ah



Similar Production for LiFePO4 Battery Prismatic Soft Pack 3.2V 21AH 85200235 For Portabel ESS

Portable ESS LiFePO4 Battery Prismatic Soft Pack 3.2V 21AH 85200235 2



Cautions in use

To ensure proper use of the battery please read the manual carefully before using it.

   . Handling

  •  Do not expose to, dispose of the battery in fire.
  • Do not put the battery in a charger or equipment with wrong terminals connected.
  • Avoid shorting the battery
  • Avoid excessive physical shock or vibration.
  • Do not disassemble or deform the battery.
  • Do not immerse in water.
  • Do not use the battery mixed with other different make, type, or model batteries.
  • Keep out of the reach of children.

     . Storage

  • Store the battery in a cool, dry and well-ventilated area.

     . Disposal

  • Regulations vary for different countries.
  • Dispose of in accordance with local regulations.



Battery operation instruction

Discharging current

The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the over sized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.



Electric discharge temperature

The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.



Storing the Batteries

The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, the discharge capacity will decrease sharply.



Period of Warranty

1 year  from the goods were shipped out from facory ,Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a long period of time without being used. In addition, if the various usage conditions such as discharge, ambient temperature, are not maintained within the specified ranges the life expectancy of the battery may be shortened or the device in which the battery is used may be damaged by electrolyte leakage. Please change the battery in time.
