Home ProductsLiSOCl2 Battery

Blue Jacket Non - Rechargeable Lithium Battery ER18505 3600mAh For Instrument

Blue Jacket Non - Rechargeable Lithium Battery ER18505 3600mAh For Instrument

    • Blue Jacket Non - Rechargeable Lithium Battery ER18505 3600mAh For Instrument
    • Blue Jacket Non - Rechargeable Lithium Battery ER18505 3600mAh For Instrument
  • Blue Jacket Non - Rechargeable Lithium Battery ER18505 3600mAh For Instrument

    Product Details:

    Place of Origin: GUANGZHOU
    Brand Name: TAC
    Certification: UL CE
    Model Number: ER18505

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 times
    Price: usd 2.0
    Packaging Details: 50pcs for one plastic tray
    Delivery Time: 5-8 days after order confirm
    Payment Terms: payment 100% VUA T/T
    Supply Ability: 50000000 each month
    Contact Now
    Detailed Product Description
    Material: Lithium Battery Capacity: 3600mah
    Voltage: 3.6v Primary: Non-rechargeable
    Long Life: 10 Year Size: 18*50.5mm
    Pvc: Blue Jacket

    Non-rechargeable Lithium Battery ER18505 3600mAh for Instrument

    Features:

    1 .Non-rechargeable Li-S0Ci2 Lithium Battery

    2. High energy density than normal lithium-ion battery

    3. More than 20 models standard size

    4. Pollution-free passed Reach Rohs

    5. Long shelf life, stable chemical raw material

    6. Long operating life over 10 years

    7.Good consistency for cell in Capacity, resistance, Voltage, platform time



    Specification for Non-rechargeable Lithium Battery ER18505 3600mAh for Instrument

    No.



    Item



    General Parameter



    Remark

    1

    Rated Capacity

    3600mAh

    Discharge to 2.0V 2mA

    (2mA2.0V)

    2

    Nominal Voltage

    3.6V

    Mean Operation Voltage

    3

    Voltage at end of

    Discharge

    2.0V

    Discharge Cut-off Voltage

    4

    Max dimension



    φ19mm×H51mm



    5

    Max weight

    33g



    4

    Standard discharge

    Discharge to 2.0V 2mA



    5

    Max constant discharge current

    100mA



    6

    Max. pulse current

    200mA



    7

    Ambient temperature range

    -55~ +85℃



    8

    Storage life

    ≥10 year

    Yearly self-discharge ≤ 1%



    3.6V 1/2AA Li-soci2 Lithium Battery ER14250S 900mAh for Medical Device

    Features For 3.6V 1/2AA Li-soci2 Lithium Battery ER14250S 900mAh for Medical Device

    1 .Li-S0Ci2 Lithium Battery ER14250S 3.6V 900mAh with tabs

    2. High energy density

    3. High working voltage for single battery cells

    4. Pollution-free

    5. Long shelf life

    6. Long operating life

    7.Capacity, resistance, Voltage, platform time consistency is good

    Quick Detail:

    Model Number: ER14250S 3.6V 900mAh Brand Name: TAC-ERC0856
    Nominal Voltage: 3.6V Rated Capacity: 900mAh
    Type: LiSOCL2 Battery Size: φ14.5mm×H25.5mm
    Weight: 9.5g Certification UL,ROHS
    Warranty: 12months



    3.6V1/2AA Li-soci2 Lithium Battery ER14250S 900mAh Specification:



    No.



    Item



    General Parameter



    Remark
    1

    Rated Capacity



    900mAh Discharge to 2.0V 1mA
    2

    Nominal Voltage



    3.6V



    Mean Operation Voltage



    3

    Voltage at end of

    Discharge



    2.0V



    Discharge Cut-off Voltage



    4

    Max dimension



    φ14.5mm×H25.5mm




    5

    Max weight



    9.5g




    6

    Standard discharge



    Discharge to 2.0V 1mA




    7

    Max constant discharge

    current



    10mA




    8

    Max. pulse current



    50mA




    9

    Ambient temperature range



    -40~ +150℃




    10

    Storage life



    ≥10 year



    Yearly self-discharge ≤ 1%





    Size: Max dimension : φ14.5mm× H25.5 mm

    If you have bought  ER battery from other supplier, pls take close attention to max size

    in order to avoid the size over your space limit



    Application



    1. Medical Device
    2. Utility meters (gas, water, electricity meters)
    3. Safe alarm system , Monitoring systems
    4. Signal lights and the post indicator transfer
    5. Medical equipment
    6. Memory back-up power
    7. Military Radar and Medical Instrument etc
    8. GPS system



    Packing for 3.6V1/2AA Li-soci2 Lithium Battery ER14250S 900mAh for Medical Device



    the battery pack with blue PVC jacket

    specially sponge pallet fix each battery

    standard 7 level strong paper carton

    Blue Jacket Non - Rechargeable Lithium Battery ER18505 3600mAh For Instrument



    Characteristic Curves



    Blue Jacket Non - Rechargeable Lithium Battery ER18505 3600mAh For Instrument

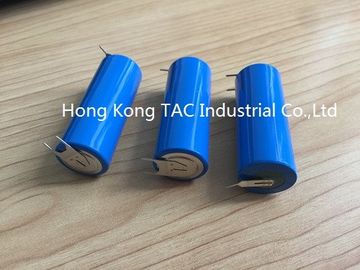

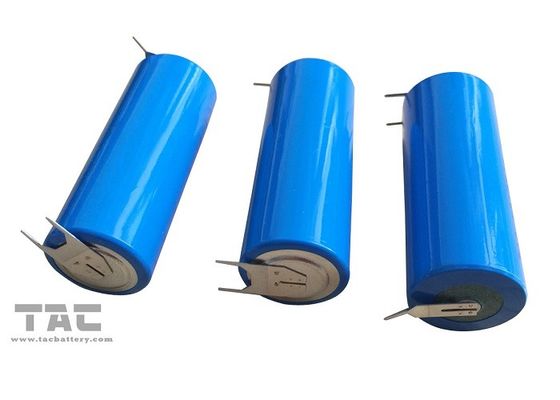

    Battery Picture

    Blue Jacket Non - Rechargeable Lithium Battery ER18505 3600mAh For Instrument

    Performance Testing



    Unless other request s, all tests are carried out in ambient temperature 20±5℃.

    Tests should be made within 45 days after receipt of the batteries.



    ER Production List

    Blue Jacket Non - Rechargeable Lithium Battery ER18505 3600mAh For Instrument



    Lead Time

    We keep stock for this model continue

    So we can delivery the cargo within3-5 days after the buyer arrange the payment

    30 days for OEM order











    Application

    1. Medical Device and Medical equipment

    2. Utility meters (gas, water, electricity meters)

    3. Safe alarm system , Monitoring systems

    4. Signal lighting and the post indicator transfer

    5. Memory back-up power

    6. GPS system



    Packing for Non-rechargeable Lithium Battery ER18505 3600mAh for Instrument



    Blue pvc jacket with printing ,also support OEM jacket

    specially sponge pallet to fix the battery one by one

    7 level strong paper for standard export carton





    Characteristic Curves

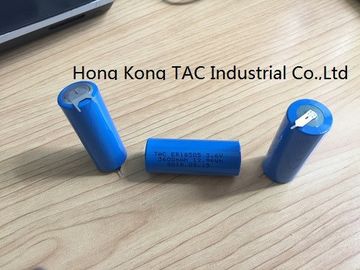

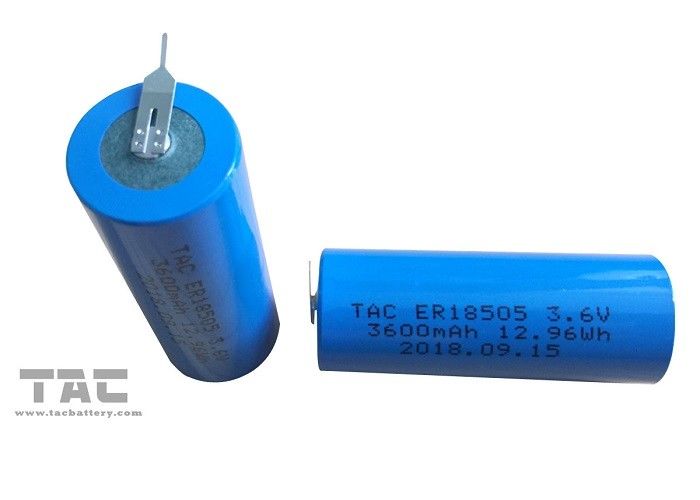

    Battery Picture

    Blue Jacket Non - Rechargeable Lithium Battery ER18505 3600mAh For Instrument

    Blue Jacket Non - Rechargeable Lithium Battery ER18505 3600mAh For Instrument

    PER Production List

    Blue Jacket Non - Rechargeable Lithium Battery ER18505 3600mAh For Instrument





    Lead Time

    We keep stock for this model continue

    So we can delivery the cargo within3-5 days after the buyer arrange the payment

    30 days for OEM order



    Storage

    -The batteries should be stored at 10℃~25℃(never exceed 30℃), 45%~75%RH.

    -The batteries should not be stored next to heat sources nor in direct sunlight. The storage area should be clean,cool,dry,ventilated and weatherproof.

    -The height to which batteries may be stacked is clearly dependent on the strength of the packaging.

    As a general rule,this height should not exceed 1.5m for cardboard packages nor 3m for wooden cases.

    -Store and display batteries in their original package. The batteries may be short-circuited or damaged if been unpacked and stacked mussily.
