• 3.2V Volt LiFePO4 Battery Pack AA 14500 For GPS Device With Temperature Control Function
  • 3.2V Volt LiFePO4 Battery Pack AA 14500 For GPS Device With Temperature Control Function
3.2V Volt LiFePO4 Battery Pack AA 14500 For GPS Device With Temperature Control Function

3.2V Volt LiFePO4 Battery Pack AA 14500 For GPS Device With Temperature Control Function

Product Details:

Place of Origin: Shenzhen zhuhai
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: IFR14500 600MAH 3.2V

Payment & Shipping Terms:

Minimum Order Quantity: 200PCS
Price: USD 2-3
Packaging Details: Follow UN38.3 Rule
Delivery Time: 7 days for single cell 15-20 days for battery pack
Payment Terms: T/T, L/C
Supply Ability: 50000 pack for one week
Get Best Price Contact Now

Detail Information

Material: LiFePO4 Battery Voltage: 3.2v
Capactiy: 600mah Circle Life: 2000 Times
Warranty: 1 Year Pcb: With NTC
PVC: Blue Application: GPS Deivce For Car
PO NO: PIFP0880
High Light:

lifepo4 battery pack

,

lifepo4 rechargeable batteries

Product Description

3.2V Volt LiFePO4 Battery Pack AA 14500 For GPS Device With Temperature Control Function

Quick Detail For 3.2V Volt LiFePO4 Battery Pack AA 14500 For GPS Device With Temperature Control Function
1. Nominal Voltage: 3.2V; Charge Voltage: 3.65V±0.03V.
2. Nominal Capacity: 600mAh.
3.Application for road studs, LED light, flash light

Specification of 3.2V Volt LiFePO4 Battery Pack AA 14500 For GPS Device With Temperature Control Function

No. Items Specifications Remark
1 Nominal Capacity 600mAh 0.2C Standard discharge
2 Minimum Capacity 550mAh
3 Nominal Voltage 3.2V Mean Operation Voltage
4 Delivery voltage 3.25~3.34V Within 10 days from Factory
5 Charge Voltage 3.65V±0.03V By standard charge method
6 Standard charging method 0.5C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C
7 Charge current 0.5C 300mA Standard charge, charge time about 3h(Ref)
1.0C 600mA Rapid Charge, charge time about: ::2h(Ref)
8 Standard discharging method 0.2C constant current discharge to 2.5V,
9 Cell Internal Impedance ≤80mΩ Internal resistance measured at AC 1KHZ after 50% charge
10 Maximum charge current 1C For continuous charging mod
11 Maximum discharge current 1C For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity)

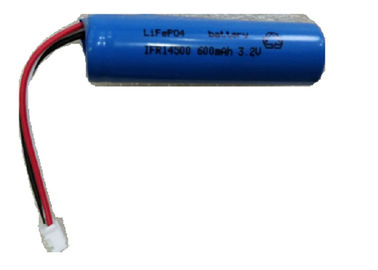

Structure For Battery Pack:
3.2V Volt LiFePO4 Battery Pack AA 14500 For GPS Device With Temperature Control Function 0

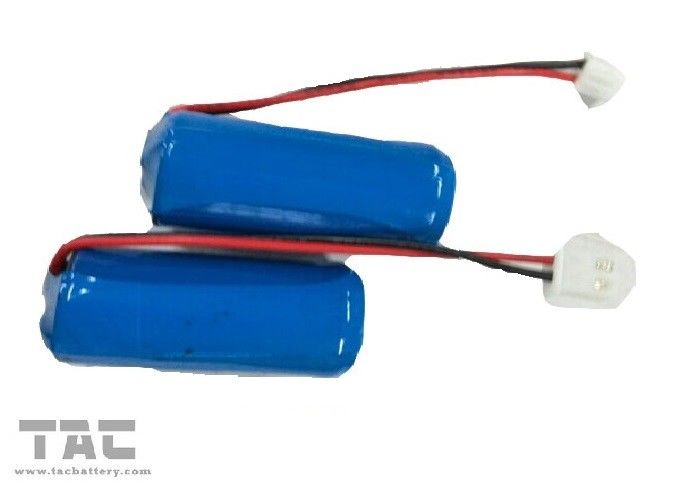

Pictures For 3.2V Volt LiFePO4 Battery Pack AA 14500 For GPS Device With Temperature Control Function

3.2V Volt LiFePO4 Battery Pack AA 14500 For GPS Device With Temperature Control Function 1

Application for 3.2V Volt LiFePO4 Battery Pack AA 14500 For GPS Device With Temperature Control Function



  1. Emergency light, Flashlight, Electric toothbrush, Electric cleaner
  2. Communication Equipment: Cell phone, PHS phone, bluetooth phone, interphone
  3. Information Device: Notebook, Tablet PC, PDA, MID, Portable Fax Machine
  4. Audiovisual Equipment: Bluetooth speaker, Digital camera, Vedio Camera, Portable DVD, VCD
  5. Electric bikes, Car DVR



Normal Packing
Battery pack protect small sponge bag one by one

50pcs in one inner box , 10 box in one standard export carton

 3.2V Volt LiFePO4 Battery Pack AA 14500 For GPS Device With Temperature Control Function 2






Other Similar Production

3.2V Volt LiFePO4 Battery Pack AA 14500 For GPS Device With Temperature Control Function 3



Period of Warranty
The period of warranty is one year from the date of shipment. TAC guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.

Storage of the Batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year to prevent over discharge.

LiFepo4 Battery Cell Production List

3.2V Volt LiFePO4 Battery Pack AA 14500 For GPS Device With Temperature Control Function 4
