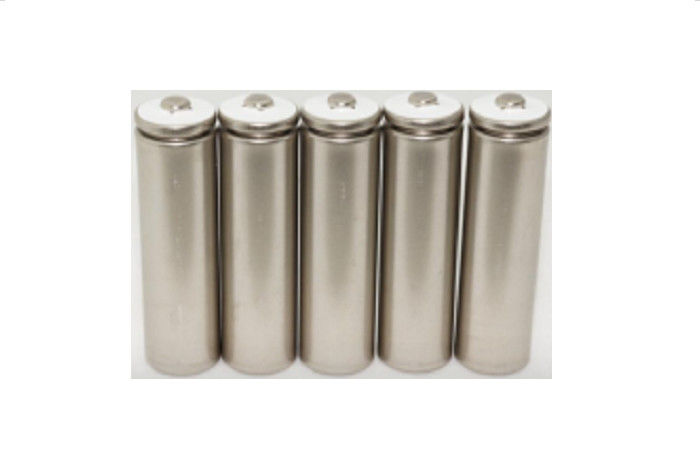

3.2V LiFePO4 Rechargeable Li Ion Battery Cell For Bluetooth Smart Card Reader

3.2V LiFePO4 Rechargeable Li Ion Battery Cell For Bluetooth Smart Card Reader

    • 3.2V LiFePO4 Rechargeable Li Ion Battery Cell For Bluetooth Smart Card Reader
    • 3.2V LiFePO4 Rechargeable Li Ion Battery Cell For Bluetooth Smart Card Reader
  • 3.2V LiFePO4 Rechargeable Li Ion Battery Cell For Bluetooth Smart Card Reader

    Product Details:

    Place of Origin: guangzhou
    Brand Name: TAC
    Certification: UL, ROHS
    Model Number: PIFC0342 IFR10440 240MAH

    Payment & Shipping Terms:

    Minimum Order Quantity: 200pcs
    Price: usd 1-2
    Packaging Details: 50PCS/BOX. 8 box for one carton
    Delivery Time: 14days for order confirm
    Payment Terms: TT, LC, Paypal etc
    Supply Ability: 100,000pcs/Day
    Contact Now
    Detailed Product Description
    Material: LiFePO4 Battery Capacity: 240mah
    Voltage: 3.2v Circle Life: 2000 Times
    Warranty: 12 Months Pvc: Blue Black
    Rechargeable: Yes Size: 10.3mm(dia.)*44.2mm(ht.)

    3.2V LiFePO4rechargeable li ion battery cell for Bluetooth Smart Card Reader





    Features:


    1. the single cell IFR10440/AA 240mAh ,the highest capacity for same size
    2. There are IFR10400/AAA 200mAh/250mA for your section
    3. The application for Digital Products/power tool , blue-tooth smart cards and more
    4.  Excellent abuse tolerance and environmentally friendly
    5. Deep circle ,2000times circle life base on DOD 100%





    Application:



    Solar street light Solar Lawn and Led lighting

    Small Robot and smart device

    Tracking device , GPS equipment

    intelligent vacuum cleaner

    portable speaker products

    Medical instrument breathing machine

    desktop POS machines

    portable equipment

    Electrical bike , tour bus e-boat




    Battery Specification List for 3.2V LiFePO4rechargeable li ion battery cell for Bluetooth Smart Card Reader



    No.

    Items

    Specifications

    Remark

    1

    Nominal Capacity

    240mAh

    0.2C Standard discharge

    2

    Minimum Capacity

    220mAh

    3

    Nominal Voltage

    3.2V

    Mean Operation Voltage

    4

    Delivery voltage

    3.28~3.32V

    Within 10 days from Factory

    5

    Charge Voltage

    3.65V±0.03V

    By standard charge method

    6

    Standard charging method

    0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C



    7

    Charge current

    0.2C

    480mA

    Standard charge, charge time about 7h(Ref)

    1.0C

    240mA

    Rapid Charge, charge time about: ::1.5h(Ref)

    8

    Standard discharging method

    0.2C constant current discharge to 2.5V,



    9

    Cell Internal Impedance

    ≤80mΩ

    Internal resistance measured at AC 1KHZ after 50% charge

    10

    Maximum charge current

    1C

    240mA

    For continuous charging mod

    11

    Maximum discharge current

    3C

    720mA

    For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity)



    12

    Operation Temperature and relative humidity Range

    Charge

    0~45℃

    60±25%R.H.

    Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery

    Discharge

    -20~60℃

    60±25%R.H.

    13

    Storage temperature for a long time

    -20~25℃

    60±25%R.H.

    Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.




    Similar Pictures for 3.2V LiFePO4rechargeable li ion battery cell for Bluetooth Smart Card Reader




    3.2V LiFePO4 Battery 14500 500mAh Power Type for Grid Stabilization Energy Storage Systems

    3.2V LiFePO4 Battery 14500 500mAh Power Type for Grid Stabilization Energy Storage Systems






    Our serve:

    We provide 24 months warranty,will change new products for you if quality problems.L Your inquiry related to our products or prices will be replied in 24 hours

    We will track the shipping status time by time so that buyer can receive our goods in time and safely.

    We could design all of the battery packs according to your requirements and provide OEM service.

    We sincerely welcome you to visit and cooperate with us for  business future.



    Production Detail

    After we assembled the cell with customer's require , we aging the battery pack one by one before shrink with pvc .

    3.2V LiFePO4 Rechargeable Li Ion Battery Cell For Bluetooth Smart Card Reader



    Production List For Lifepo4 Battery

    3.2V LiFePO4 Rechargeable Li Ion Battery Cell For Bluetooth Smart Card Reader
