Cylindrical Polymer Lithium Battery LIR08570 345mah For E Pen Or Device

Cylindrical Polymer Lithium Battery LIR08570 345mah For E Pen Or Device

    • Cylindrical Polymer Lithium Battery LIR08570 345mah For E Pen Or Device
    • Cylindrical Polymer Lithium Battery LIR08570 345mah For E Pen Or Device
    • Cylindrical Polymer Lithium Battery LIR08570 345mah For E Pen Or Device
  • Cylindrical Polymer Lithium Battery LIR08570 345mah For E Pen Or Device

    Product Details:

    Place of Origin: guangzhou
    Brand Name: TAC
    Certification: UL,ROHS
    Model Number: PLIC***

    Payment & Shipping Terms:

    Minimum Order Quantity: 5000pcs
    Price: usd 1-3
    Packaging Details: 500pcs/carton
    Delivery Time: 14Days
    Payment Terms: TT, LC, Paypal, etc
    Supply Ability: 100000Piece/days
    Contact Now
    Detailed Product Description
    Nominal Voltage: 3.7V Rated Capacity: 345mAh
    Dimension: D*h=8mm*57mm Circle Life: 500 Times
    Warranty: 12 Months Type: Lithium Battery

    Lithium Battery Cylindrical Polymer LIR08570 345mah For E Pen or Device





    1. Rechargeable Lithium batterybLIR08570 /340mAh,The Vol is 3.7V

    2. The cycle life is about 1000 times.

    3. Repeated use or Single use are available

    4. The battery approve RoHs.
    5. There are LIR08500P,LIR08570P,LIR08600P,LIR75500,LIR08600P,LIR13450 For your choice





    Specification for
    Lithium Battery Cylindrical Polymer LIR08570 345mah For E Pen or Device




    No.

    Item

    Specifications

    1

    Nominal Voltage

    3.7V

    2

    Rated Capacity

    340mAh @ 1C Discharge to 3.0V

    3

    Minimal Capacity

    330mAh @ 1.2A Discharge to 3.3V

    4

    Discharge Cut-off Voltage

    3.0V

    5

    Charging Voltage

    4.2V

    6

    Max Charging Voltage

    4.25V

    7

    AC  (1KHz) Impedance New Cell Max.(mW)

    ≤80mΩ

    8

    Standard charge

    0.5C charge to 4.2V, then CV charge (4.2V) till charge current decline to 0.01C.

    9

    Standard discharge

    Constant current 1C end voltage 3.0V

    10

    Self-discharge

    ≤8% After  Standard  Charge, at 23±2 ℃, stores 30 day to measure it’s capacity

    11

    Max. Charge Current

    340mA

    12

    Max. Discharge Current

    1035mA

    13

    Shipment voltage

    3.9-4.0 V

    14

    Operating Temperature

    Charge: 0~45℃

    60±25%R.H

    Discharge: -20~60℃

    15

    Storage Temperature

    Less than 1 year: -20~25℃

    60±25%R.H

    Less than 3 months: -20~40℃

    16

    Cell Dimension

    Diameter: Max. 8.3mm

    Height:   Max. 58 mm

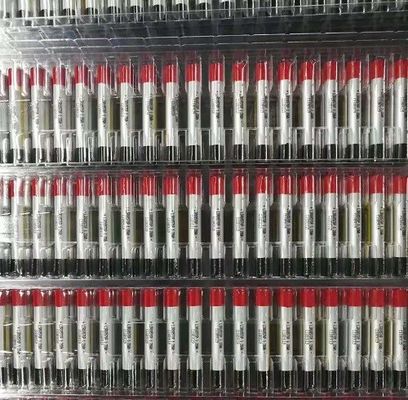

    Battery Pictures


    Cylindrical Polymer Lithium Battery LIR08570 345mah For E Pen Or Device

     Big Battery Ecig / E-cig Big Battery LIR08570 For Ce5 Blister E Cig





    Application:

    The battery use for E-cig or small solar device



    Q: Are you manufacturer or trading company?
    A: HKTAC is over sale for famous manufacturer called Greatpower Group, assembly entity for battery packs, and a distributor of branded cells and battery accessories based on customer’s needs.
    Q: Can you agree with OEM/ODM battery pack ?
    A: Yes, OEM/ODM battery packs are warmly welcome.
    Q: Do you have battery packs for famous company
    A: Yes, we are supplier for Philips Honywell etc
    Q: What information do you need to make a customized battery pack?
    A: We need the details below:
    1. Max Size of the battery pack so that we can suggestion the reasonable cell
    2. Capacity of the Battery pack.
    3. Voltage of the battery pack.
    4. Max discharge current.
    5. Cable and connector types you need.
    6. BMS performance requrie
    Q: Can you print my logo on the battery jacket or housing?
    A: Yes, custom logo service is available.
    Q: Is sample order acceptable?
    A: sure, sample orders for testing quality is reasonable and acceptable.
    Q: How should I place an order?
    A: Pls just confirm our PI if you need
    Q: How should I pay? What modes of payment do you accept?
    A: T/T, Paypal, LC
    Q: Are renowned international brand battery cells available?
    A: Yes international brand cells are available, please contact us for details.
    Q: How do you arrange shipment for batteries?
    A: We have long-standing forwarder partner who arranges all our shipments to all countries. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through our experienced shipping partner(s).
    Q: Do you have the documents required for battery shipments?
    A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
