Product Details:

Place of Origin: shenzhen
Brand Name: TAC
Certification: UL/ROHS/UL
Model Number: LIR68340-3.7-110mAh

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Price Negotiable
Packaging Details: 1000pcs/carton
Delivery Time: 15 days
Payment Terms: Paypal/TT/UL
Supply Ability: 10000000pcs/month
Get Best Price Contact Now

Detail Information

Rated Capacity: 110mAh Nominal Voltage: 3.7V
Internal Impedance: ≤130mΩ Cell Dimension: Length:Max 43.5mm
High Light:

polymer battery vs lithium ion

,

polymer battery

Product Description



3.7V LIR68500 / LIR68430 E-cig Big Battery For Ego Ce4 Kit 110mAh ROHS Approved


1. The model name is 3.7V LIR68430 110mAh.
2. CE, ROHS Certification
3. There are LIR13600, LIR13700, LIR13450, LIR68430, LIR68500 available.
4. High quality and the good price


Specification:


No.

Item

General Parameter

Remark

1

Rated Capacity

Typical

110mAh

Standard discharge0.2C(20mA)
after Standard charge

Minimum

100mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of
Discharge

3.0V

Discharge Cut-off Voltage

4

Charging Voltage

4.20V



5

Max.Charging Voltage

4.25V



6

Internal Impedance

≤130mΩ

Internal resistance measured at AC 1KHZ after 50% charge
The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

7

Standard charge

Constant Current 0.2C5A
Constant Voltage 4.2V
0.01 C5A cut-off

Charge time : Approx 6.5h

8

Standard discharge

Constant current 0.2C5A
end voltage 3.0V



9

Maximum Continuous Operation Current

1200mA



10

Weight

2.7±1.0g



11

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.
Bare Cell





Discharge: -10~60℃



12

Storage Temperature Range

Less than 1 month: -20~40℃

60±25%R.H.
at the shipment state





less than 6 months: -10~35℃



13

Cell  Dimension

Length:Max 43.5mm

Initial  Dimension





D:Max.6.8mm



14

Voltage of shipment

4.10~4.20V





Pictures:

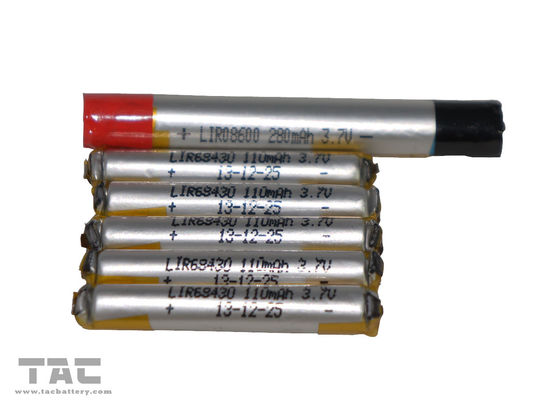

3.7V LIR68430 E-cig Big Battery For Electronic Cigarette Ego Ce4 Kit

LIR68340 E-cig battery



3.7V LIR68430 E-cig Big Battery For Ego Ce4 Kit



3.7V LIR68430 E-cig Big Battery For Ego Ce4 Kit



Warning:

1.  Please keep out of children’s reach.

2.  Keep in a cool, dark place or in the refrigerator for extended life.
