650MAH E-cig Big Battery For Electronic Cigarette , 3.7 volt Battery

650MAH E-cig Big Battery For Electronic Cigarette , 3.7 volt Battery

  • 650MAH E-cig Big Battery For Electronic Cigarette , 3.7 volt Battery
  • 650MAH E-cig Big Battery For Electronic Cigarette , 3.7 volt Battery
  • 650MAH E-cig Big Battery For Electronic Cigarette , 3.7 volt Battery
  • 650MAH E-cig Big Battery For Electronic Cigarette , 3.7 volt Battery
650MAH E-cig Big Battery For Electronic Cigarette , 3.7 volt Battery
Product Details:
Place of Origin: shenzhen
Brand Name: TAC
Certification: UL,ROHS
Model Number: PLIC0100
Payment & Shipping Terms:
Minimum Order Quantity: 5000pcs
Price: Price Negotiable
Packaging Details: 500pcs/carton
Delivery Time: 14Days
Payment Terms: TT, LC, Paypal, etc
Supply Ability: 100000Piece/days
Contact Now
Detailed Product Description
Product Name: E Cig Battery Nominal Voltage: 3.7V
Internal Impedance: ≤80mΩ Maximum Continuous Operation Current: 650mA
Operation Temperature Range: Charge: 0~45℃ Cell Dimension: Length:Max.45mm,D:Max.13.2mm
High Light:

polymer battery vs lithium ion

,

polymer battery

650MAH E-cig Big Battery For Electronic Cigarette , 3.7 volt Battery



Detailed Product Description



  1. Repeated use or Single use are available
  2. Passed ROSH.certification.
  3. There are LIR08500P,LIR08570P,LIR08600P,LIR75500,LIR08600P,LIR13600 etc




Specification:


No.


Item

General Parameter

Remark

1

Rated Capacity

Typical

650mAh

Standard discharge(1.2A)

after Standard charge

Minimum

630mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

Discharge

3.0V

Discharge Cut-off Voltage

4

Charging Voltage

4.2±0.05V



5

Internal Impedance

≤80mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

6

Standard charge

Constant Current 0.5C5A

Constant Voltage 4.2V

0.01 C5A cut-off

Charge time : Approx 3.0h

7

Standard discharge

Constant current 0.5C5A

end voltage 3.0V



8

Maximum Continuous Operation Current

650mA



9

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.

Bare Cell





Discharge: -10~60℃



10

Storage Temperature Range

Less than 1 month: -20~40℃

60±25%R.H.

at the shipment state





less than 6 months: -10~35℃



11

Cell  Dimension

Length:Max.45mm

Initial  Dimension





D:Max.13.2mm





Pictures:

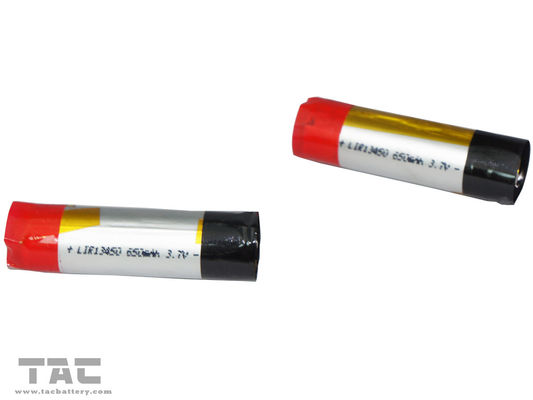

 Mini Cigarettes LIR13450/650mAh E-cig Big Battery for E cigarette

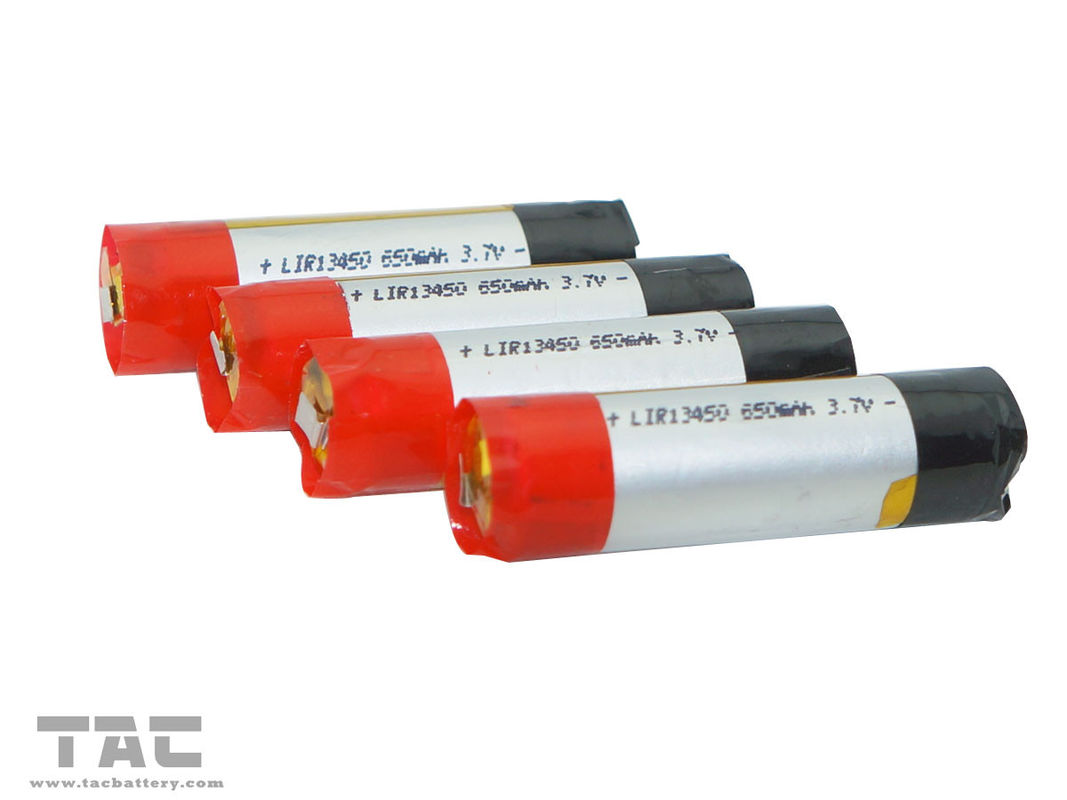

 Mini Cigarettes LIR13450/650mAh Electronic Cigarettes Battery for E cigarette




 Electronic Cigarette Vivi Nova


Application:

 Mini Cigarettes LIR13450/650mAh E-cig Big Battery for E cigarette



The feature of the single use battery:



More convenient to carry : disposable electronic cigarette without charge , does not require replacement of smoke bombs , electronic cigarette smokers only need to carry out can be, without the need to carry heavy chargers and other accessories .

2 more stable performance : disposable electronic cigarette as fully enclosed design , reducing the charge , replace smoke bombs and other operational aspects , thus reducing the failure occurs , rechargeable electronic cigarette solve circuit fault, leakage and other problems in the disposable electronic cigarette here has been completely resolved.

3 liquid smoke More: disposable electronic cigarette liquid smoke can reach the capacity rechargeable electronic cigarette 5-8 times more than the life of disposable electronic cigarette even longer .

4 battery stronger : General rechargeable electronic cigarette , each cartridge requires at least one charge , the battery efficiency is very low , equivalent to 5-8 per cigarette smoke , it is necessary to recharge a battery . And if idle rechargeable electronic cigarette , electronic cigarette about 2 months to completely can no longer be used. In contrast, strong disposable electronic cigarette battery can support 40 or more the amount of regular cigarettes . And if disposable electronic cigarette is idle , within one year does not influence the electronic cigarette battery , 2 years , the battery will not be affected more than 10%
