| Place of Origin: | GUANGZHOU & SHENZHEN |
| Brand Name: | TAC |
| Certification: | MSDS REACH ROHS |

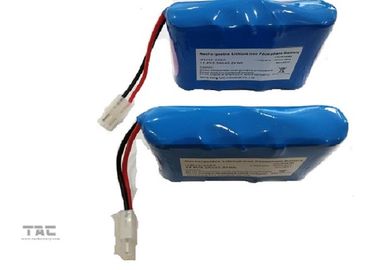

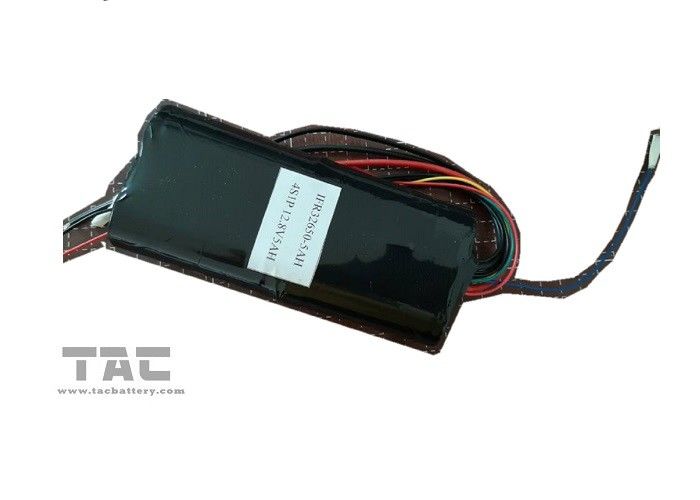

| Model Number: | IFR32650 12.8V 5AH |
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | USD5-10 |
| Packaging Details: | 1 set for one bag. 5 bag for one box |
| Delivery Time: | 7 days for single cell 15-20 days for battery pack |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000SET per month |
| Type: | Lifepo4 | Capacity: | 5000mah |
|---|---|---|---|
| Voltage: | 12.8v | Circle Life: | 2000times |
| Single Cell: | 32650 3.2v 5AH | Connector: | Customize |
| NTC: | Including Of | PO NO: | PIFP0985 |
| High Light: | lifepo4 battery pack,lithium iron phosphate battery pack |
||
Remark : Maybe you call IFR32700 12V Battery Pack, Actually IFR32650 and IFR32700 is same model , The size is D=32MM H=70+/-5MM , So some buyer call 32650, and some buyer call 32700
| ELECTRICAL SPECIFICATIONS | ||||
| Nominal Voltage | 12.8 V | |||
| Nominal Capacity | 5 Ah | |||
| Mini Capacity | 5 Ah | |||
| Energy | 64Wh | |||
| Resistance | ≤60 mΩ | |||
| Efficiency | 99% | |||
| Self Discharge | <3% per Month | |||
| weight | 0.65kg | |||
| size |
140mm 34mm 68mm |
|||
| DISCHARGE SPECIFICATIONS | ||||
| Maximum Continuous Discharge Current | 20 A | |||
| Peak Discharge Current | 40 A (7.5 s ±2.5 s) | |||
| BMS Discharge Current Cut-Off | 70 A ±10 A (20 ±5 ms) | |||
| Recommended Low Voltage Disconnect | 11 V | |||
| BMS Discharge Voltage Cut-Off | 8 V (2.0 ±0.08 vpc) (140 ±60 ms) | |||
| Reconnect Voltage | 10 V (2.5 ±0.10 vpc) | |||
| Short Circuit Protection | 200-500 µs | |||
| TEMPERATURE SPECIFICATIONS | ||||
| Discharge Temperature | -4 to 140 ºF (-20 to 60 ºC) | |||
| Charge Temperature | 32 to 113 ºF (0 to 45 ºC) | |||
| Storage Temperature | 23 to 95 ºF (-5 to 35 ºC) | |||
| BMS High Temperature Cut-Off | 158 ºF (70 ºC) | |||
| Reconnect Temperature | 122 ºF (50 ºC) | |||
| CHARGE SPECIFICATIONS | |
| Recommended Charge Current | 10 A |
| Maximum Charge Current | 20 A |
| Recommended Charge Voltage | 14.2 V - 14.6 V |
| BMS Charge Voltage Cut-Off | 15.2 V (3.8 ±0.025 vpc) (1.1 ±0.4 s) |
| Reconnect Voltage | 14.4 V (3.6 ±0.050 vpc) |
| Balancing Voltage | 14.4 V (3.6 ±0.025 vpc) |
