IFR32650 6Ah 3.2V LiFePO4 Battery Cell With SGS UL UN38.3 REACH High Safety
Product Details:
Place of Origin: | Shenzhen zhuhai |
Brand Name: | TAC OEM ODM |
Certification: | MSDS REACH ROHS |
Model Number: | IFR32650 6AH 3.2V |
Payment & Shipping Terms:
Minimum Order Quantity: | 200PCS |
---|---|
Price: | usd 3 each pcs |
Packaging Details: | Follow UN38.3 Rule |
Delivery Time: | 7 days for single cell 15-20 days for battery pack |
Payment Terms: | L/C, T/T |
Supply Ability: | 50000 pack for one week |
Detail Information |
|||
Type: | LiFePO4 Battery | Capacity: | 6000mah |
---|---|---|---|
Voltage: | 3.2v | Circle Life: | 2000 Times |
Size: | 32*65mm | Warranty: | 1 Year |
High Light: | lifepo4 battery pack,lithium iron phosphate battery pack |
Product Description
IFR32650 LiFePO4 Battery Cell 3.2V 6Ah with SGS UL UN38.3 REACH
Specification for IFR32650 LiFePO4 Battery Cell 3.2V 6Ah with SGS UL UN38.3 REACH
Nominal Capacity | 6000mAh | Cell Configuration | cylinder |
Mimimum Capacity | 5950mAh | Internal Impedance | 25mΩ |
Nominal Voltage | 3.2V | Dimensions(mm) | 32.5mm(dia.)*65.5mm(ht.) |
Discharge Cut-off Voltage | 2.0V | Weight | 150 g |
Charge Cut-off Voltage | 3.65 V | Charge Temperature Range | 0°C~45°C |
Standard Charging Current | 1000mA | Discharge Temperature Range | -10°C~60°C |
Standard Discharge Current | 1000mA | Charge Method | CC/CV |
Fast Charging Current | 6000mA | Storage Temperature Range | Less than 1 year:-20~25°C |
Less then 3 months:-20~40°C | |||
Max Discharging Current | 18000mA | Cycle Life (80% DOD) | 3000 cycles |
Maximum Continuous Charge Current | 1C | Maximum Continuous Discharge Current | 3C |
Features
* High quality , the higest capacity 6 ah for 32*65 size
* Factory price, fast delivery ,mass production 50000pcs per week
* Long cycle life, No memory effec over 2000 times
* High safety, environment friendly with Reach
* High working voltage for single battery cells, full charge 3.65 V
* Widely application for electronics and industries

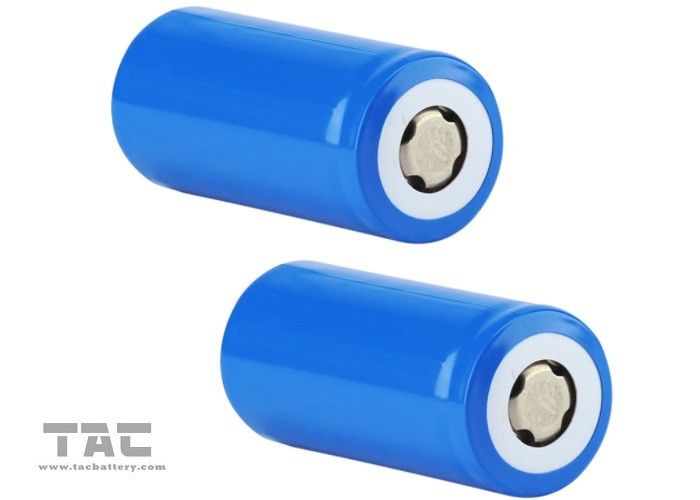

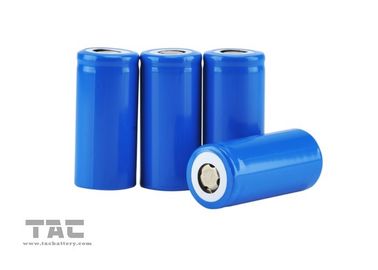

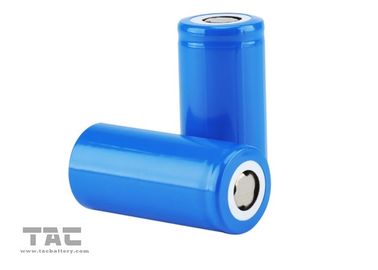

Battery Photo
More models for LiFePO4 Cell
