ER18505 3.6V 13200mAh LiSOCl2 Lithium Battery Primary For Magcard Machine

ER18505 3.6V 13200mAh LiSOCl2 Lithium Battery Primary For Magcard Machine

    • ER18505 3.6V 13200mAh LiSOCl2 Lithium Battery Primary For Magcard Machine
    • ER18505 3.6V 13200mAh LiSOCl2 Lithium Battery Primary For Magcard Machine
    • ER18505 3.6V 13200mAh LiSOCl2 Lithium Battery Primary For Magcard Machine
    • ER18505 3.6V 13200mAh LiSOCl2 Lithium Battery Primary For Magcard Machine
  • ER18505 3.6V 13200mAh LiSOCl2 Lithium Battery Primary For Magcard Machine

    Product Details:

    Place of Origin: SHENZHEN
    Brand Name: TAC
    Certification: MSDS REACH
    Model Number: ER18505 3.8V 13200MAH

    Payment & Shipping Terms:

    Minimum Order Quantity: 500 SET
    Price: USD 3-5
    Packaging Details: 1 pcs for one plastic bag
    Delivery Time: 15 -25 DAYS
    Payment Terms: L/C, T/T
    Supply Ability: 50000 PER MONTH
    Contact Now
    Detailed Product Description
    Material: Lithium Battery Capacity: 13200mah
    Voltage: 3.6V Long Life: 10 Years
    Size: 18*50.5mm Warranty: 12 Months
    Connector: JST-XHR-2P Rechargeable: NO
    High Light:

    lithium battery packs

    ,

    rechargeable lithium batteries

    Lithium Battery Primary ER18505 3.6V 13200mAh for Magcard Machine

    Parameter for Lithium Battery Primary ER18505 3.6V 13200mAh for Magcard Machine



    No.



    Item



    General Parameter



    Remark



    1

    Nominal Capacity



    10500mAh/1mA






    Mini Capacity



    10000mAh/1mA




    2

    Nominal Voltage



    3.6V

    Mean Operation Voltage



    3

    Voltage at end of

    Discharge



    2.0V

    Discharge Cut-off Voltage



    4

    Max dimension





    Max 58.0mm*51.5mm*20mm


    5

    weight



    90g
    6

    Standard discharge



    Discharge to 2.0V 2mA

    Constant current:2mA

    Cut off Voltage:2.0V

    7

    Max. continuous current (at +20˚C)



    600mA



    8

    Max. pulse current 1000mA

    (

    .


    100mA/0.1 second pulses, drained every 2 min at 23±2℃ from un-discharged cells with 10uA base current, yield voltage readings above 3.0V and the readings may vary according to the pulse, characteristics, the temperature and the cell’s previous history. Fitting cell with a capacitor may be recommended if workable under extremely conditions.
    9

    Ambient temperature range



    -55℃~ +85℃
    10

    Storage life



    ≥10 years



    Yearly self-discharge ≤ 1%
    (



    Application:


    This model is specially design for magcard machine and test equipment

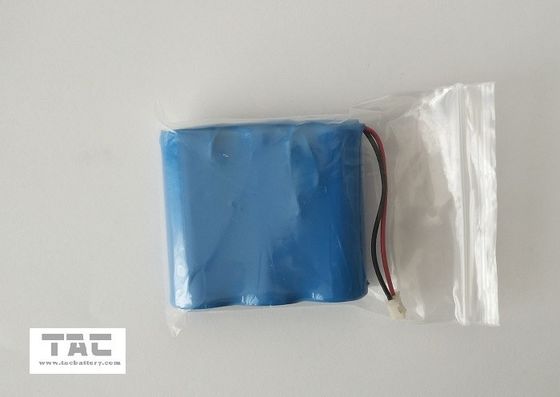

    Battery Picture


    ER18505 3.6V 13200mAh LiSOCl2 Lithium Battery Primary For Magcard Machine 0

    ER18505 3.6V 13200mAh LiSOCl2 Lithium Battery Primary For Magcard Machine 1

    ER18505 3.6V 13200mAh LiSOCl2 Lithium Battery Primary For Magcard Machine 2

    Engineer Drawing

    ER18505 3.6V 13200mAh LiSOCl2 Lithium Battery Primary For Magcard Machine 3



    Model List for Energy type of ER Battery

    Model

    Size

    (φ mmXmm)

    Nominal Voltage

    ( V )

    Cut off Voltage

    ( V )

    Capacity

    ( mAh )

    Max.Current

    ( mA)

    ER14250

    14.5X25.4

    3.6

    2

    1200

    25

    ER14505

    14.5X50.5

    3.6

    2

    2700

    65

    ER14335

    14.5X33.5

    3.6

    2

    1650

    40

    ER17335

    17.0X33.5

    3.6

    2

    2200

    100

    ER17505

    17.0X50.5

    3.6

    2

    3500

    100

    ER18505

    18.5X50.5

    3.6

    2

    4000

    130

    ER26500

    26.2X50.0

    3.6

    2

    9000

    180

    ER34615

    34.0X61.5

    3.6

    2

    19000

    230

    ER9V

    17.0X26.5X48.8

    10.8

    6

    1200

    25
