18650 High Capacity 5A 3.2v Lifepo4 Battery 1500mah For Power Supply
Product Details:
| Place of Origin: | Shenzhen zhuhai |
| Brand Name: | TAC OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | PIFC0098 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | usd 2.0 |
| Packaging Details: | Follow UN38.3 Rule |
| Delivery Time: | 7 days for single cell 15-20 days for battery pack |
| Payment Terms: | TT, LC, Paypal, etc |
| Supply Ability: | 50000 pack for one week |
|
Detail Information |
|||
| Type: | Lifepo4 Battery | Capacity: | 1500mah |
|---|---|---|---|
| Voltage: | 3.2V | Discharger Current: | 5A |
| Circle Life: | 2000 Times | Warranty: | 12 Months |
| Application: | Power Supply | Pvc: | Blue |
| High Light: | lifepo4 battery pack,lifepo4 rechargeable batteries |
||
Product Description
18650 High Capacity 5A 3.2v Lifepo4 Battery 1500mah For Power Supply
18650 High Capacity 5A 3.2v Lifepo4 Battery 1500mah For Power Supply
Quick Detail for 18650 High Capacity 5A 3.2v Lifepo4 Battery 1500mah For Power Supply
- High Capacity: 1500mAh @ 0.2C Discharge
- Max. continue discharge current: 5A
- The single cell can assem the battery pack if you like
- Long cycle life about 2000 times.
Specification for 18650 High Capacity 5A 3.2v Lifepo4 Battery 1500mah For Power Supply
|
No. |
Items |
Specifications |
|
1 |
Charge cut-off voltage |
3.65V |
|
2 |
Nominal voltage |
3.2V |
|
3 |
Minimal capacity |
1500mAh @ 0.2C Discharge |
|
4 |
Nominal capacity |
1550mAh @ 0.2C Discharge |
|
5 |
Charge current |
1C |
|
6 |
Standard charging method |
1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C |
|
7 |
Charging time |
Standard charge: 2.0 hours Ref |
|
8 |
Max. charge current |
2C |
|
9 |
Max. continue discharge current |
5A (Cell skin temperature cannot exceed 80°C) |
|
10 |
Discharge cut-off voltage |
2.0V |
|
11 |
Operating temperature |
Charging: -10°C ~ 45°C Discharging: -20°C ~ 60°C (Cell skin temperature cannot exceed 80°C) |
|
12 |
Storage temperature/humidity |
Temperature -10°C ~ +35°C Humidity 65%±20%RH (Recommended to store 23 ± 5°C for long term storage) |
|
13 |
Cell Weight |
42.0g±1.0g |
|
14 |
Cell Dimension |
Length: 65.0±0.3 mm Width: 18.2±0.2 mm |

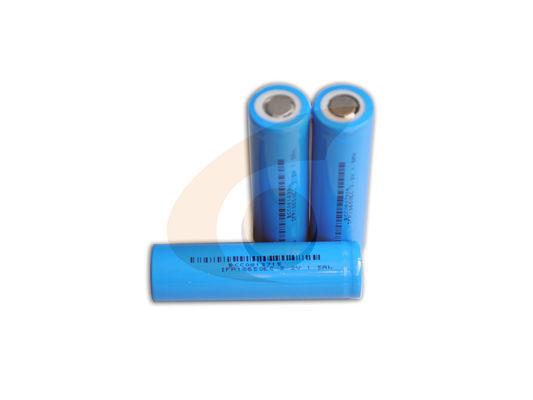

Picture of High Capacity 18650 3.2V LiFePO4 Battery 1500mAh for Power supply
Application:
High Capacity 18650 3.2V LiFePO4 Battery 1500mAh for Power supply,Flashlight,LED light.
Packing Manners
Homolog Production for Lifepo4 Cell
