REACH 32700 12Ah 6V LiFePO4 Battery Pack With PCB

REACH 32700 12Ah 6V LiFePO4 Battery Pack With PCB

  • REACH 32700 12Ah 6V LiFePO4 Battery Pack With PCB
  • REACH 32700 12Ah 6V LiFePO4 Battery Pack With PCB
  • REACH 32700 12Ah 6V LiFePO4 Battery Pack With PCB
REACH 32700 12Ah 6V LiFePO4 Battery Pack With PCB
Product Details:
Place of Origin: SHENZHEN
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: 32700 6.4V 12AH
Payment & Shipping Terms:
Minimum Order Quantity: 200PCS
Price: usd 12-20
Packaging Details: Follow UN38.3 Rule
Delivery Time: 7 days for single cell 15-20 days for battery pack
Payment Terms: L/C, T/T
Supply Ability: 50000 pack for one week
Contact Now
Detailed Product Description
TYPE: LIFEPO4 Capacity: 12ah
Voltage: 6.4V Circle Life: 2000 Times
Size: 135L*34W*85Hmm Warranty: 12 Months
PCB: Discharge Current 3.5A-9A Connector: TDEAN
Color: Blue
High Light:

12Ah 6V LiFePO4 Battery Pack

,

32700 6V LiFePO4 Battery Pack

6V LiFePO4 Battery 32700 12Ah Pack with PCBM For Barcos Cebadores Para la Pesca



Feature for 6V LiFePO4 Battery 32700 12Ah Pack with PCM For Barcos Cebadores Para la Pesca



  1. This is spcially design for boat power back
  2. High level LiFepo4 Battery single cell passed UL 1642 and Reach
  3. 6.4v 12ah with pcm and specially connector
  4. Long circle life 2000 times base on DOD 80%
  5. it have safety approval for UN38.3 of single cell



Specification for 6V LiFePO4 Battery 32700 12Ah Pack with PCM For Barcos Cebadores Para la Pesca





Type Item  Parameter
Cell

Cell Type



IFR32700-6Ah

Rating voltage



3.2V

Impedance



≤15 mΩ

Continuous Output Discharging current



≤12A

Batteries Group

电池组

Combination Method



2parallels2series2并4串

Rating Capacity



6Ah

Nominal voltage



6.4V

Max. charge voltage



7.8V

Discharge cut-off voltage



4V

Charge current



≤3A

Continuous Output Discharging current



3.5A

Weight



<0.7kg

Dimension



135L*34W*85Hmm

Operating Temperature



Charging



0~45℃

Discharging



-10~60℃





Configuration for The battery pack was assembled by 2S2P



REACH 32700 12Ah 6V LiFePO4 Battery Pack With PCB 0



REACH 32700 12Ah 6V LiFePO4 Battery Pack With PCB 1

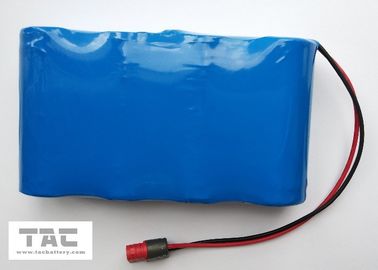

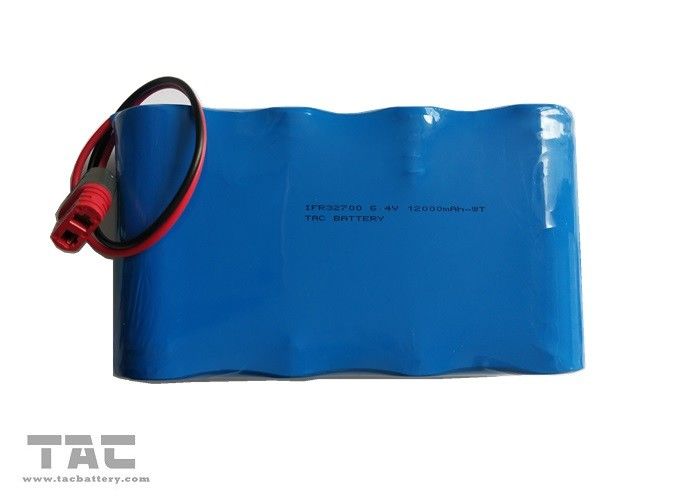

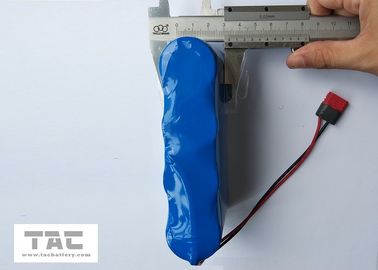

Battery Pack Photos



REACH 32700 12Ah 6V LiFePO4 Battery Pack With PCB 2

REACH 32700 12Ah 6V LiFePO4 Battery Pack With PCB 3



Cycle Life:



The battery shall be constantly charged at 0.2C5A in the temperature of (20±5℃). When its voltage reaches 7.3V, it shall be charged to constant voltage charging. It shall not stop charging until its current is no more than 0.02 C5A .Put it aside for 0.5h-1h then discharge with 0.2C5A in the constant current to its final voltage. When the discharging is finished, the battery shall be put aside for 0.5h-1h and has the next charge and discharge recycle. The above recycle test shall be continued unless there are two continuous discharging capacity less than 70%,which is taken as the end of the life.



Shipment:

The batteries should be packed in cartons under the condition of half capacity 40-60% for shipment. The violent vibration, impaction or squeezing should be avoided in the transport process; neither is exposed in the sunlight nor rain. The batteries shall be shipped by normal transportation such as by road, by train, by ocean or by air.



If you need 12.8v battery pack  use for Fish trap similar with this one , pls check below model

http://32700 6Ah 12.8V LiFePO4 Battery Pack For Bait Boat Carp Fishing
