3.6V ER14505 AA LiSOCl2 Battery with Wide Temperature Range for Medical Instruments

3.6V ER14505 AA LiSOCl2 Battery with Wide Temperature Range for Medical Instruments

    • 3.6V ER14505 AA  LiSOCl2 Battery with Wide Temperature Range for Medical Instruments
    • 3.6V ER14505 AA  LiSOCl2 Battery with Wide Temperature Range for Medical Instruments
  • 3.6V ER14505 AA  LiSOCl2 Battery with Wide Temperature Range for Medical Instruments

    Product Details:

    Place of Origin: SHENZHEN
    Brand Name: TAC
    Certification: MSDS REACH
    Model Number: ER14505

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000PCS
    Price: USD 1.0
    Packaging Details: 100PCS/layer, 1000Pcs/Carton, Weight:20KG Size:44*27*33cm
    Delivery Time: 7-25 days after order confirm
    Payment Terms: T/T, LC, Pay pal etc.
    Supply Ability: 100,000PCS/Day
    Contact Now
    Detailed Product Description
    Type: LiSOCl2 Battery Capacity: 2400mah
    Voltage: 3.6V Long Life: 10 Years
    Warranty: 12 Months Size: AA 14*50mm
    Primary: Non-rechargeble Tag: With Or Without Follow Custome's Require
    High Light:

    lithium battery packs

    ,

    rechargeable li-on battery

    3.6V ER14505 AA  LiSOCl2 Battery with Wide Temperature Range for Medical Instruments

    Description For 3.6V ER14505 AA LiSOCl2 Battery with Wide Temperature Range for Medical Instruments



    1. High energy density: the battery can reach 420WH/KG and 800WH/dm3

    2. High voltage: open circuit voltage of 3.65V, voltage range of 3.3V to 3.6V that is changed with the change of the load, the end voltage is 2.0V or 2.5V.

    3. Stable operation voltage: excellent stability. On the high voltage platform where the voltage is almost unchanged, the capacity output is still more than 90%.

    4. Wide temperature range: provide the widest temperature range among all existing batteries from -60℃ to 85℃

    5. Excellent storage life: annual self-discharge rate is less than 1%. Fully-sealing structure and self-life is more than10years under room temperature.

    Application:

    1. Intelligent water meter, Ammeter, Gas Meter
    2. Industrial PC computer, Computer RAM, CMOS Memory Backup Power Sources
    3. Medical Instruments, Radio Communication, Seismic Equipment, Digitally-controlled Machine, Taxi Meter, Telephone
    4. Underwater Weapon, Military Communication Transmitter-receiver, Portable communication Equipment, RMPS and more.


    Packing Method:

    The battery protected by specially sponge tray
    100PCS/layer, 1000Pcs/Carton, Weight: 20KG Size: 44*27*33cm

    3.6V ER14505 AA  LiSOCl2 Battery with Wide Temperature Range for Medical Instruments 0

    Specification For 3.6V ER14505 AA LiSOCl2 Battery with Wide Temperature Range for Medical Instruments


    No

    Item

    Data

    1

    Nominal voltage:

    3.6V

    2

    Nominal capacity:

    2400mAh(1.0mA / 2.0V)

    3

    Discharge end-voltage:

    2.0V

    4

    Operating voltage :

    3.4V(330Ω,  in 5s)

    5

    Max constant discharge current:

    100mA

    6

    Max. pulse current:

    200mA

    7

    Ambient temperature range:

    -55~ +85℃

    8

    Storage life:

    ≥10 year,  Yearly self-discharge ≤ 1%


    Size; Max dimension : φ10.5mm×H45.0mm
    If you have purchase the ER battery from other supplier, pls take close attention to max size
    in order to avoid the size over your space limit




    Pictures:

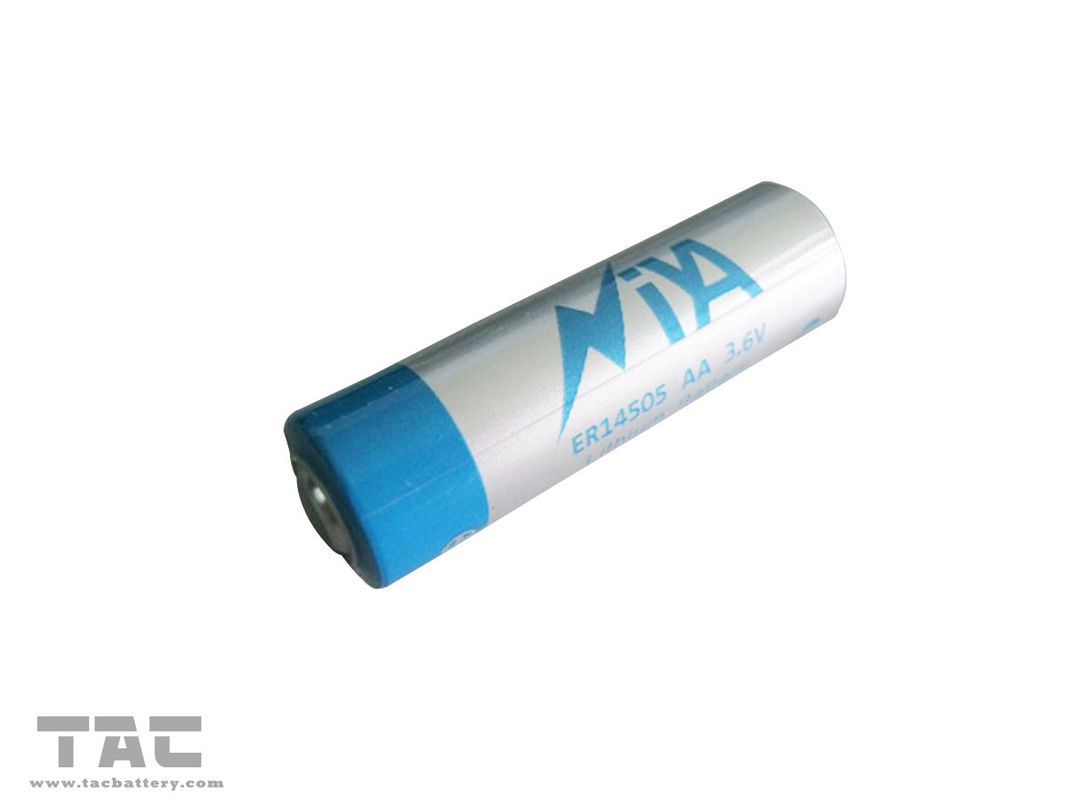

    3.6V ER14505 AA  LiSOCl2 Battery with Wide Temperature Range for Medical Instruments

    ER14505 AA battery



    Product List For ER Battery With High Rate Performance

    3.6V ER14505 AA  LiSOCl2 Battery with Wide Temperature Range for Medical Instruments 2


    Storage Standard

    >Cells should be stored in a clean
    &dry(less than 30% RH) area
    >Temp. should not exceed +30°C
    According to the characteristics of the lithium sub-battery, after a long period of storage, the battery is prone to passivation. Please activate it before use. The activation method is: short-circuit the battery , connect the positive and negative electrodes with a thin iron wire for 3 to 5 seconds .



    Tag:  ER14505 AA  battery;3.6V Energizer Lithium battery;3.6v battery
