Li ion Battery  Energizer Battery 3.6V LiSOCl2 Battery for Flow Meter TPMS

Li ion Battery Energizer Battery 3.6V LiSOCl2 Battery for Flow Meter TPMS

Product Details:

Place of Origin: Shenzhen zhuhai
Brand Name: TAC
Certification: REACH MSDS
Model Number: ER14505S

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: usd 3-5
Packaging Details: 20 pcs each pallet / 1 pack for one box
Delivery Time: 7-25 days after order confirm
Payment Terms: T/T, LC, Paypal etc.
Supply Ability: 100,000PCS/Day
Get Best Price Contact Now

Detail Information

Type: Li Ion Batter Primary Type Voltage: 3.6V
Capacity: 1600mah Long Life: 10 Years
Warranty: 1 Year Pvc: Blue Or Oem
Model Name: ER14505 1600MAH 3.6V SIZE: 14*50.5MM
High Light:

lithium battery packs

,

rechargeable li-on battery

Product Description

Li ion Battery Energizer Battery 3.6V LiSOCl2 Battery for Flow Meter TPMS

Li ion Battery Energizer Battery 3.6V LiSOCl2 Battery for Flow Meter TPMS



Description For Li ion Battery Energizer Battery 3.6V LiSOCl2 Battery for Flow Meter TPMS

1. High and stable voltage

    3.6V rated voltage; operating voltage is 3.3V to 3.4V in normal temperature and 3.5V 3.6V in high temperature.

    Because the electrochemical reaction of positive poles is hetero generous reaction, the discharging curve is reasonably

    stable until the capacity is almost exhausted when the curve changes a lot.

2. Wide operating temperature range: as wide as -20~ +150℃.

3. Long self-life: due to its full-sealing structure, it can be stored for more than 10 year.



Application:

1. Petroleum Industry:  Down hole high temperate EPG, flow meters, LWD/MWD, and other battery powered down hole high

    temperature instruments ( processing and battery packs can be done as required)

2. Automobile industry: TPMS, Diesel engine cylinder monitor and so on.

3. Geothermic industry: High temperature inspection instruments

4. Military uses and other battery-powered devices used in high temperature




Packing Method:



100PCS/layer, 1000Pcs/Carton, weight:20KG Size:44*27*33cm



Li ion Battery  Energizer Battery 3.6V LiSOCl2 Battery for Flow Meter TPMS 0





Specification for Li ion Battery Energizer Battery 3.6V LiSOCl2 Battery for Flow Meter TPMS

No

Item

Data

1

Nominal voltage:

3.6V

2

Nominal capacity:

1600mAh(2mA / 2.0V)

3

Discharge end-voltage:

2.0V

4

Operating voltage :

3.3V(330Ω,  in 5s)

5

Max constant discharge current:

100mA

6

Max. pulse current:

300mA

7

Ambient temperature range:

-20~ +150℃

8

Storage life:

≥10 year,  Yearly self-discharge ≤ 1%

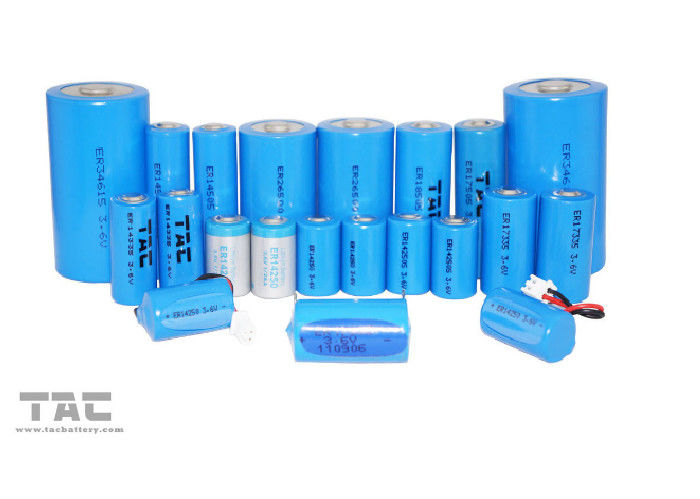

Pictures Li ion Battery Energizer Battery 3.6V LiSOCl2 Battery for Flow Meter TPMS



Li ion battery  energizer battery3.6V LiSOCl2 Battery for flow meter, TPMS



Li ion Battery  Energizer Battery 3.6V LiSOCl2 Battery for Flow Meter TPMS 2



We support various size for Lisocl2 single cell



Lithium Thionyl Chloride Batteries
Model Voltage
(v)
Capacity
(mAh)
Dimension
(mm)
Nominal Discharge Current(mA) Weight
(g)
ER10250 3.6 400 10.5*25 0.5 5
ER10280 3.6 450 10.5*28 0.5 6
ER10450 3.6 700 10.5*45 1 8
ER14250 3.6 1200 14.5*25.4 1 10
ER14335 3.6 1600 14.5*33.5 1 12
ER14505 3.6 2400 14.5*50.5 2 19
ER17335 3.6 1800 17.5*34 3 18
ER17505 3.6 3200 17.5*50.5 3 26
ER18505 3.6 3600 18.7*50.5 3 28
ER26500 3.6 9000 26.2*50 4 52
ER34320 3.6 8000 34.2*32.5 4 58
ER34615 3.6 19000 34.2*61.5 5 100
ER341245 3.6 36000 34.2*124.5 10 195
ER14250M 3.6 800 14.5*25.4 2 10
ER14335M 3.6 1300 14.5*33.5 3 13
ER14505M 3.6 2200 14.5*50.5 4 19
ER17505M 3.6 2800 17.5*50.5 5 27
ER18505M 3.6 3200 18.7*50.5 5 28
ER26500M 3.6 6500 26.2*50 10 52
ER34615M 3.6 14000 34.2*61.5 15 100
ER13150S 3.6 300 13.2*15 0.5 6
ER14250S 3.6 750 14.5*25.2 1 10
ER14505S 3.6 1600 14.5*50.5 2 20
ER26500S 3.6 4100 26.2*50 4 60
ER34615S 3.6 10500 34.2*61.5 5 106
ER2450 3.6 500 24.5*5.9 1 9
ER32100 3.6 1700 32.9*10 1 25
ER3265 3.6 1000 32.9*6.5 1 17
ER9V 10.8 1200 17*26.3*48.5 1 30
EF651615 3.6 400 16.8*15.8*6.8 1 5
EF651625 3.6 750 16.8*25.8*6.8 1 8
