Lithium Ion AA 3.2v Lifepo4 Battery 600mah For Led Lamp and Solar Lamp
Product Details:
| Place of Origin: | Shenzhen zhuhai |
| Brand Name: | TAC OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | PIFC0168 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | usd 1.0 |
| Packaging Details: | Follow UN38.3 Rule |
| Delivery Time: | 7 days for single cell 15-20 days for battery pack |
| Payment Terms: | TT, LC, Paypal, etc |
| Supply Ability: | 50000 pack for one week |
|
Detail Information |
|||
| Type: | Lifepo4 Battery | Size: | AA 14*50MM |
|---|---|---|---|
| Capacity: | 450mah-600mah | Voltage: | 3.2V |
| Circle Life: | 2000 Times | Warranty: | 12 Months |
| Application: | Led Lamp And Road Studs | Pcb: | Add With Customer's Require |
| Highlight: | lifepo4 battery pack,lifepo4 rechargeable batteries |
||
Product Description
Lithium Ion AA 3.2v Lifepo4 Battery 450mah For Led Lamp And Solar Lamp
Some company called this model 14505 also, in order to avoid misunderstand , pls take close attention to below information
IFR14500 3.2v flat type
IFR14505 3.2V Top type
The size is High:50.0±0.5mm Diameter: 14.3±0.2 mm
Pls check the max size if your measure with strict require
Quick Detail:
1.14505 as the same 14500
2.Have different capacity:250mAh,300mAh,400mAh,450mAh 500mAh,600mAh,700mAh
3. AA battery can make a pack or use by single ell
4.Application for road studs, LED light, flash light
Specification for Lithium Ion AA 3.2v Lifepo4 Battery 450mah For Led Lamp And Solar Lamp
|
No. |
Items |
Specifications |
Remark |
|
|
1 |
Nominal Capacity |
600mAh |
0.2C Standard discharge |
|
|
2 |
Minimum Capacity |
550mAh |
||
|
3 |
Nominal Voltage |
3.2V |
Mean Operation Voltage |
|
|
4 |
Delivery voltage |
3.25~3.34V |
Within 10 days from Factory |
|
|
5 |
Charge Voltage |
3.65V±0.03V |
By standard charge method |
|
|
6 |
Standard charging method |
0.5C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C |
|
|
|
7 |
Charge current |
0.5C |
250mA |
Standard charge, charge time about 3h(Ref) |
|
1.0C |
500mA |
Rapid Charge, charge time about: ::2h(Ref) |
||
|
8 |
Standard discharging method |
0.2C constant current discharge to 2.5V, |
|
|
|
9 |
Cell Internal Impedance
|
≤80mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
|
10 |
Maximum charge current |
1C |
For continuous charging mod |
|
|
11 |
Maximum discharge current |
1C |
For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity) |
|
Pictures:

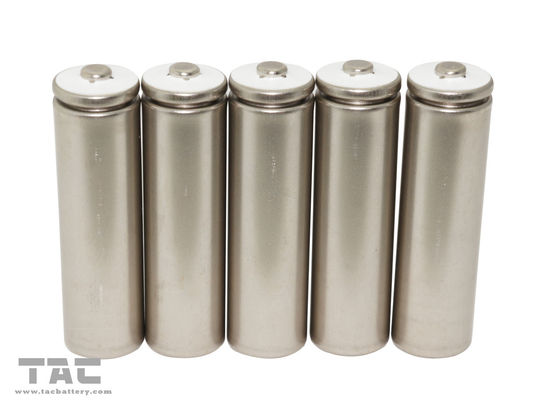

Lithium Ion IFR14500 AA 3.2v Lifepo4 Battery 450mah For Led Lamp
Size for Cell
|
NO |
Items |
Units: mm |
|
1 |
Diameter(D) |
14.2±0.3 |
|
2 |
Height(H) |
50.2±0.02 |
Packing for Cell
All packages must be labeled with 9 categories of dangerous goods and labeled with "Full Freight Transportation Only" operation label.
Application for Lithium Ion AA 3.2v Lifepo4 Battery 450mah For Led Lamp And Solar Lamp
We have various capacity and size model for Lifepo4 cell
