AA 3.2V LiFePO4 Battery 14500 For Solar Light  Solar Lawn Bike Head Lighting

AA 3.2V LiFePO4 Battery 14500 For Solar Light Solar Lawn Bike Head Lighting

Product Details:

Place of Origin: Shenzhen zhuhai
Brand Name: TAC OEM ODM
Certification: MSDS REACH ROHS
Model Number: PIFC0061

Payment & Shipping Terms:

Minimum Order Quantity: 200PCS
Price: usd 1-2
Packaging Details: Follow UN38.3 Rule
Delivery Time: 7 days for single cell 15-20 days for battery pack
Payment Terms: TT, LC, Paypal etc
Supply Ability: 50000 pack for one week
Get Best Price Contact Now

Detail Information

Material: LiFePO4 Battery Capacity: 550mah
Voltage: 3.2v Circle Life: 2000 Times
Warranty: 12 Months Pvc: Blue Or Customized
Pcm: Without Rechargeable: Yes
Specially Package: Support Part No: PIFC0294
Highlight:

lithium iron phosphate battery pack

,

lifepo4 rechargeable batteries

Product Description

AA 3.2V LiFePO4 Battery 14500 For Solar Light Solar Lawn Bike Head Lighting

Base knowledge  for AA 3.2V LiFePO4 Battery 14500 For Solar Light Solar Lawn Bike Head Lighting



Some company called this model 14505 also, in order to avoid misunderstand , pls take close attention to below information

IFR14500  3.2v  flat type

IFR14505  3.2V  Top type

The size is   High:50.0±0.5mm   Diameter: 14.3±0.2 mm

Pls check the max size  if your measure with strict require .

AA 3.2V LiFePO4 Battery 14500 For Solar Light  Solar Lawn Bike Head Lighting 0



Features for AA 3.2V LiFePO4 Battery 14500 For Solar Light Solar Lawn Bike Head Lighting


1. Model name:IFR14500/AA 400mAh 1.28Wh
2. There are IFR14500/AA 200mAh/250mAh/300mAh/400mAh/500mAh/550/600mAh available
3. The application are widely,for street light,solar product and so on.
4.  Excellent abuse tolerance and environmentally friendly
5. Excellent calendar life, 10X cycle life vs. conventional lithium ion
6. With  greater power and energy density and lower impedance.
7. Suitable for a wide variety of applications and system designs.
8. Proven performance in the toughest conditions, combining durability, reliability, and safety
9. Offers an excellent combination of price-performance.






Application for AA 3.2V LiFePO4 Battery 14500 For Solar Light Solar Lawn Bike Head Lighting



Solar street light and Lawn and Led lighting

back-up power for exploration instruments

Ups communication station

Robot and smart device

Tracking device , GPS equipment

infusion pump

intelligent vacuum cleaner

portable speaker products

Medical instrument breathing machine

desktop POS machines

portable equipment

Electrical bike , tour bus e-boat




Battery Specification List:


3.2V LiFePO4 Battery 14500 550mAh Power Type for Grid Stabilization Energy Storage Systems



No.

Items

Specifications

Remark

1

Nominal Capacity

550mAh

0.2C Standard discharge

2

Minimum Capacity

500mAh

3

Nominal Voltage

3.2V

Mean Operation Voltage

4

Delivery voltage

3.28~3.32V

Within 10 days from Factory

5

Charge Voltage

3.65V±0.03V

By standard charge method

6

Standard charging method

0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C



7

Charge current

0.2C

100mA

Standard charge, charge time about 7h(Ref)

1.0C

550mA

Rapid Charge, charge time about: ::1.5h(Ref)

8

Standard discharging method

0.2C constant current discharge to 2.5V,



9

Cell Internal Impedance

≤80mΩ

Internal resistance measured at AC 1KHZ after 50% charge

10

Maximum charge current

1C

550mA

For continuous charging mod

11

Maximum discharge current

3C

1650mA

For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity)



12

Operation Temperature and relative humidity Range

Charge

0~45℃

60±25%R.H.

Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery

Discharge

-20~60℃

60±25%R.H.

13

Storage temperature for a long time

-20~25℃

60±25%R.H.

Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.




Pictures for AA 3.2V LiFePO4 Battery 14500 For Solar Light Solar Lawn Bike Head Lighting


3.2V LiFePO4 Battery 14500 550mAh Power Type for Grid Stabilization Energy Storage Systems

3.2V LiFePO4 Battery 14500 500mAh Power Type for Grid Stabilization Energy Storage Systems

3.2V LiFePO4 Battery 14500 500mAh Power Type for Grid Stabilization Energy Storage Systems

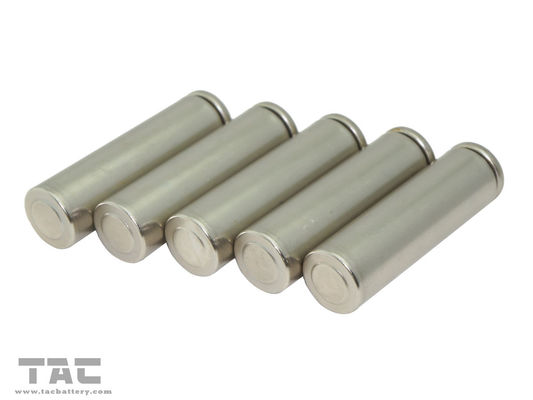

Bare cell Picture

3.2V LiFePO4 Battery 14500 500mAh Power Type for Grid Stabilization Energy Storage Systems


Packing Detail



AA 3.2V LiFePO4 Battery 14500 For Solar Light  Solar Lawn Bike Head Lighting 4



Q & A:



What is your MOQ ?

for trial order,we can accept smaller MOQ , OEM and ODM order 500-1000packs base on detail model

Can I get a sample ?
Yes,we can provide free sample,customers just need pay for it and the shipping cost. The single

Can you make my logo on the products?

Sure,ODM and OEM is welcome if your order can meet your MOQ require.

What is the warranty ?
Usually the warranty time is 12 months , if you have specially require, we can support .

Can you make products according to my design ?
Sure,we have professional engineers and technicians team and strict production standards, we guarantee that the product will be 100% the same as your design.

How about your product quality ?
"Quality is first" always is our principle,professional quality control process from raw materials to finished products,every process must be inspected and tested by our QC group,good quality must be 100% guaranteed.

How long can you send out the goods ?

Delivery :30 working days as usual for after sample approved.

7-10 days for standard and stock model
