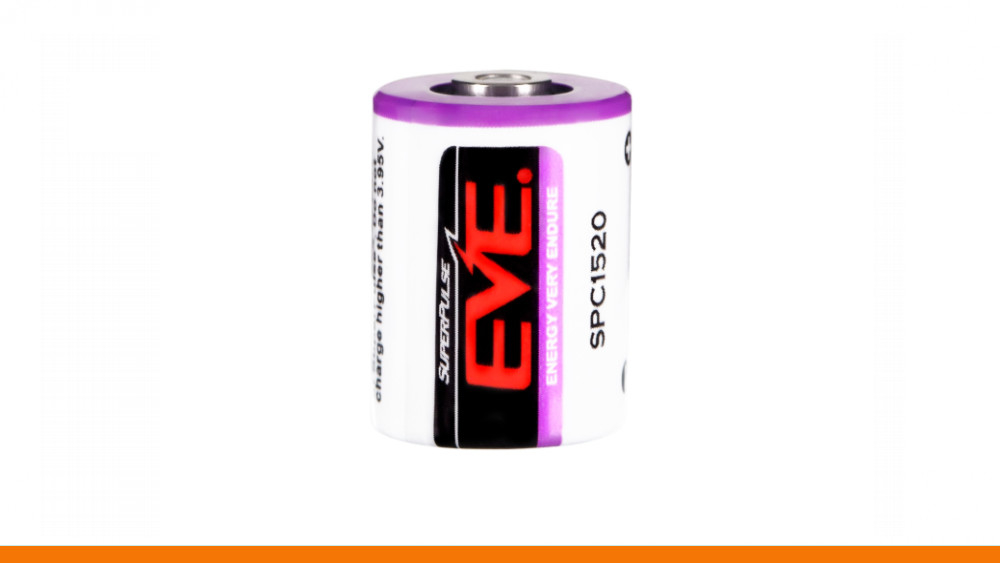

SPC1520 EVE Super Pulse Battery Capacitor For Utility Meters
Product Details:
Place of Origin: | China |
Brand Name: | EVE |
Certification: | MSDS REACH ROHS |
Model Number: | SPC1520 |
Payment & Shipping Terms:
Minimum Order Quantity: | 200PCS |
---|
Detail Information |
|||
High Light: | SPC1520 EVE Super Pulse Battery Capacitor,Utility Meters Super Pulse Battery Capacitor |
---|
Product Description
Cell type | supercapacitor |
Nominal voltage | 3,6V |
Cell capacity [Ah] | 140As |
-
Specifications:
- Nominal Voltage: 3.60V
- Cell impedance: ≤150 mOhm (at RT @ 1kHz)
- Operating temperature range: -40 °C ~ +85 °C(in ES battery system)
- Discharge capacity (at RT): when charged to 3.67V: 140A*sec
- Discharge end voltage: 2.5V
- Max. charge voltage: 3.95V
- Standard charging current: 20mA
- Max. charging current: 50 mA
Key Features
- Hermetically sealed (glass-to-metal)
- Wide operating temperature range
- Low self discharge
- End of life indication capability
- High reliability
- Lightweight
- Safe design
Main Applications
- Utility Meters (AMR)
- Asset, Container & Cargo Tracking
- RFID Devices
- Sonar Buoys
- Communication Equipment
- Emergency & Medical Devices
