78000W Solar Inverter On Grid Generac Inverter Generator Pure Sine Wave
Product Details:
| Place of Origin: | GUANGZHOU |
| Brand Name: | TAC |
| Certification: | CQC,VPC,SAA,IEC60068/IEC61683,SAA,IP65,EMC,CE |
| Model Number: | MAX 60~80KTL3 LV/MV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | 1 |
| Packaging Details: | 1pcs for one bag |
| Delivery Time: | 7-25 days after order confirm |
| Supply Ability: | 10000/month |
|
Detail Information |
|||
| Protection Degree: | IP65 | Net: | 79.5kg |
|---|---|---|---|
| Maximum DC Input Power: | 78000W | Starting Voltage: | 250V |
| Communication Connection Type: | 3W+N+PE | Maximum AC Output Power: | 66600VA |
| AC Short-circuit Protection: | Yes | Operating Temperature Range: | -25°C --+60°C |
| MAX. Efficiency: | 98.6% | Size: | 860*600*300 |
| High Light: | 78000W Solar Inverter,Pure Sine Wave Solar Inverter |
||
Product Description
MAX 60~80KTL3 LV/MV Solar Inverter On Grid ,Generac Inverter Generator,Pure Sine Wave Inverter
1.Key Feature:
- The maximum conversion efficiency is 99%, and that of China is 98.6%
- Maximum DC input voltage is 1100V
- The Smart I / V curve scan
- One-click diagnosis and wave recording
- AC / DC secondary lightning protection
- Full-power module and quad-core design
2.Essential details
MAX 60KTL3LV |
MAX70KTL3LV |
MAX80KTL3LV |
MAX60KTL3MV |
MAX70KTL3MV |
|
| Maximum DC input power | 78000W | 91000W | 104000W | 78000W | 91000W |
| Maximum DC input voltage | 1100V | ||||
| Starting voltage | 250V | ||||
|
MPPT Operating voltage range / |
200- 1000V/600V | ||||
| MPPT current per circuit | 26A | 26A | 26A | 26A | 26A |
|
MPPT quantity / MPPT per route |
6/2 | 6/2 | 7/2 | 6/2 | 6/2 |

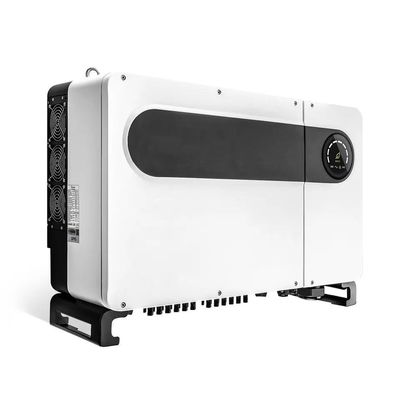

3.Product photo
MAX 60~80KTL3 LV/MV Solar Inverter On Grid ,Generac Inverter Generator,Pure Sine Wave Inverter
|
General data
|
||||||
|
Dimensions (W / H / D)
|
860/600/300mm
|
|||||
|
Weight
|
82KG
|
|||||
|
Operating temperature range
|
–25 °C ... +60 °C
|
|||||
|
Self-consumption
|
<1W
|
|||||
|
Topology
|
Transformerless
|
|||||
|
Cooling
|
Smart air cooling
|
|||||
|
Protection degree
|
IP65
|
|||||
|
Relative humidity
|
0~100%
|
|||||
|
Altitude
|
4000m
|
|||||
|
DC connection
|
H4 / MC4 (Optional )
|
|||||
|
AC connection
|
Cable gland+OT terminal
|
|||||
|
Display
|
LED/WIFI+APP
|
|||||
|
Interfaces: RS485 / USB
/WiFi/ RF/GPRS |
Yes/Yes /Optional/Optional/Optional
|
|||||
|
Warranty: 5 years / 10 years
|
Yes / Optional
|
|||||
|
Protection devices
|
||||||
|
DC reverse polarity protection
|
Yes
|
|||||
|
DC switch
|
Yes
|
|||||
|
DC surge protection
|
Type II / Type II
|
|||||
|
Insulation resistance monitoring
|
Yes
|
|||||
|
AC short-circuit protection
|
Yes
|
|||||
|
Ground fault monitoring
|
Yes
|
|||||
|
Grid monitoring
|
Yes
|
|||||
|
Anti-islanding protection
|
Yes
|
|||||
|
Residual-current monitoring unit
|
Yes
|
|||||
|
String monitoring
|
Yes
|
|||||
|
AFCI protection
|
Optional
|
|||||
|
Anti-PID function
|
Optional
|
|||||
4..About this items
- 【This is a multifunctional split-phase output grid solar inverter with a MPPT solar charge, a low frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup and self-consumption application.】
- 【The whole system also need other devices to achieve complete running such as PV modules generator, or utility grid.】
- 【Compatible to mains voltage or generator power. WIFI remote monitoring (optional).】
- 【Configurable AC/solar input priority via LCD setting. Overload, short circuit and deep discharge protection.】
