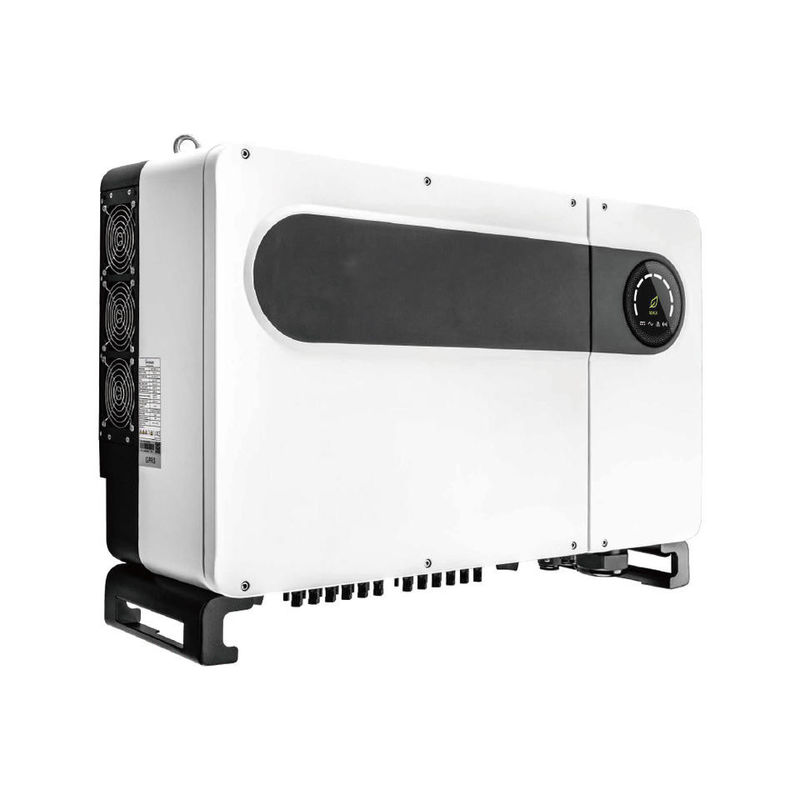

IP66 MAX 175~230KTL3-X HV On Grid Solar Inverter 9/12/15 MPPT Design

IP66 MAX 175~230KTL3-X HV On Grid Solar Inverter 9/12/15 MPPT Design

Product Details:

Place of Origin: GUANGZHOU
Brand Name: TAC
Certification: CQC,VPC,SAA,IEC60068/IEC61683,SAA,IP65,EMC,CE
Model Number: MAX 175~230KTL3-X HV

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: 1
Packaging Details: 1pcs for one bag
Delivery Time: 7-25 days after order confirm
Supply Ability: 10000/month
Get Best Price Contact Now

Detail Information

Input Voltage: 1500V Power Grid Wiring Mode: 3W/PE
The DC Terminal Subtype: H4 / MC4 (optional) Net: 95kg
Warranty: 5 Years /10 Years: Yes/Optional AC Connection: Connector
Size: 1120*670*370 DC Reverse Polarity Protection: Yes
MAX. Efficiency: 99% AC/DC Surge Protection: Type II / Type II
High Light:

IP66 Solar Inverter

,

MPPT On Grid Solar Inverter

Product Description

Solar Inverter MAX 175~230KTL3-X HV ,On Grid Solar Inverters 9/12/15 MPPT Design



1.Key Feature:

  •   Maximum efficiency 99%, China efficiency 98.5%
  •   9/12/15 MPPT design, adapt to complex application scenarios
  •   String detection and I/V scanning to accurately locate abnormal strings
  •   The maximum DC 15A for a single string supports the access of high-power components
  •   Support two-connection-one connection of strings, saving DC cable costs
  •   Support large-diameter aluminum wire access, saving AC cable costs
  •   Support PLC communication, save communication cable and construction cost

  2.Protection devices:



Protection devices
DC reverse polarity protection Yes
DC Switch Yes
AC/DC surge protection Type II / Type II
Insulation resistance monitoring Yes
AC short-circuit protection Yes
Ground fault monitoring Yes
Grid monitoring Yes
Anti-islanding protection Yes
Residual-current monitoring unit Yes
String fault monitoring Yes
AFCI protection Optional





Solar Inverter MAX 175~230KTL3-X HV ,On Grid Solar Inverters 9/12/15 MPPT Design

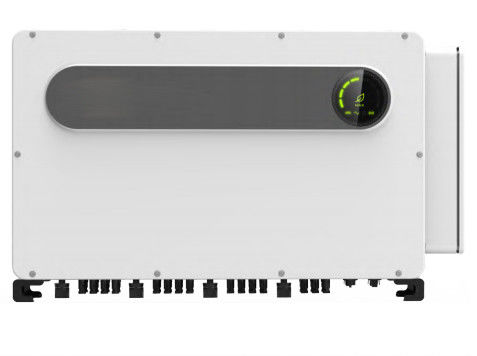

IP66 MAX 175~230KTL3-X HV On Grid Solar Inverter 9/12/15 MPPT Design 0

3.General data:



General data
Operating temperature range –30°C ... +60°C
Nighttime power consumption < 1W
Topology Transformerless
Cooling Natural convection
Protection degree IP66
Relative humidity 0~100%
Altitude 4000m
DC connection H4/MC4(Optional)
AC connection Connector
Display OLED+ LED/WIFI+APP
Interfaces: USB/RS485/WiFi /GPRS/LAN/RF Yes/Yes/Optional/Optional/Optional/Optional
