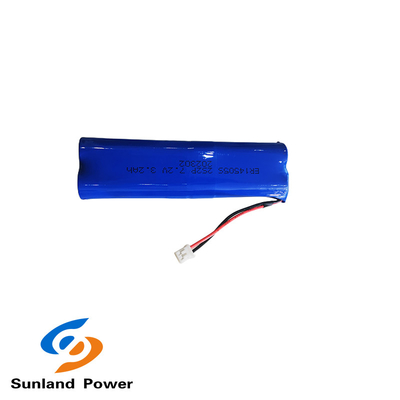

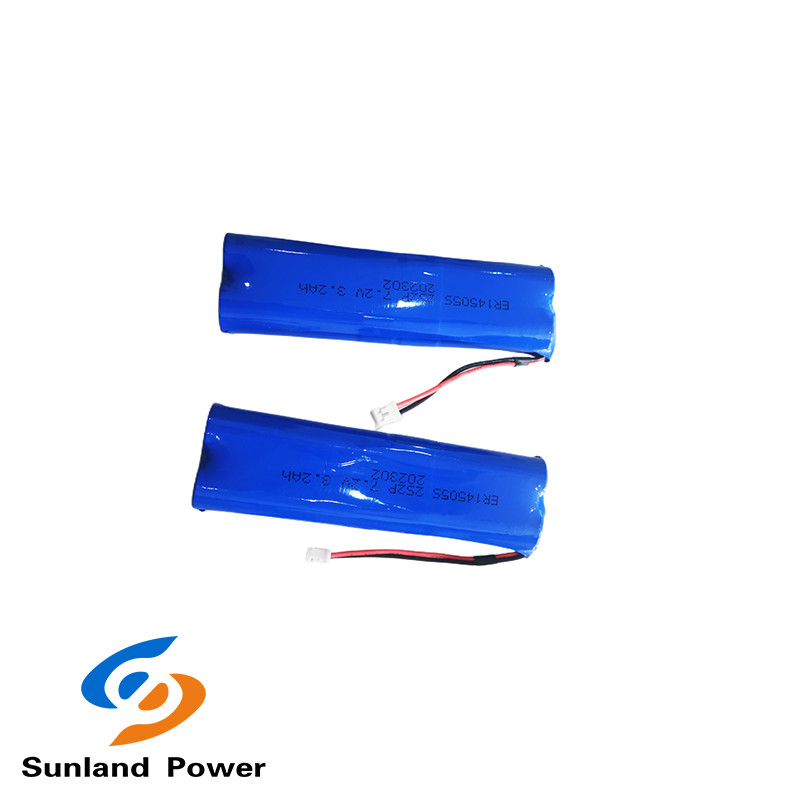

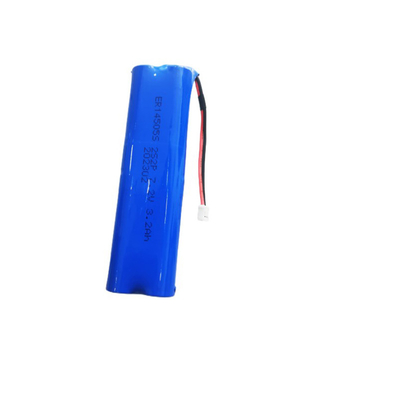

ER14505S 3.6V Primary Lithium Battery For Medical Instruments Alarms And Security Systems
Product Details:
| Place of Origin: | GUANGZHOU & SHENZHEN |
| Brand Name: | TAC |
| Certification: | MSDS REACH ROHS |
| Model Number: | ER14505S 3.6V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | 1 |
| Delivery Time: | 7-25 days after order confirm |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000 per week |
|
Detail Information |
|||
| Nominal Capacity: | 1.8Ah | Nominal Voltage: | 3.6V |
|---|---|---|---|
| Max. Continuous Current: | 100mA | Typical Max. Pulse Current: | 200mA |
| Operating Temperature Range: | -40~+150℃ | Dimension(Max): | 14.5*50.5mm |
| Typical Weight: | 17g | ||
| High Light: | 3.6V Primary Lithium Battery,ER14505S Primary Lithium Battery |
||
Product Description
ER14505S 3.6V Primary Lithium Battery For Medical Instruments ,Alarms And Security Systems
Basic parameters:
Cell size references AA
Electrocal characteristics(Typical values relative to cells stored for one year or less at +30℃ max)
Nominal capacity 1.8Ah(At 1mA +20℃,2.0Vcut off. The capacity restored varies according to current, temperature, cut-off-voltage)
Nominal voltage(20℃) 3.6V
Max. continuous current(20℃) 100mA
Typical Max. pulse current(20℃) 200mA
Pulse capability: Typically up to 200mA(200mA/0.1 second pulses drained every 2min at 20℃ from cells with 10μA base current, yielding voltage readings above 2.0V. The readings may vary according to pulse characteristics, temperature and cell’s previous history. Consult ACT if necessary)
Storage(recommended) +30℃ Max
Operating temperature range -40~+150℃(High and low temperature will lower the capacity and load voltage)Physical characteristics
Dimension(Max) 14.5*50.5mm
Typical weight 17g
ER14505S 3.6V Primary Lithium Battery For Medical Instruments ,Alarms And Security Systems
Key features
>High and stable load voltage
>Superior drain capacity
>Low self-discharge rate
(Less than 1% after 1 year of storage
at 20℃)
>Stainless steel container
>Hermetic glass-to-metal sealing
>Laser welding
>Non flammable electrolyte
Main applications
>Radio communication and other
Military applications
>Alarms and security systems
>RFID
>Beacons and emergency location transmitters
>GPS equipments
>Metering systems
>Led lighting applications
>Others
Storage
>Cells should be stored in a clean &
dry (less than 70%RH) area
>Temp. should not exceed +30℃
Warning
>Do not use if cell casing is mangled
>Do not use different model of cell in series
>Do not try to recharge
>Do not throw into fire
