Place of Origin: | guangzhou |
Brand Name: | TAC |
Certification: | UL, ROHS |
Model Number: | PIFC0345 |
Minimum Order Quantity: | 1000 |
---|---|
Price: | usd 3 |
Packaging Details: | 6pcs/box 96pcs/carton |
Delivery Time: | 14days |
Payment Terms: | TT, LC, Pay pal etc |
Supply Ability: | 100,000pcs/Day |
Type: | 3.2V LiFePO4 Battery | Capacity: | 3200mah |
---|---|---|---|
Voltage: | 3.2v | Circle Life: | 2000 Times |
Warranty: | 1 Year | Pvc Color: | Blue |
Size: | 26*65mm | Pcb: | Without |
Assemble: | Workable |

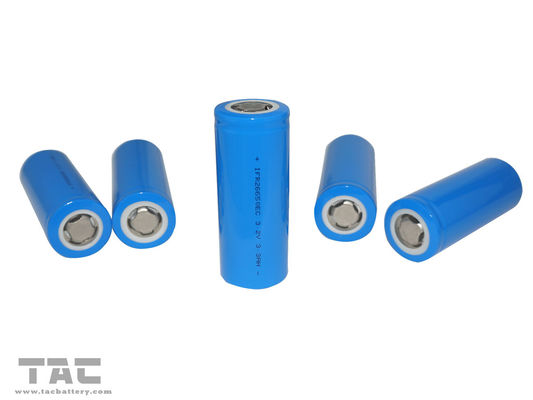

Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike Battery Pack
Energy Type Li-ion 3.2V LiFePO4 Battery 26650 3200mAh for E-bike battery pack
No. |
Items |
Specifications |
1 |
Charge cut-off voltage |
3.65V |
2 |
Nominal voltage |
3.2V |
3 |
Minimal capacity |
3200mAh @ 0.2C Discharge |
4 |
Nominal capacity |
3150mAh @ 0.2C Discharge |
5 |
Charge current |
1C |
6 |
Standard charging method |
1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C |
7 |
Charging time |
Standard charge: 2.0 hours Ref |
8 |
Max. charge current |
2C |
9 |
Max. continue discharge current |
10A (Cell skin temperature cannot exceed 80°C) |
10 |
Discharge cut-off voltage |
2.0V |
11 |
Operating temperature |
Charging: -10°C ~ 45°C Discharging: -20°C ~ 60°C (Cell skin temperature cannot exceed 80°C) |
12 |
Storage temperature/humidity |
Temperature -10°C ~ +35°C Humidity 65%±20%RH (Recommended to store 23 ± 5°C for long term storage) |
13 |
Cell Weight |
80.0g±1.0g |
14 |
Cell Dimension |
Length: 65.0±0.3 mm Width: 26.2±0.2 mm |
