9.6V LiFePO4 Battery Pack IFR26650 Cylindrical 9.9Ah For EV E-Car
Product Details:
| Place of Origin: | Shenzhen zhuhai |
| Brand Name: | TAC OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | LiFePO4 26650 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | usd 10-20 |
| Packaging Details: | Follow UN38.3 Rule |
| Delivery Time: | 7 days for single cell 15-20 days for battery pack |
| Payment Terms: | TT, LC, Paypal etc |
| Supply Ability: | 50000 pack for one week |
|
Detail Information |
|||
| ITEM: | PIFP0978 | Materail: | Lifepo4 |
|---|---|---|---|
| Capacity: | 9900mah | Voltage: | 9.6v |
| Circle Life: | 2000 Times | Guarantee: | 12 Months |
| Pvc: | Blue Or OEM | Size: | Customized |
| Highlight: | lifepo4 battery pack,lithium iron phosphate battery pack |
||
Product Description
9.6V LiFePO4 Battery Pack IFR 26650 Cylindrical 9.9Ah For EV E-Car
Features For 9.6V LiFePO4 Battery Pack IFR 26650 Cylindrical 9.9Ah For EV E-Car
- Excellent abuse tolerance and environmentally friendly passed Reach certification
- Excellent calendar life 2000times 10X cycle life vs. conventional lithium ion
- With greater power and energy density and lower impedance and high consistency
- Suitable for a wide variety of applications and system designs.
- Proven performance in the toughest conditions, combining durability, reliability, and safety
- Offers an excellent combination of price-performance.
Application For 9.6V LiFePO4 Battery Pack IFR 26650 Cylindrical 9.9Ah For EV E-Car
- Portable storage power devices
- Stationary battery backup systems ups
- Grid stabilization energy storage systems
- Commercial truck and bus hybrid electric vehicles (HEVs)
BatterySpecification Data:
| No. | Items | Specifications |
Remark
|
|
| 1 |
Nominal Capacity
|
9900mAh |
0.2C Standard discharge
|
|
| 2 |
Minimum Capacity
|
9800mAh | ||
| 3 |
Nominal Voltage
|
9.6V |
Mean Operation Voltage
|
|
| 4 |
Delivery voltage
|
7.5V |
Within 10 days from Factory
|
|
| 5 |
Charge Voltage
|
10.95V±0.03V |
By standard charge method
|
|
| 6 |
Standard charging method
|
0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C |
|
|
| 7 |
Charge current
|
0.2C | 198mA |
Standard charge, charge time about 6h(Ref)
|
| 0.5C | 495mA |
Rapid Charge, charge time about: 3h(Ref)
|
||
| 8 |
Standard discharging method
|
0.2C constant current discharge to2.0V, | ||
| 9 |
Cell Internal Impedance
|
≤30mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
|
|
Charge and discharge performance & size
| No. | Items | Specifications |
Remark
|
|
| 10 |
Maximum charge current
|
1C | 9900mA |
For continuous charging mod
|
| 11 |
Maximum discharge current
|
2C | 19800mA |
For continuous discharge mod
|
| 12 |
Operation Temperature and relative humidity Range
|
Charge |
0~45℃ 60±25%R.H. |
Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery
|
| Discharge |
-20~60℃ 60±25%R.H. |
|||
| 13 |
Storage temperature for a long time
|
-20~25℃ 60±25%R.H. |
Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.
|
|
Figure : External Dimension Drawing
Packing and Delivery
10 pcs in one box 5 box in one carton
Delivery Time
10-15 days for bulk battery
25-35 days for customized battery pack order

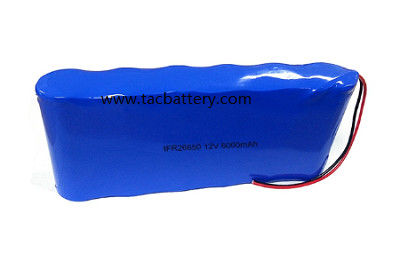

The Lifepo4 Battery Pack Made By 26650 Cell
Quality Control Process
Made the lifePO4 battery cell follow standard work flow test voltage capacity resistance one by one via Auto machine before shipped out from factory
