ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool

ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool

Product Details:

Place of Origin: GUANGZHOU
Brand Name: Sunland
Certification: ROHS,REACH,UL,UN38.3,MSDS
Model Number: ICR18650

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: US$1.4
Packaging Details: 50pcs/box, 4 boxes/carton
Delivery Time: 14 days
Payment Terms: T/T, Western Union
Supply Ability: 100000PCS/week
Get Best Price Contact Now

Detail Information

Type: Rechargeable Lithium Ion Batttery Voltage: 3.7V
Capacity: 2250mAh PCB: YES
Application: Pasture Coverage Meter Measurement Tool Cycle Life: ≥500 Times
Max Size: D:19.5mm*H:69.5mm Connector: JST PHR-2P 22AWG
Highlight:

3.7V Lithium Ion Cylindrical Battery

,

ICR18650 Lithium Ion Cylindrical Battery

,

Lithium Ion Cylindrical Battery 2250mAh

Product Description

ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool



Feature:



1. Main application for pasture coverage meter measurement tool

2. PCB on the top,keep the diameter can not exceed 19.5mm

3. 10K NTC





ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool



Specification:



No. Items Specifications

Remark

1

Capacity for assembled cell discharging by 0.2C

≥2150mAh

Standard discharging method

2

Maximum charge current

2A 0~45℃
3

Maximum discharge current

2A

-20~60℃



4

Battery Voltage

3.6-3.9V

Delivery Voltage, Within 10 days from Factory

5

Standard charge condition

Charge with 0.2C constant current and 4.2V constant voltage, charge to 4.2V,continue charging till current decline to ≤0.01C

Charge voltage: 4.2V±0.03V

Charge current:0.2C

6

Standard discharging method

0.2C constant current discharge to 2.3V,
7

Internal Impedance

Assemblage Impedance

≤180mΩ

Measure the Red and black wire of the connector after assembling.

8

Battery pack dimension

D:19.5mm*H69.5mm
9 Case Blue PVC


ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool

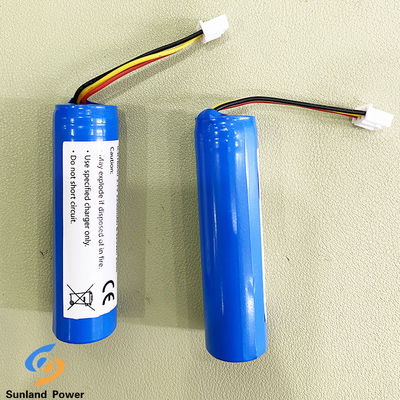

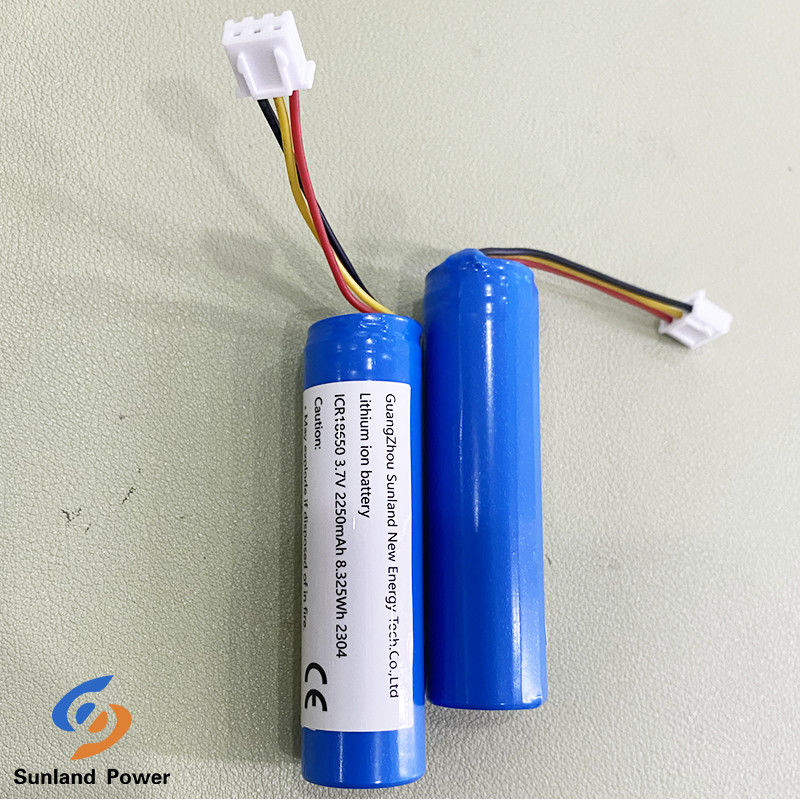

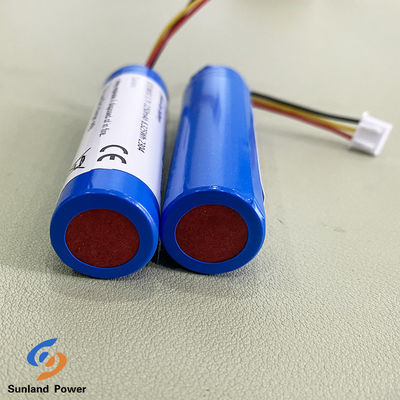

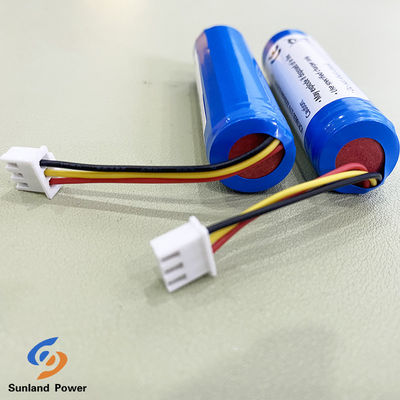

Picture:

ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool 0ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool 1ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool 2ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool 3



NO Part name Quantity Unit Remark
1 Cell 1 ea ICR18650
2 PCM 1 Ea P-1YL1708LAS
3 Wire 2 Ea UL1007/26AWG,red,yellow,black
4 PVC 1   Blue PVC
5 Connector/ 1 pcs XH-3P
6 Label 1 pcs




ICR18650 2250mAh 3.7V Lithium Ion Cylindrical Battery For Pasture Coverage Meter Measurement Tool



Cycle Life

Charging and discharging battery as  blew conditions:

0.5C standard charge to 4.2V end-off

0.5Cstandard discharge to 3.0V cut-off



Continuous charge and discharge for 500 cycles ,the capacity will be measure after the 500th cycle
