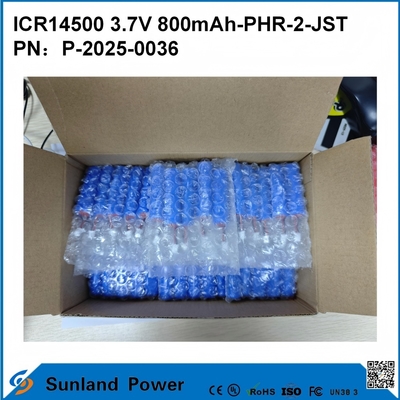

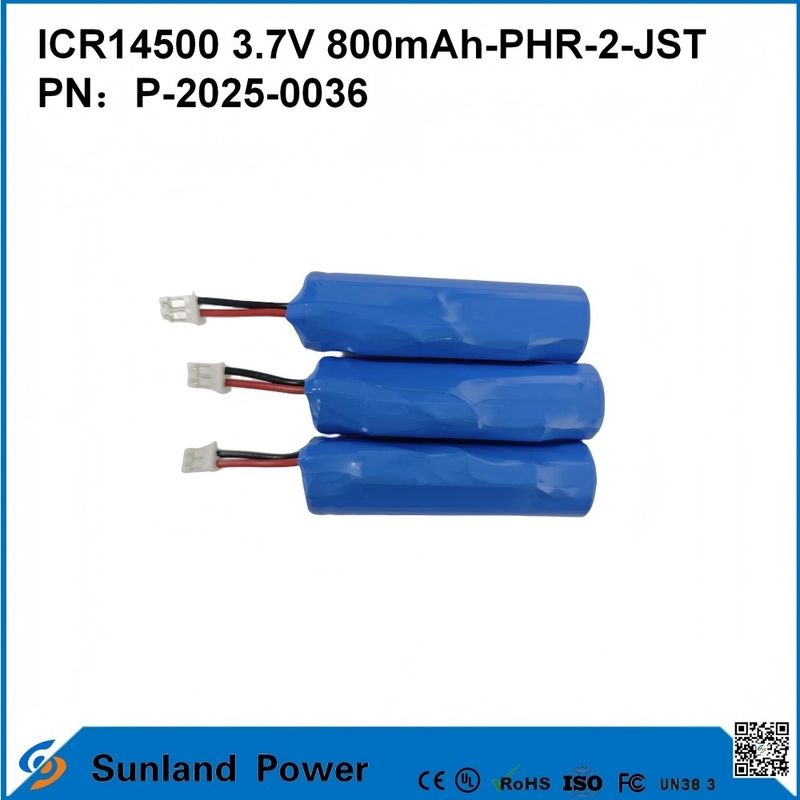

ICR14500 3.7V 800mAh-PHR-2-JST-10mm Wire Battery
Product Details:
| Place of Origin: | GUANGZHOU CHINA |
| Brand Name: | Sunland |
| Certification: | UN38.3 MSDS |
| Model Number: | P-2025-0036 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton with protective liner |
| Supply Ability: | Negotiable |
|
Detail Information |
|||
| Highlight: | ICR14500 lithium ion battery,3.7V 800mAh battery with JST connector,cylindrical battery with 10mm wire |
||
|---|---|---|---|
Product Description
ICR14500 3.7V 800mAh-PHR-2-JST-10mm Wire
Battery specifications
|
No. |
Items | Specifications | Remark |
|
1 |
Capacity for assembled cell by 1 .0 C charge 1 .0 C discharge
|
≥750mAh |
Standard discharging method |
|
2 |
Battery Voltage |
3.60-3.95V |
Delivery Voltage, Within 10 days from Factory
|
|
3 |
Standard charge condition, |
Charge with 0 . 2 C constant current and 4. 175V constant voltage, charge to 4. 175V,continue charging till current decline to ≤0 .0 1C
|
Charge voltage: 4. 175V±0.02V Charge current:0 . 2 C
|
|
4 |
Standard discharging method |
0 .2 C constant current discharge to 3.0 V |
|
|
5 |
Internal Impedance |
Assemblage Impedance≤180mΩ |
Measure the Red and black wire of the connector after assembling.
|
|
6 |
Weight |
28g |
