Product Details:

Place of Origin: GUANGZHOU
Brand Name: TAC
Certification: IEC62619/CE/UN3.83/MSDS/ ROHS/UL
Model Number: SL512-H

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: usd 1
Delivery Time: 7-25 days after order confirm
Payment Terms: L/C, T/T
Supply Ability: 5000 per month
Get Best Price Contact Now

Detail Information

Capacity: 100Ah Nominal Voltage: 51.2V
Power: 510KWH Module: 51.2V 100AH
Assembling Method: 16S1P Module Size: 482mm*480mm*134mm
Module Weight: 45KG Total Weight: 500KG
Highlight:

512V LiFePO4 Battery

,

100AH LiFePO4 Battery

,

Solar Energy Storage Systems LiFePO4 Battery

Product Description

51.2KWH Hight Voltage 512V 100AH LiFePO4 Battery Energy System Solar Energy Storage Systems​

1.Function Characteristics

Using mature and stable lithium iron phosphate cell, 3.2V100Ah

With parallel current limiting function

Compatible with multiple protocols to match multiple inverters

Support a variety of communication modes, one RS485 parallel communication, the other RS485 can
connect to external inverter, CAN connect to external inverter

Power indicator and status indicator function


51.2KWH Hight Voltage 512V 100AH LiFePO4 Battery Energy System Solar Energy Storage Systems​
2.Parameters(Ta=23℃)

   NO

Project

Qualification

Remarks

2.1 Technical requirements for battery module
2.1.1

     Minimum capacity

Rated capacity*97%

0.5C/25℃
2.1.2

Rated capacity

100Ah
2.1.3

Nominal voltage

512V

160 Series



2.1.4



Chassis dimensions


2.1.5



Chassis material

Q235
2.1.6



Waterproof grade

IP30
2.1.7



Charging maximum voltage

584V 3.65V/pcs
2.1.8



Discharge minimum voltage

400V 2.5V/pcs
2.1.9



Standard charging current

0.33C
2.110



Max continuous charging current

1C





2.1.11



Standard discharge current

0.33C
2.1.12



Max continuous discharge current

1C
2.1.13



Cycle life

≥3000 cycles



0.2C charging, discharge/25℃/ 80%DOD

2.1.14



Weight

500KG



(based on the actual weight of the product)

2.1.15



Discharge operating temperature range

-20~+65℃ Try to avoid the battery being exposed to high temperature (≥35℃) for a long time. High temperature and low power will easily lead to accelerated degradation of battery performance.
2.1.16



Storage temperature

-20~+50℃ SOC40~60%
2.1.17



Relative humidity

5~95%



No condensation, battery system working properly

2.1.18



Height

<1.6m
2.1.19



Quality guarantee period



3 years



3-year free warranty maintenance

2.1.20



Shipment with electricity

SOC:20%-60%: 51V-52.8V
2.1.21



communication port.

RS 232*1+CAN*2
2.1.22  Run, alarm LED light display

LED light (green,red)


2.1.23

Anti-theft function

Not


2.1.24

Communicating protocol

CAN protocol
2.1.25

Charging limit current

20A
2.1.26

Reverse protection

Not


2.1.27

Dial switch

6 bit binary


2.1.29

Display screen

Yes


2.1.29

Dry connect

Not


2.1.30

Capacitive load

30000uF(Max)


2.1.31

Heating film

200W




51.2KWH Hight Voltage 512V 100AH LiFePO4 Battery Energy System Solar Energy Storage Systems​

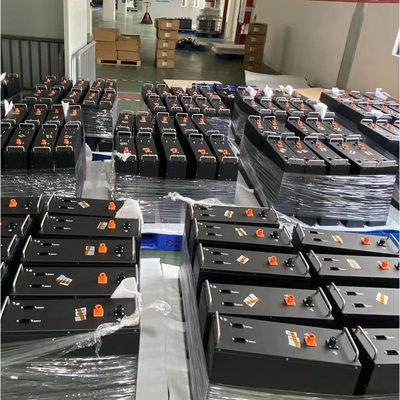

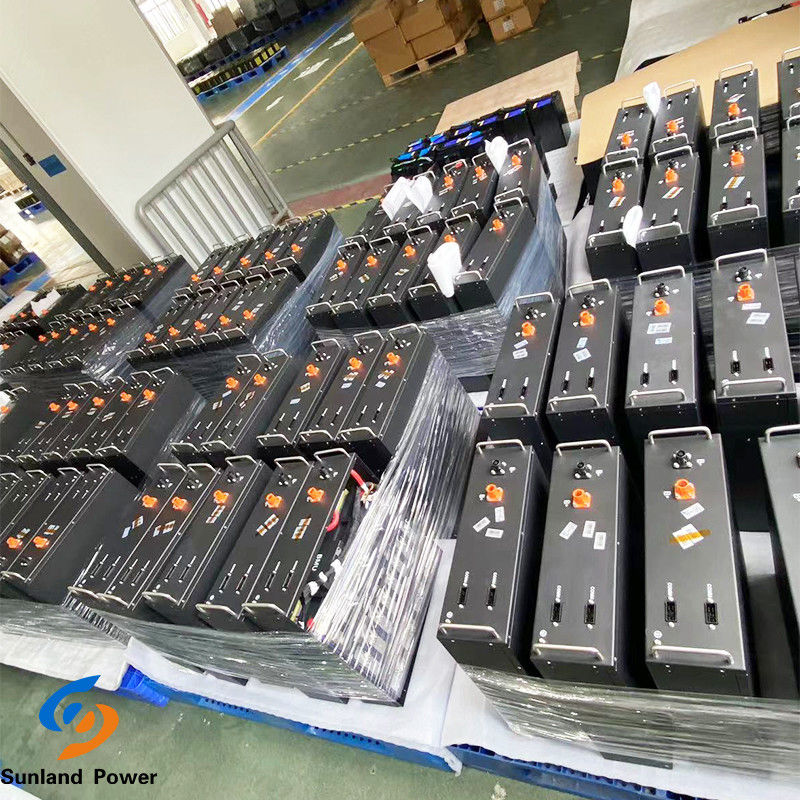

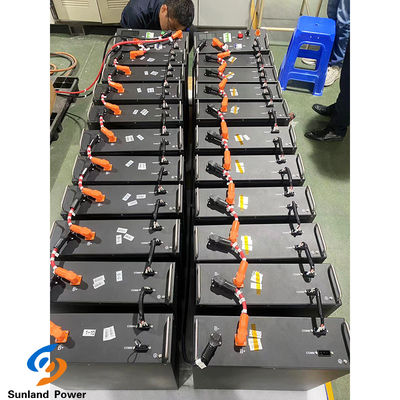

Picture:



51.2KWH Hight Voltage 512V 100AH LiFePO4 Battery Energy System Solar Energy Storage Systems 051.2KWH Hight Voltage 512V 100AH LiFePO4 Battery Energy System Solar Energy Storage Systems 151.2KWH Hight Voltage 512V 100AH LiFePO4 Battery Energy System Solar Energy Storage Systems 2



5.Operating Instruction

Before using the batteries, carefully read the service manual and the specification of the batteries.

Please use the batteries in a normal environment, charge temperature is 0~45, discharge temperature -20~60
and the relative humidity is 65%±20%.

During their use, the batteries should be kept away from heat sources and high voltages, children should not be allowed
to play with them, and they should not be knocked violently.

In no circumstance should the positive and negative poles of the battery be short circuited. Do not disassemble or
assemble the batteries yourself and do not place the batteries in a damp place in order to avoid danger.

When the batteries are not to be used for a long time, please store them safely so that they will stay in a half-charged
state. Please wrap the batteries with non-conductive materials in order that metallic materials will not contact the
batteries directly, which may result in damage to the batteries. Keep the batteries in a cool and dry place.

Please dispose of the used batteries properly. Do not throw them in fire orwater.

If the battery is to be used in other devices, please consult with the supplier about the degree of perfection of its
protective function, Do not make arbitrary decisions to use battery in other devices.


6.Cautions



emperature range during charging

The recommended temperature range for battery charging is between 0℃ and 45℃. Charging of the
batteries out of that temperature range will cause the performance of the batteries to decrease and their
life to shorten.

 Consultation

When purchasing the batteries, be careful to remember the way to stay in contact with the seller so that
you can contact the seller and have consultation with it when needed.

 Warranty period

The manufacturer will not replace the battery free of charge even in the warranty period if the problem
with the battery results from misuse rather than bad quality.

Safety use guaranteed

If the battery is to be used in other devices, please consult with the supplier about the degree of
perfection of its protective function. You should at least have a clear knowledge of such issues as the
heavy current, fast charging and special application of the battery
