Rechargeable 3.2V LiFePO4 Battery Portable For Medical Device IFR14505 AA
Product Details:
| Place of Origin: | Shenzhen zhuhai |
| Brand Name: | TAC OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | PIF0001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | usd 1-2 |
| Packaging Details: | Follow UN38.3 Rule |
| Delivery Time: | 7 days for single cell 15-20 days for battery pack |
| Payment Terms: | TT, LC, Paypal etc |
| Supply Ability: | 50000 pack for one week |
|
Detail Information |
|||
| Packing: | PVC Shrink | Colour: | Bare |
|---|---|---|---|
| Matieral: | LIFEPO4 | Voltage: | 3.2v |
| Capacity: | 500mah | Circle Life: | 2000 Times |
| Warranty: | 12months | Rechargeable: | Yes |
| OEM: | Workable | ||
| High Light: | lithium iron phosphate battery pack,lifepo4 rechargeable batteries |
||
Product Description
Rechargeable 3.2V LiFePO4 Battery Portable For Medical Device IFR14505 AA
Some company called this model 14505 also, in order to avoid misunderstand , pls take close attention to below information
IFR14500 3.2v flat type
IFR14505 3.2V Top type
The size is High:50.0±0.5mm Diameter: 14.3±0.2 mm
Pls check the max size if your measure with strict require .
Features for Rechargeable 3.2V LiFePO4 Battery Portable For Medical Device IFR14505 AA
1. Model name:IFR14500/AA 500mAh 1.6Wh
2. There are IFR14500/AA 200mAh/250mAh/300mAh/400mAh/500mAh/600mAh available
3. The application are widely,for street light,solar product and so on.
4. Deep cycle life,it is about 2000 times
Application:
-
Portable high power devices
-
Stationary battery backup systems
-
Grid stabilization energy storage systems
-
Commercial truck and bus hybrid electric vehicles (HEVs)
BatterySpecification List:
3.2V LiFePO4 Battery 14500 500mAh Power Type for Grid Stabilization Energy Storage Systems
|
No. |
Items |
Specifications |
Remark |
|
|
1 |
Nominal Capacity |
500mAh |
0.2C Standard discharge |
|
|
2 |
Minimum Capacity |
450mAh |
||
|
3 |
Nominal Voltage |
3.2V |
Mean Operation Voltage |
|
|
4 |
Delivery voltage |
3.28~3.32V |
Within 10 days from Factory |
|
|
5 |
Charge Voltage |
3.65V±0.03V |
By standard charge method |
|
|
6 |
Standard charging method |
0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C |
|
|
|
7 |
Charge current |
0.2C |
120mA |
Standard charge, charge time about 7h(Ref) |
|
1.0C |
600mA |
Rapid Charge, charge time about: ::1.5h(Ref) |
||
|
8 |
Standard discharging method |
0.2C constant current discharge to 2.5V, |
|
|
|
9 |
Cell Internal Impedance |
≤80mΩ |
Internal resistance measured at AC 1KHZ after 50% charge |
|
|
10 |
Maximum charge current |
1C |
500mA |
For continuous charging mod |
|
11 |
Maximum discharge current |
3C |
1500mA |
For continuous discharge mod(Discharge capacity for more than 80% of the nominal capacity) |
|
12 |
Operation Temperature and relative humidity Range |
Charge |
0~45℃ |
Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery |
|
Discharge |
-20~60℃ |
|||
|
13 |
Storage temperature for a long time |
-20~25℃ |
Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months. |
|
Packaging for Bulk

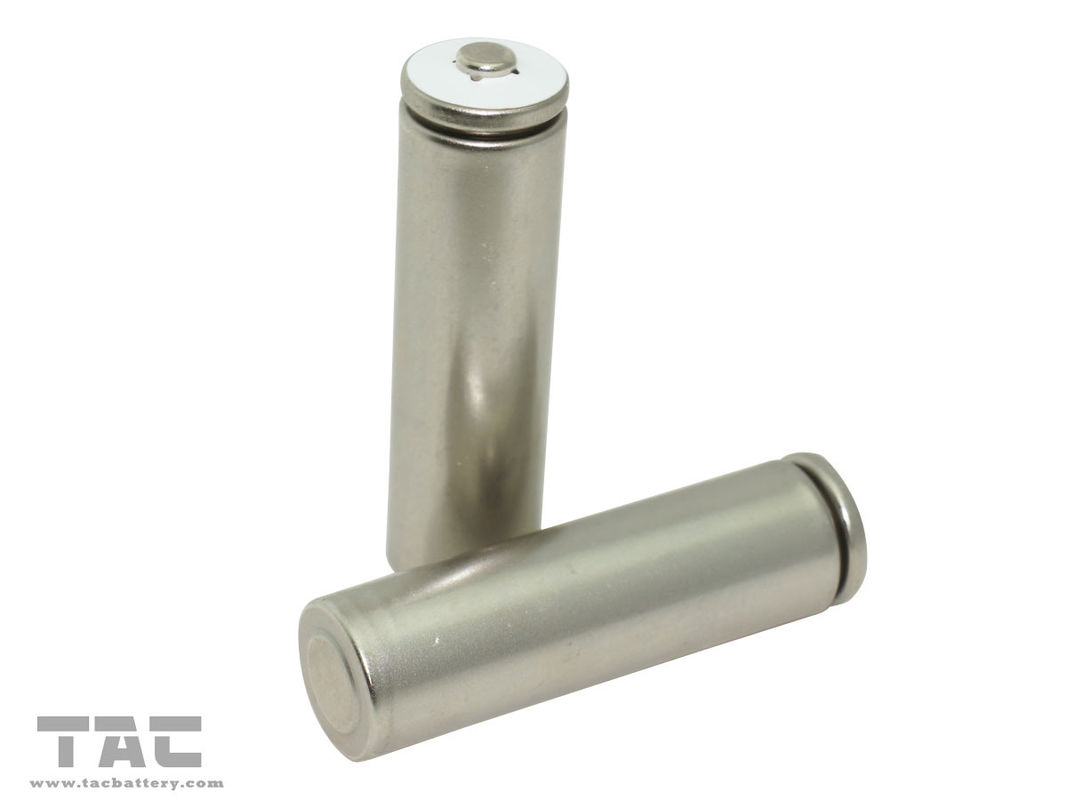

Pictures For Rechargeable 3.2V LiFePO4 Battery Portable For Medical Device IFR14505 AA Bare cell
The normal package for blue PVC jacket picture similar as below
Interior Structure for 3.2V LiFePO4 Battery Portable For Medical Device IFR14505
The similar size for LIFEPO4 Battery
| ITEM | CAPACITY | VOLTAGE |
| IFR10280 | 80MAH | 3.2V |
| IFR10440 | 250MAH | 3.2V |
| IFR14500 | 750MAH | 3.2V |
| IFR17335 | 800MAH | 3.2V |
| IFR18500 | 1500MAH | 3.2V |
| IFR18650 | 2000MAH | 3.2V |
| IFR26650 | 3300MAH | 3.2V |
| IFR32650 | 5000MAH | 3.2V |
