Rechargeable Cylindrical 3.2V LiFePO4 Battery IFR32650 5000mAh For Solar System
Product Details:
| Place of Origin: | Shenzhen zhuhai |
| Brand Name: | TAC OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | IFR32650 3.2V 5000mAh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200PCS |
|---|---|
| Price: | usd 3-5 |
| Packaging Details: | Follow UN38.3 Rule |
| Delivery Time: | 7 days for single cell 15-20 days for battery pack |
| Payment Terms: | TT, LC, Pay pal etc |
| Supply Ability: | 50000 pack for one week |
|
Detail Information |
|||
| Model Number:: | IFR32650 3.2V 5000mAh | Brand Name:: | TAC-PIFC0835 |
|---|---|---|---|
| Nominal Voltage:: | 3.2V | Rated Capacity:: | 5000mAh |
| Type:: | LifePO4 Battery | Dimension:: | Φ32.5×67.2mm |
| Circle Life: | 2000 Times | Warranty: | 1 Year |
| High Light: | lifepo4 battery pack,lifepo4 rechargeable batteries |
||
Product Description
Rechargeable Cylindrical 3.2V LiFePO4 Battery IFR32650 5000mAh For Solar System
Rechargeable Cylindrical 3.2V LiFePO4 Battery IFR32650 5000mAh for Solar System
Quick Detail for Rechargeable Cylindrical 3.2V LiFePO4 Battery IFR32650 5000mAh for Solar System
| Model Number: | IFR32650 3.2V 5000mAh | Brand Name: | TAC-PIFC0835 |
| Nominal Voltage: | 3.2V | Rated Capacity: | 5000mAh |
| Type: | LifePO4 Battery | Dimension: | Φ32.5×67.2mm |
| Weight: | About 140g | Certification | UN, ROHS |
| OEM & ODM: | Support | Warranty: | 12months |
|
Features: 1. Rechargeable Cylindrical LifePO4 Battery IFR32650 3.2V 5000mAh 2. high capacity for same size 3. Steady output voltage 3.2v Full charge 3.65V 4. Little self-discharge 5. Double safety protection with PCB 6. IFR32650 and IFR32700 is same model , The size is D=32MM H=70+/-5MM , So some buyer call 32650, and some buyer call 32700 |
|||
Packaging & Delivery Information
| Packaging Details: |
20 pcs batteries for one inner box and devided with thin paper board 6 box for one carton with UN38.3 certification |
| Delivery Detail: |
within 7 days for single cell 25 days for customized pack order |
Rechargeable Cylindrical LifePO4 Battery IFR32650 3.2V 5000mAh Specificaton
| 1 | Model | IFR 32650 | |||
| 2 | Casing material for single cell | steel case for single cells | |||
| 3 | Standard capacity(0.2C5A) | 5Ah | |||
| 4 | Mininum Capacity(0.2C5A) | 4.9Ah | |||
| 5 | Rated voltage | 3.2V | Work voltage | ||
| 6 | Max.Charge voltage | 3.65V | |||
| 7 | Cut-off voltage | 2.3V | |||
| 8 | Standard charge and discharge current | 0.2C5A | |||
| 9 | Max Continuous discharge current | 1.5C5A | |||
| 10 | Diameter | 32.5 ±0.2 mm | |||
| 11 | Height | 67.2 ±0.2 mm | |||
| 12 | Approx. Weight (including case) | About 140g | |||
| 13 | Max, at 1000Hz.Impedance | ≤ 15mΩ | |||
| 14 | Operate temperature | Charge | 0℃～45℃ | ||
| discharge | -20℃～60℃ | ||||
| storage | -20℃～45℃ | ||||
IFR32650 3.2V 5000mAh Applications:
1. for repairing toys and laptop batteries. Solar Fence
2. Solar and wind power generation energy storage devices
3. Small medical equipment and portable equipment
4. . Large-scale electric vehicles: electric bus, electric car, E-Tour Car
5. Light electric car: ebike, electric scooter,emotor, electric golf car, forklift, cleanness car, electric wheelchairs
6. E-tool: electric drill, electric saw, lawn mower and so on

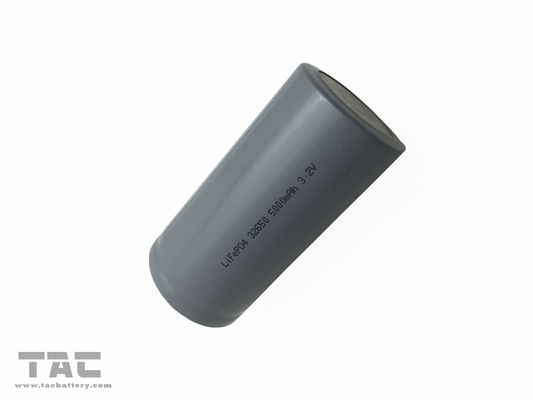

Picture for LifePO4 Battery IFR32650 3.2V 5000mAh:
Rechargeable Cylindrical 3.2V LiFePO4 Battery Production List
Storing the Batteries
The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per three months to prevent over-discharge.
Period of Warranty
The period of warranty is 12 months from the date of shipment.TAC guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.
